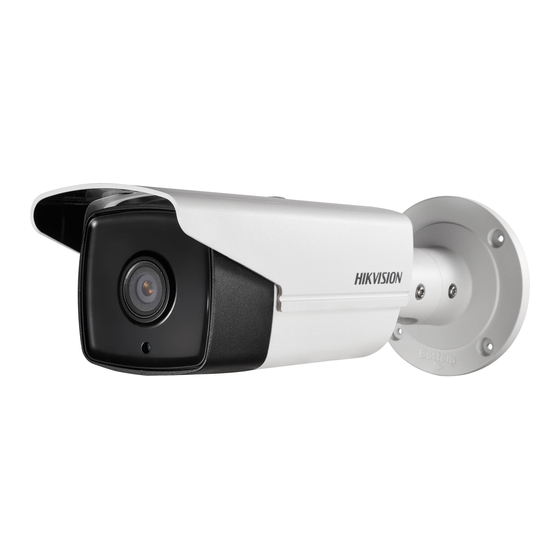

HikVision ANPR Camera - DS-2CD4A26FWD-IZSWG-P
Configuration of Automatic Number Plate Recognition (ANPR) via WEB
Version
Ændring
1.0
Første version
1.1
Mindre korrektioner
Quick Guide
Udført af
Jasper Johansen

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HikVision ANPR DS-2CD4A26FWD-IZSWG-P and is the answer not in the manual?

Questions and answers

Summary of Contents for Aras HikVision ANPR DS-2CD4A26FWD-IZSWG-P

  • Page 1 Quick Guide HikVision ANPR Camera - DS-2CD4A26FWD-IZSWG-P Configuration of Automatic Number Plate Recognition (ANPR) via WEB Version Ændring Udført af Første version Jasper Johansen Mindre korrektioner...

  • Page 2: Table Of Contents

    Depth of focus ................21 Lighting ..................22 License plate width ..............23 Low sharpness ................23 Insufficient light ................24 High Exposure Time ..............24 Supported Countries..............25 2/26 Version 1.0 – Jasper Johansen – 13.03.2019 – ARAS Security A/S...

  • Page 3: Introduction

    (e.g. Internet Explorer) and make sure the firmware version supports ANPR. Preferably use the Firmware version: V5.4.5 build 171222 – downloadable through our website here: https://www.aras.dk/Files/Filer/Downloads/Værktøjer/FF_R3_EN_STD_5.4.5_1 71222_CAR_72bit.zip Figure 1 - Updating the firmware 3/26 Version 1.0 – Jasper Johansen – 13.03.2019 – ARAS Security A/S...

  • Page 4: Detection Configuration

    2. Then go to the Advanced Configuration > Road Traffic option. Select the detection type from the list and enable the selected detection function. Vehicle Detection can be selected here. 4/26 Version 1.0 – Jasper Johansen – 13.03.2019 – ARAS Security A/S...
  • Page 5 3. Then Select the number of lanes and your region in the corresponding dropdown list. Up to 4 lanes and three kinds of regions are selectable. Figure 4 - Select number of lanes and Region. 5/26 Version 1.0 – Jasper Johansen – 13.03.2019 – ARAS Security A/S...
  • Page 6 4. Figure 5 - How to measure a license plate pixel width using the Windows program Paint. • Set the license plate width parameters. 6/26 Version 1.0 – Jasper Johansen – 13.03.2019 – ARAS Security A/S...
  • Page 7 The license plate information will be uploaded after vehicle leaves the detection area. Entrance/Exit: The license plate information will be uploaded as soon as the vehicle is detected. 7/26 Version 1.0 – Jasper Johansen – 13.03.2019 – ARAS Security A/S...
  • Page 8 Figure 8 - Time Interval Settings. 7. (Optional) Arming Schedule is set to 24/7 (always on) by default and can be modified if necessary. Figure 9 - Arming Schedule Configuration 8/26 Version 1.0 – Jasper Johansen – 13.03.2019 – ARAS Security A/S...
  • Page 9 By default the Triggering Source is checked to include All (Whitelist, Blacklist and Other). You can also uncheck All and select a source in the dropdown list. Figure 11 - Triggering Source Configuration 9/26 Version 1.0 – Jasper Johansen – 13.03.2019 – ARAS Security A/S...
  • Page 10 Upload to FTP: Save pictures directly to a FTP server. After checking the Upload to FTP box, you have to setup the FTP server information on the camera. 10/26 Version 1.0 – Jasper Johansen – 13.03.2019 – ARAS Security A/S...

  • Page 11: Uploaded Picture Configuration

    3. Select the information for the text overlay by checking the boxes (Camera no., Camera info, Device No., Capture Time, Plate No.). You can also click the up and down arrows to adjust the sequence of the text. 11/26 Version 1.0 – Jasper Johansen – 13.03.2019 – ARAS Security A/S...
  • Page 12 Capture Time, Plate No., Alarm Type and Camera Name. Use the arrows to adjust the sequence. Figure 15 - Picture Name Configuration 12/26 Version 1.0 – Jasper Johansen – 13.03.2019 – ARAS Security A/S...

  • Page 13: Optional) Overlay Content Configuration

    2.4 Real-time LPR (License Plate Reading) Result Go to Real-time LPR Result to see real-time captured license plate pictures and information, including Capture Time, Plate No., Captured Picture, Country, Lane and Direction. 13/26 Version 1.0 – Jasper Johansen – 13.03.2019 – ARAS Security A/S...
  • Page 14 Hikvision ANPR Configuration – Quick guide Figure 17 - Real-time LPR Result 14/26 Version 1.0 – Jasper Johansen – 13.03.2019 – ARAS Security A/S...

  • Page 15: Result Query

    Go to Playback > Download pictures and select the Vehicle Detection option. Here you can search for license plate pictures and information on the SD card. Figure 18 - Search for License Plate Pictures Figure 19 - Search Results 15/26 Version 1.0 – Jasper Johansen – 13.03.2019 – ARAS Security A/S...

  • Page 16: Parameter Recommendation

    You can also set the parameters manually. Here are some parameter recommendations. 4.1 Exposure Settings • Iris Mode: Auto • Auto Iris Level: 50 • Exposure Time: 1/1000 • Gain: 20 16/26 Version 1.0 – Jasper Johansen – 13.03.2019 – ARAS Security A/S...

  • Page 17: Day/Night Switch

    - When WDR is set to ON, gain level should be set to less than 50. 4.2 Day/Night Switch • Day/Night Switch: Auto • Sensitivity: 4 • Filtering Time: 5 • Smart IR: ON • Mode: Auto 17/26 Version 1.0 – Jasper Johansen – 13.03.2019 – ARAS Security A/S...
  • Page 18 • Triggered by video: The camera switches between the day mode and the night mode according to the video brightness automatically. 18/26 Version 1.0 – Jasper Johansen – 13.03.2019 – ARAS Security A/S...

  • Page 19: Backlight Settings

    Hikvision ANPR Configuration – Quick guide 4.3 Backlight Settings • BLC Area: OFF • WDR: OFF 5. FAQ The troubleshooting flowchart is like this: 19/26 Version 1.0 – Jasper Johansen – 13.03.2019 – ARAS Security A/S...

  • Page 20: License Plate Tilt Angle

    Hikvision ANPR Configuration – Quick guide 5.1 License Plate Tilt Angle Solution: Notice the license plate tilt angle. License plate tilt angle must be within +/- 5 degrees. 20/26 Version 1.0 – Jasper Johansen – 13.03.2019 – ARAS Security A/S...

  • Page 21: Depth Of Focus

    Adjust the focus distance to a proper degree. In these examples you can adjust the focus distance or shutter speed. 21/26 Version 1.0 – Jasper Johansen – 13.03.2019 – ARAS Security A/S...

  • Page 22: Lighting

    Hikvision ANPR Configuration – Quick guide 5.3 Lighting Solution: License plate is overexposed; image parameters should be adjusted. You can either adjust the shutter speed or disable IR-LED (for the night). 22/26 Version 1.0 – Jasper Johansen – 13.03.2019 – ARAS Security A/S...

  • Page 23: License Plate Width

    90 pixels which is not enough. License plate width in the frame should be increased and be at least 130 pixels 5.5 Low sharpness Analysis: With proper sharpness value, license plate number can be clear. 23/26 Version 1.0 – Jasper Johansen – 13.03.2019 – ARAS Security A/S...

  • Page 24: Insufficient Light

    5.7 High Exposure Time Solution: Set the exposure time to 1/250, 1/500 or 1/1000 depending on vehicle speed and lighting. 24/26 Version 1.0 – Jasper Johansen – 13.03.2019 – ARAS Security A/S...

  • Page 25: Supported Countries

    Hikvision ANPR Configuration – Quick guide 6. Supported Countries 25/26 Version 1.0 – Jasper Johansen – 13.03.2019 – ARAS Security A/S...
  • Page 26 Hikvision ANPR Configuration – Quick guide 26/26 Version 1.0 – Jasper Johansen – 13.03.2019 – ARAS Security A/S...
