Data sheet: CO2

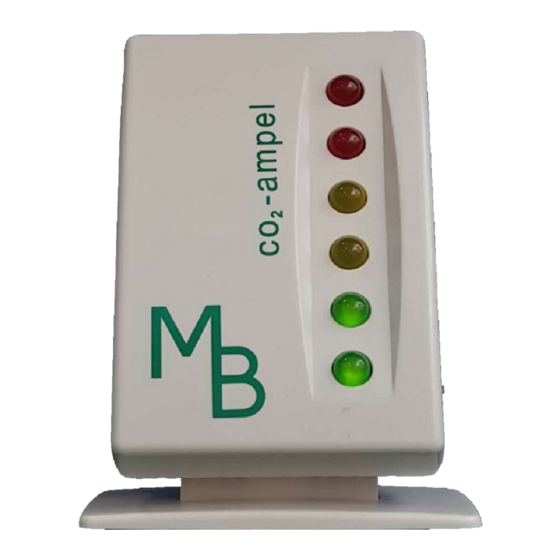

The microprocessor-controlled CO2-measuring instrument is used to measure
the CO2 content of the air in the range of 0 to 3,000 ppm. The measuring sig-
nals are optically
The CO2 content of the air is determined by means of an optical sensor
(NDIR), non-dispersive infrared technology. By using the sensor according to
the dual principle, disturbances of the measurement by pollution and aging
can be excluded as far as possible, so that a long function time of the device
is ensured. Calibration is not necessary under normal operating conditions.
The application of the CO2 traffic light is particularly recommended in
teaching rooms and conference rooms, as controlled ventilation behavior
keeps the maximum CO2 room air concentration within limits, thus increasing
the ability to concentrate. As a signal effect, an acoustic signal tone can be
switched on at a room air concentration of 900/1,200/1,500/1,800 ppm.
Technical Details
Measuring method
Measuring area
Meaesurement prescisio
(25°, 77°F, 3.000ppm)
Responsiveness
Measuring interval
Temperature depen-
dence
Environmental conditi-
ons
Power supply
Outptut
Eletrical connection
Power consumption
Case dimensions
Weight
Montage
Protection class
Meter display
Green 1
Green 1 and Green 2
ellow 1
ellow 1 and ellow 2
Red 1
Red 1 and Red 2
Acoustic signal tone
traffic light housing
displayed by 6
CO -A 100 2, article number 1001
2
Dual Wavelength NDIR,
With ABC- Self-calibration logic (factory setting)
0–3.000 ppm
± 75 ppm or 10% of the reading value (the highest value in each
case)
< 2 Minutes for 90% step by step
2 sec
0,2 % / °C
0 - 50 °C, 0-95% rel. F, non condensing
24 VAC/VDC
0-10 V or 4-20 mA adjustable with jumper
Mains plug (included in scope of delivery)
2,0 W
130 x 85 x 39,5 mm
240 g
Wall mounting or table stand (included)
III according to EN 60730 and IP31 according to EN 60 529
0 up to 600 ppm
600 up to 1.000 ppm
1.000 up to 1.200 ppm
1.200 up to 1.600 ppm
1.600 up to 2.000 ppm
> 2.000 ppm
900/1.200/1.500 (Factory setting)/1.800 ppm
info@mb-systemtechnik.de
CO2-A 100 2
colored LEDs.
