Topgreener TGWF215U2A Installation Instructions

INSTALLATION INSTRUCTIONS
Model: TGWF215U2A
Wi-Fi Tamper Resistant Receptacles
With Dual USB Chargers
FEATURES
• Control your lights with your smart devices without
the need of any hubs.
• Easily configure use through Smart App.
• Save energy by automating the ON/OFF times.
• Compatible with Amazon Alexa, and Google Assistant.
SPECIFICATIONS
Voltage................................................................................ 120V, 60Hz
USB Rating..............................Two USB ports with total 2.4 Amp, 5VDC
Incandescent .............................................................................. 1000W
Electronic Ballast .........................................................................800VA
Resistive ......................................................................................... 15A
Motor............................................................................................ 1/4HP
Protocol ........................................................................ IEEE 802.1b/g/n
Wireless Type ............................................................................ 2.4GHz
Operating Temperature ......................................... 32º - 104ºF (0º-40ºC)
REQUIREMENTS
• Wi-Fi Internet connection of 2.4GHz.
• Smart Device such as a Smart Phone or Tablet with an
operating system of Android ver. 4.1 or higher or iOS 8 of higher.
• Installation of the TOPGREENER Smart App on the Smart Device.
1
WARNING
Turn the POWER OFF at the circuit breaker before
installing the Receptacle.
Read and understand these instructions before installing. This device is intended for installation
in accordance with the National Electric Code and local regulations. It is recommended that a
qualified electrician performs this installation.
Use copper wire only.
Use wires with a minimum temperature rating of 75ºC (167ºF)
FCC Compliance Statement
-2. 4A
2. 5V DC
This device complies with Part 15 of the FCC Rules. Operation is subject to the
CL AS S
following two conditions: 1. This device may not cause interference, and
2. This device must accept any interference received, including interference that may
cause undesired operation.
FCC Radiation Exposure Statement
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated with a
minimum distance of 8in (20cm) between the radiator & your body.
RF Exposure
A distance of 8in (20cm) shall be maintained between the antenna and users, and
the transmitter module may not co-locate with any other transmitter or antenna.

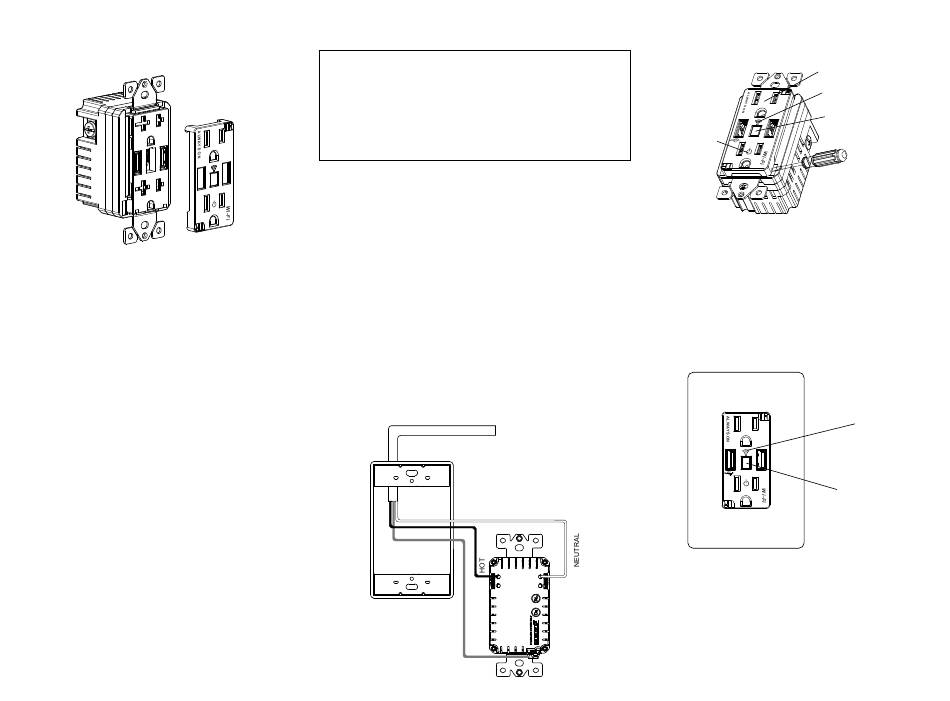

WIRING DIRECTIONS
1. Remove the wall plate.
2. Remove receptacle from wall box and prior to disconnecting
wires, identify the wires and label as needed.
3. Remove wires from existing receptacle.
4. Follow the diagram below to reconnect the receptacle.
POWER
2
CHANGING THE FACE COVER
Always-on Outlet
Controlled
Outlet
CLASS 2. 5VDC-2.4A
To replace the face cover, use a flat screwdriver and insert the tip at the gap
shown in the diagram above and pry cover off. To re-install, simply align the
cover and snap back on.
MANUAL OPERATION
CLASS 2. 5VDC-2.4A
3
LED Indicator
Program Button
LED Indicator
To manually
control the bottom
outlet, press this
power button to
turn On/Off
