Summary of Contents for Woodpeckers LED.D

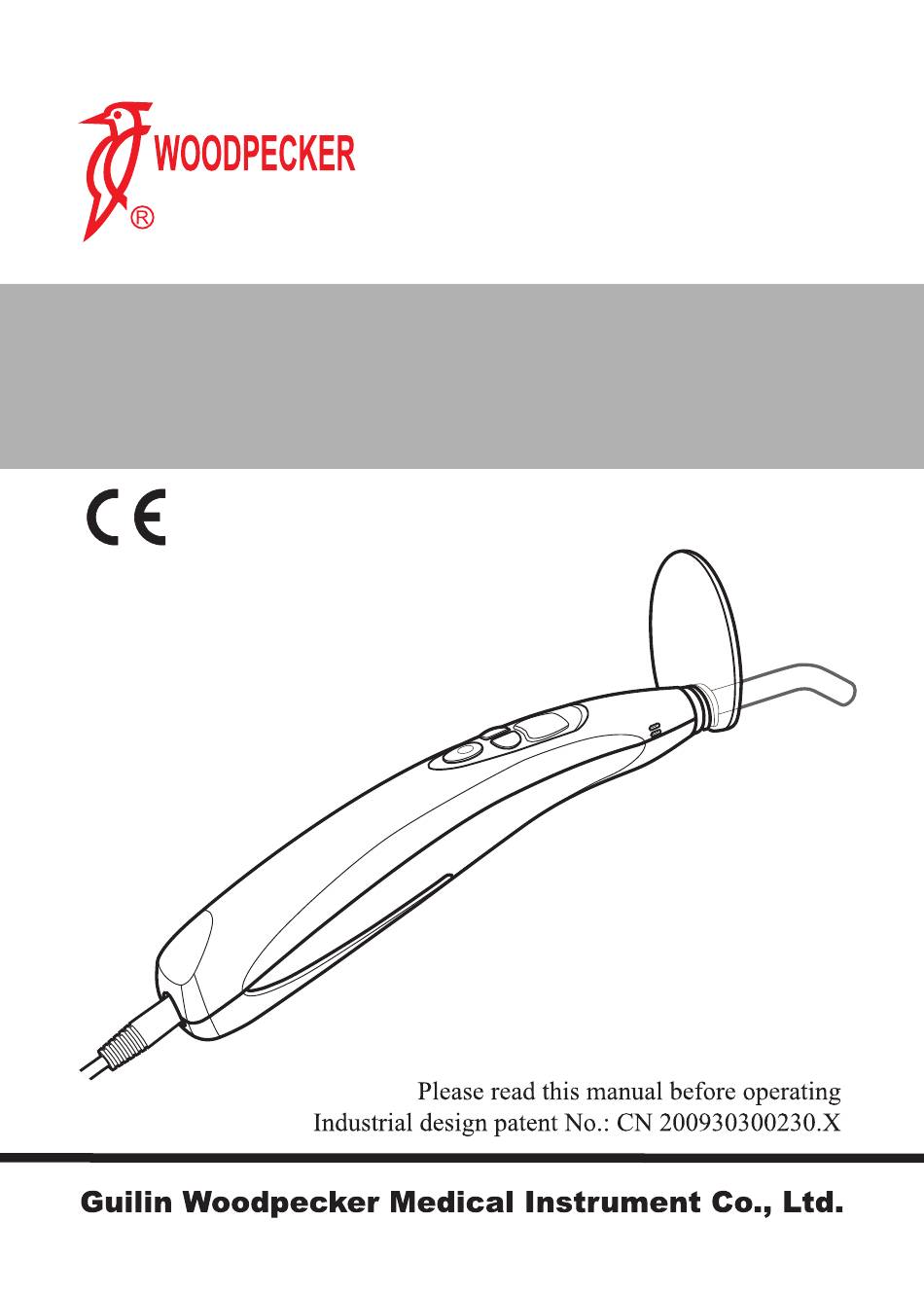

  • Page 1 LED.D Curing light Instruction Manual...

  • Page 2: Table Of Contents

    Content 1.Principle and usage .............. 1 2. Structure and components ..........1 3. Technical specifications ............2 4. Contraindication ..............3 5. Cleaning , Disinfection and Sterilization ......3 6. Cautions ................9 7. Installation ................. 11 8. Operation ................11 9.

  • Page 3: Principle And Usage

    1.Principle and usage 1.1 LED.D adopts the principle of ray radiation to solidify the light- sensitive resin by shooting at it in a short time. 1.2 This product is used for dentistry. It has the function of accelerating dental restoration and solidifying the material of dental whitening.

  • Page 4: Technical Specifications

    3. Technical specifications 3.1 Power supply: 3.1.1 Rechargeable Lithium battery: Battery model: ICR18490 Battery voltage and capacity: 3.6V, 1400mAh The battery includes over-voltage protection, over-current protection and short circuit protection. 3.1.2 Adapter: Input: AC100V-240V 50Hz/60Hz Output: DC5.0V/1A 3.2 Applied part: Optical fiber 3.3 Light source: 3.3.1 3W high power blue light LED 3.3.2 Wave length: 385nm-515nm...

  • Page 5: Contraindication

    4. Contraindication Heart disease patients, pregnant women and children should be cautious to use this equipment. 5. Cleaning , Disinfection and Sterilization The cleaning, disinfection and sterilization of optical fiber is as follow. Unless otherwise stated, they will be hereinafter referred to as “products”. Warnings The use of strong detergent and disinfectant (alkaline pH>9 or acid pH <5) will reduce the life span of products.
  • Page 6 5.1.2 Post-operative treatment The post-operative treatment must be carried out immediately, no later than 30 minutes after the completion of the operation. The steps are as follows: 1. Remove the optical fiber from the Curing light Device,and rinse away the dirt on the surface of product with pure water (or distilled water/ deionized water);...
  • Page 7 Notes a) The cleaning agent does not have to be pure water. It can be distilled water, deionized water or multi-enzyme. But please ensure that the selected cleaning agent is compatible with the product. b) In washing stage, the water temperature should not exceed 45 °C, otherwise the protein will solidify and it would be difficult to remove.
  • Page 8 provided by the equipment manufacturer to familiarize yourself with the disinfection process and precautions. b) With this equipment, cleaning, disinfection and drying will be carried out together. c) Cleaning: (c1) The cleaning procedure should be suitable for the product to be treated. The flushing period should be sufficient (5-10 minutes).
  • Page 9 product against the white paper (white cloth), and then dry the product with filtered dry compressed air (maximum pressure 3 bar). Until no liquid is sprayed onto the white paper (white cloth), the product drying is completed. 2. It can also be dried directly in a medical drying cabinet (or oven). The recommended drying temperature is 80℃~120℃...
  • Page 10 regularly to ensure cleanliness and prevent the introduction of contaminants; d) Avoid contact with parts of different metals when packaging. 5.8 Sterilization Use only the following steam sterilization procedures (fractional pre- vacuum procedure*) for sterilization, and other sterilization procedures are prohibited: 1.

  • Page 11: Cautions

    5.9 Storage 5.9.1 Store in a clean, dry, ventilated, non-corrosive atmosphere with a relative humidity of 10% to 93%, an atmospheric pressure of 70KPa to 106KPa, and a temperature of -20 °C to +55 °C; 5.9.2 After sterilization,the product should be packaged in a medical sterilization bag or a clean sealing container, and stored in a special storage cabinet.
  • Page 12 composite resin to ensure the effect of solidification. 6.4 Avoid direct irradiation to the eye with the blue light. 6.5 Only the original pedestal charger, adapter and Lithium battery could be used, because other brand pedestal charger, adapter and Lithium battery are likely to damage the circuit.

  • Page 13: Installation

    of the manufacturer. 7. Installation 7.1 Take off the red cap from the optical fiber, and then insert the metal part into the front of main unit (make sure to screw the fiber to the end). 7.2 Fix the light hood on the bottom of the optical fiber. 7.3 Battery replacement method: open the battery cover of the main unit, take the battery out, and disconnect the plug slightly.
  • Page 14 indicator will be on when a mode is set. 8.1.1 Full power: the blue light radiates in full power. 8.1.2 Ramping mode: the blue light power increase stronger continually and gets to the highest power 5 seconds later. 8.1.3 Pulse mode: the blue light works on the pulse condition. 8.2 Press the time button to set the solidifying time, 8 working times are available: 5, 10, 15, 20, 25, 30, 35, 40 seconds.

  • Page 15: Maintenance

    in order not to affect the light intensity. 8.11 This equipment will be off automatically if no action occurred within 2 minutes. Turn it on by pressing any button. 8.12 The effective light intensity of this equipment is much higher than halogen lamp curing light.

  • Page 16: Storage And Transportation

    10.3 Avoid solarization and getting wet in rain or snow during transportation. 11. Storage and transportation 11.1 The equipment should be handled carefully and lightly, kept away from the shaking source, installed or stored at shadowy, dry, cool and ventilated places. 11.2 Don't store the equipment together with articles that are combustible, poisonous, caustic, and explosive.

  • Page 17: Packing List

    Faulty Possible cause Solutions “EA”is blinking shown on Change to the original Have used faulty adapter the screen, and the buzzer adapter with output of with excessive output. rings continuously. 5V/1A Reconnect the charger, if ”E1” show again “E1” shown on the screen. Low battery. after 15 minutes please change the battery.

  • Page 18: After Service

    Please dispose according to the local laws. 15. After service From the date this equipment has been sold, we offer two year free repair to the equipment if it has quality problems, please refer to the warranty card for the warranty period. 16.

  • Page 19: Statement

    Used indoor only Keep dry Handle with care Sterilizable up to the temperature specified Temperature limitation for storage Humidity limitation for storage Atmospheric pressure for storage Appliance compliance WEEE directive Follow Instructions for Use Authorised Representative in the EUROPEAN COMMUNITY 18.Statement All rights of modifying the product are reserved to the manufacturer without further notice.

  • Page 20: Emc - Declaration Of Conformity

    INSTRUMENT CO., LTD. The industrial design, inner structure, etc, have claimed for several patents by WOODPECKER, any copy or fake product must take legal responsibilities. 19. EMC - Declaration of conformity The device has been tested and homologated in accordance with EN 60601-1-2 for EMC.
  • Page 24 ZMN-SM-060 V4.2-2020628...
