Diagrama de Conexión. Wiring diagram
L
N
- +
N
L '
1-10V
1-10V
LED
Driver
Load
Diagrama de Detección.Detection Patterns
Ceiling Mounted
16m
52.49t
ROBLAN EUROPA S.A.
Avda. de las Retamas 5. 45950
Casarrubios del Monte
Toledo, Spain
Brown L in
Blue N
Yellow L' out
Black -
Red +
15m
49.2ft
ROBLAN COLOMBIA S.A.S.
NIT. 900.748.926-0
ROBLAN AUSTRAL SPA
ROBLAN UK LTD

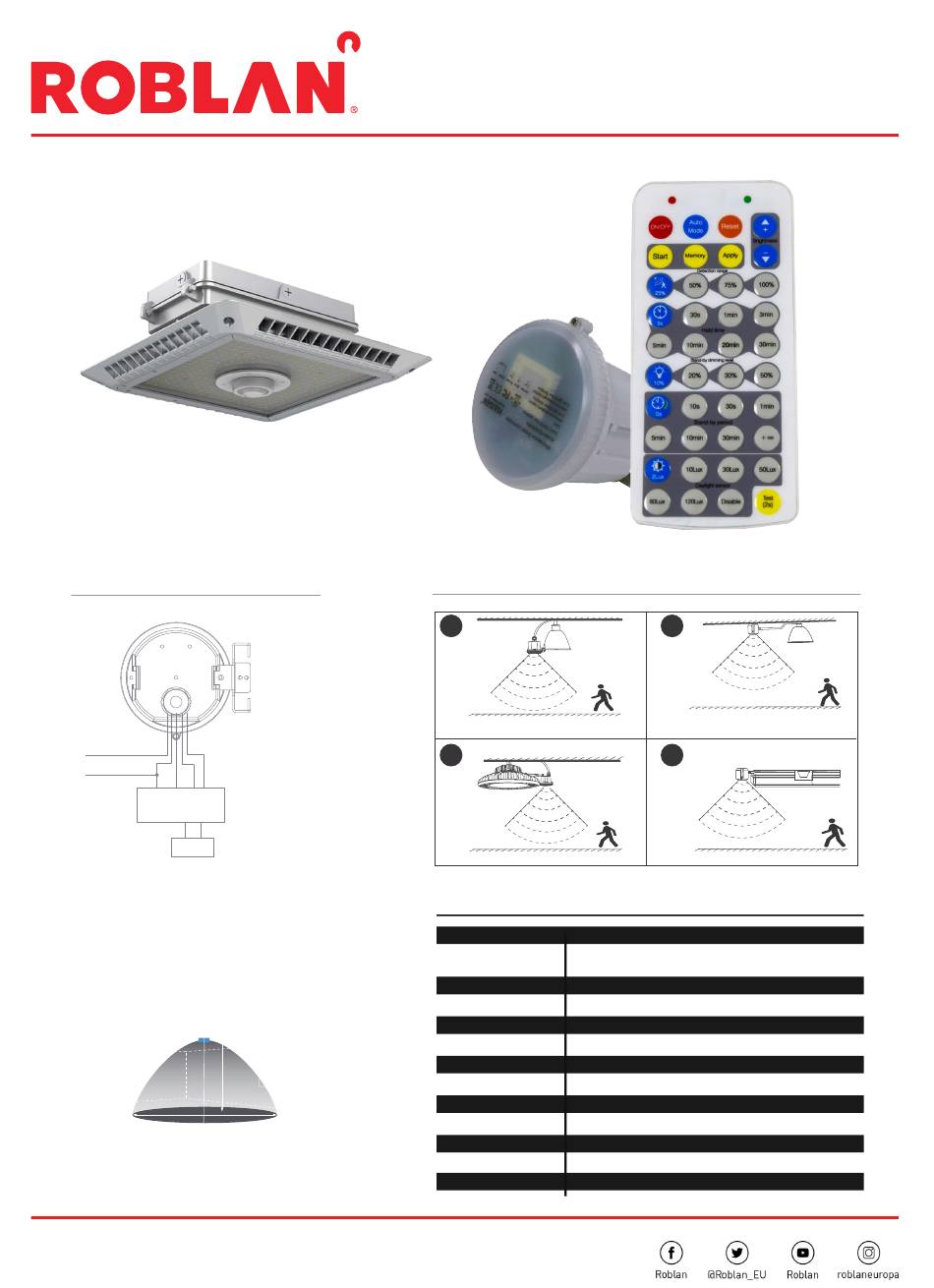

MANUAL DE INSTALACIÓN | INSTALLATION MANUAL
SENSOR Gas Station
Método de Instalación. Installation Method
A
C
Datos Técnicos.Technical data
Operating voltage
120~240 VAC 50/60Hz
Switching capacity
Incandescent lamp: Max:800W (120-220Vac),Max:1000W (220-240Vac)
Controlgear: Max:400W (120-220Vac),Max:800W (220-240Vac)
Stand-by power
<1W
Detection area
25%/50%/75%/100%
Hold time
5s/30s/1min/3min/5min/10min/20min/30min
Stand-by period
0s/10s/30s/1min/5min/10min/30min/+∞
Stand-by dimming level
10%/20%/30%/50%
Daylight threshold
2Lux/10Lux/30Lux/50Lux/80Lux/120Lux/Disable
Microwave frequency
5.8GHz±75MHz
Mounting height
Max.15m/49.2ft
Detection range
Max.ø16m/52.49ft
Operating temperature
-35°C~+55 °C
IP rating
IP65
B
D
www.roblan.com
