OPERATION and PARTS MANUAL

FOR HEAVY DUTY TENSIONERS

EP-1525

MODEL:

MODEL EP-1525

SPECIFICATIONS

Description:

Windlass Tensioner

for

Flat

Package Loads

Strap

Width:

3/4"(19mm) to

1-1/4"(32mm)

Table of Contents

Do you have a question about the EP-1525 and is the answer not in the manual?

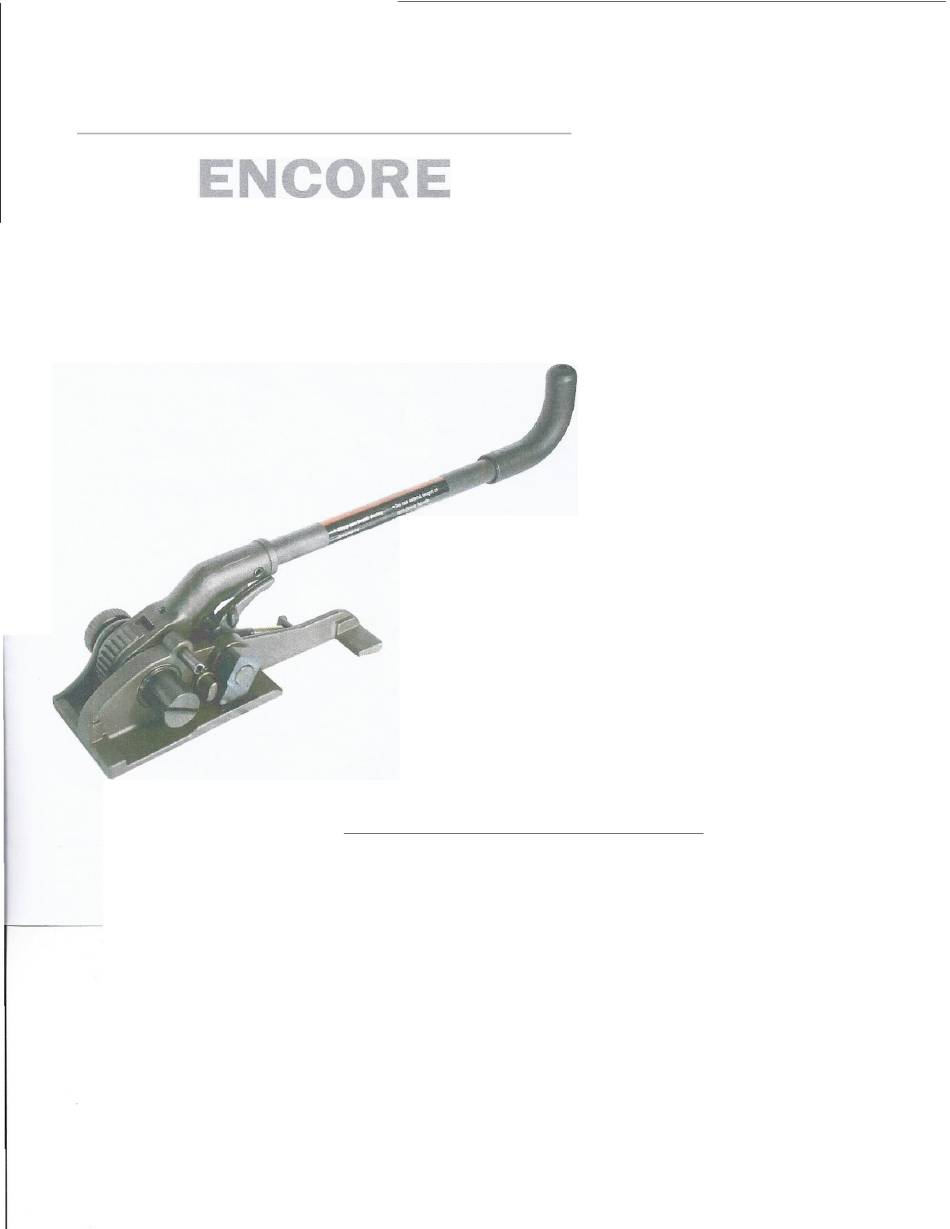

Page 1 OPERATION and PARTS MANUAL FOR HEAVY DUTY TENSIONERS EP-1525 MODEL: MODEL EP-1525 SPECIFICATIONS Description: Windlass Tensioner Flat Package Loads Strap Width: 3/4"(19mm) to 1-1/4"(32mm)
Page 2 OPERATION INSTRUCTIONS OPERATING INSTRUCTIONS LOAD Thread the proper number of heavy duty seals both straps as shown Figure Contact your ENCORE Representative for recommendation. Bend lower strap downward hold seals i n pl a Bend strap upward permit insertion windlass of tensioner.
Page 3 4. Open sealer fully and center jaws of sealer over marks on each seal. Crimp or notch each seal proper number of times by bringing the top handle downward as far as will go. Figure FIGURE 4. Release tensioner from strap by bringing handle down until...
