Summary of Contents for LFA RTP33

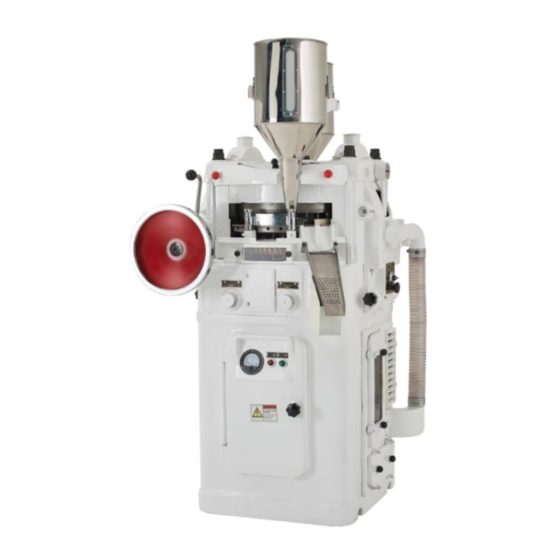

- Page 1 RTP33 ROTARY PELLET PRESS USER MANUAL LFA Tablet Presses is a trading name of LFA Machines Oxford LTD All of the content in this document is covered by copyright ©...
-
Page 2: Table Of Contents
Page 2. Adjusting fill volume Page 4. NOTE - Powder recycling unit Page 4. Adjusting running speed of motor Page 5. Maintenance & Lubrication Page 5.Lubrication Page 5. Maintenance Page 6. Trouble Shooting Page 6. Cautions LFA Machines Oxford LTD ©... -
Page 3: Introduction
Inappropriate operation not recommended in the instructions may damage the machine or cause personal injury. Introduction The RTP33 is a continuous operation automated rotary pellet press that has been designed to produce large commercial quantities of round pellets for the chemical and cermic-processing industries. -
Page 4: Installation
Installation After removing the packing case, locate the RTP33 pellet press in a dry, well ventilated and well lit location. Ensure that it is on a stable, level surface, then secure it with the foundation bolt. To ensure safe operation, this machine must be earthed. -
Page 5: Operation
The amount of powder filled into each pellet is adjusted by turning the dial numbered “0-45” that is located on the control panel. Each gradation equals a 0.01mm change in thickness. Turn- ing it clockwise increases the fill volume; turning anti-clockwise reduces it. LFA Machines Oxford LTD ©... -
Page 6: Note - Powder Recycling Unit
NOTE - POWDER RECYCLING UNIT The powder suction unit deposits the powder it collects in an aluminium box. Empty this box pe- riodically to prevent overflow. ADJUSTING RUNNING SPEED OF MOTOR The motor and associated controls are at the base of the machine casing. Motor running speed is adjusted by turning the semi-circular shaped handle. -
Page 7: Maintenance & Lubrication
This is important, to prevent corrosion. Clean the entire machine thoroughly and cover with grease for protection against moisture. The cover with a cloth to protect against dust. LFA Machines Oxford LTD ©... -
Page 8: Trouble Shooting
If blockage or other problems arise during operation, never remove tablets by hand when the machine is running, as this may cause personal injury. • Avoid wearing loose clothing when operating the machine. • If the machine becomes damaged, stop using it at once until properly repaired. LFA Machines Oxford LTD ©...
