P4GU V

4G MOBILE NETWORK GATEWAY

EQUIPMENT FOR ELEVATORS

NT_ANEP_P4GU_VoLTE_EN_12-05-2022

LTE

www.anepstore.com

Table of Contents

Need help?

Do you have a question about the P4GU VoLTE and is the answer not in the manual?

Questions and answers

Summary of Contents for ANEP P4GU VoLTE

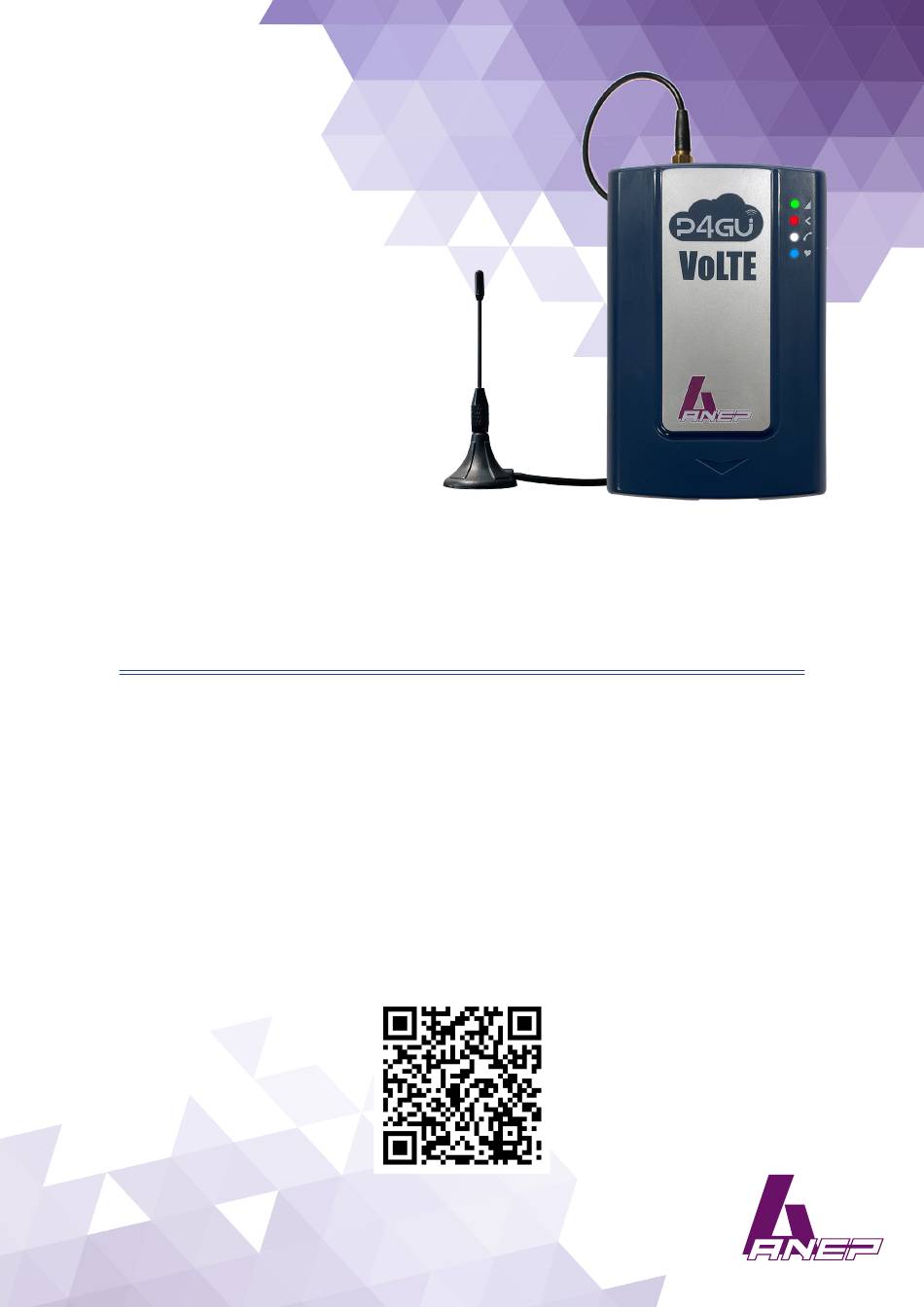

Page 1 P4GU V 4G MOBILE NETWORK GATEWAY 4G MOBILE NETWORK GATEWAY EQUIPMENT FOR ELEVATORS EQUIPMENT FOR ELEVATORS NT_ANEP_P4GU_VoLTE_EN_12-05-2022 www.anepstore.com...
Page 2: Table Of Contents
SUMMARY SUMMARY ................... GENERAL WARNINGS ............... General Remarks ................DESCRIPTION ..................Main Features ................LEDS ....................INSTALLING ..................Tips for installation ................ Consumption table ................ Fixation ..................Inserting the SIM card ..............Installating the antenna ..............Remote alarm ................Connecting the power supply / bettery ......... STARTING ...................
Page 3: Summary
Reading / Setting the type of network ..........Definition / Deletion / Reading of the notification number ....Definition / Reading of the Tel. ANEP protocol ....... Entering / Reading ANEP protocol identifier ........Enabling / Disabling the battery charge level check .......
Page 4 SUMMARY ..............ADJUSTING THE GAIN ........ AUTOMATIC PHONE NUMBER CONVERTER ............MEASURE THE SIGNAL LEVEL BATTERY ALERT ........................ EXTERNAL POWER FAILURE MONITORING ......READING ADVANCED GATEWAY PARAMETERS ............BATTERY STATUS READING REBOOT ....................FACTORY RESET ................SERVICE ....................SIGNALING ..................TONES .....................
Page 5: General Warnings
• The appliance must be intended EXCLUSIVELY for the use for which it was been designed and ANEP cannot be held responsible for any damage resulting from improper use. • The product has been designed in compliance with the standards, the installation must be carried out inside compliant installations meeting appropriate standards.
Page 6: Description
DESCRIPTION P4GU VoLTE is a device which is connected directly to a fixed telephone or a remote alarm, makes it possible to make and receive calls via the mobile network. For operation, a SIM card is required. P4GU VoLTE has an internal backup battery (to be connected)
Page 7: Main Features
• Dimensions: 140 x 96 x 28mm • Weight: 220g LEDS The P4GU VoLTE device has 4 LEDs visible on the outside. For the meaning of the flashing of each of the LEDs, consult the chapter "Signals" (see pages 39 to 43).
Page 8 > Remove the cover by acting on the upper side. LED green GSM network intensity LED red device status LED white line status LED blue power supply status ANTENNA cable SMA connector Slot for the SIM card (standard SIM format 2FF) 2G, 3G, 4G network reception level LED (green) Device status LED (red) Line status LED (white)
Page 9: Tips For Installation
INSTALLATION Tips for Installation • The P4GU VoLTE gateway must be installed in a place where the radio signal is sufficient for its correct use. In case that it is impossible to have of the network with the 2m antenna, ANEP can optionally provide a 10 m antenna (ref.
Page 10 • Make two holes of ø5 mm in diameter on the wall spaced between them by 50 mm. • Insert the 2 dowels and tighten the screw up to 5 mm away from the wall. • Insert the P4GU VoLTE device, through the two posterior eyelets, on the 2 screws from the wall.
Page 11 INSTALLATION SIM CARD (STANDARD SIZE 2FF) Before inserting the SIM card, make sure you are electrostatically discharged and that the device is switched off to avoid damaging it. Use all precautions to avoid electrostatic discharge. ATTENTION The SIM card must have the PIN CODE DEACTIVATED. If the SIM card has the PIN CODE activated, it must be deactivated using a cell phone Gently push the front...
Page 12 SMA connector (A in picture page 8) To ensure proper operation of the correct operation of the P4GU VoLTE, place the magnetic base antenna so that there are no metal structures that structures that may mask the signal.
Page 13 INSTALLATION (continued) TELEALARM Plug throughof the RJ11 connector Scheme (D see photo page 8) the P4GU VoLTE device to a landline phone connection or a remote alarm. range ANEP Connect via the TEL terminal (F see photo page 8)
Page 14 INSTALLATION (continued) POWER SUPPLY by TRANSFO 230Vac / 12Vcc Power supply by external adapter 230Vac / 12Vcc on terminal E Connect the external adapter to the E input (see photo on page 8) Nota : It is recommended to provide upstream of the product Block an appropriate electrical protection...
Page 15: Starting
• If the red device status LED flashes faster and stays on longer (see page 42), the device is not properly connected to the 2G, 3G or 4G network • Unplug the P4GU VoLTE and check if the SIM card is correctly inserted or not blocked by the PIN code.
Page 16 PROGRAMMING BY PHONE Allows the customization of the device according to your own needs. Programming can be done manually using a multi-frequency telephone equipped with a keyboard. It is possible to program : = (pick up the phone) • The configuration of the roaming service •...
Page 17: Programming By Phone
PHONE PROGRAMMING BY Function format Descriptions / Informations Note: In the "Programming by telephone" table the value programmed at the factory is shown in bold type. X : option from 1 to 2 1 = mobile network line tones 2 = line tones generated by 4G VoLTE HOW TO USE (recommended mode for remote alarms or other other devices that perform line tone monitoring)
Page 18: Programming Password
PHONE PROGRAMMING BY Function format Descriptions / Informations X: option, from 0 to 128 0 = all codecs enabled 1 = RF enabled 2 = EFR enabled SETTING 4 = RH enabled CALLS CODEC 8 = AMR-FR enabled (VOICE) 16 = AMR-HR enabled 32 = GSM-AMR-WB enabled 64 = UMTS-AMR-NB enabled 128 = UMTS-AMR-WB enabled...
Page 19 ANEP PROTOCOL CAPTURE X...X X...X: identification number of the BOX IDENTIFIER X...X# (8 digits), or other ANEP product ANEP PROTOCOL X: Choice of 0 to 1 0 = Alert enabled (default) 1 = Alert disabled X: Choice of 0 to 7 0 = 7 hour 1 = 6:30 a.m.
Page 20: Factory Reset
PHONE PROGRAMMING BY Function format Descriptions / Informations X: choice from 0 to 1 LINE VOLTAGE 0 = 36 VDC TELEPHONE 1 = 52 VDC XX: minutes of external power failure, from 01 to 99 CONTROL YY: External power recovery minutes, from 01 to 99 XXYY# BREAKDOWN FOOD...
Page 21: Programming By Sms
PROGRAMMING BY SMS Programming via SMS can be performed from any mobile phone or other device capable of sending SMS. If the administrator number has been configured, programming via SMS is allowed only by this phone number. An SMS notification from programming confirmation is transmitted from the P4GU to the number that sent the SMS from...
Page 22 Answer (example) READING MODE AN-GWU*0#2R AN?GWU*0#21# OF USE => The P4GU VoLTE is in mode 1 ACTIVATING AN-GWU*0#5*1# Enabled (default) ROAMING Disabled XXX: MCC of your telephone operator Y...Y: MNC of your telephone operator...
Page 23: Programming Password Settings
2: all codecs are enabled, except AMR WB Answer (example) AN-GWU* CALL CODEC AN?GWU*0#15*2*# READING (VOICE) 0#15R => 2 = EFR and HR activated / ANEP DEFINITION AN-GWU* X..X: telephone number with country code (if OF THE 0#18*X..X defined, this is the only number from which...
Page 24 PROGRAMMATION PAR Function format Descriptions / Informations AN-GWU* ENTERING THE COUPLING CALL NUMBER 0#25* X...X: programming password Y: table position, from 1 to 6 X..X*Y* Z...Z: telephone number Z..Z*Z..Z# AN-GWU DELETING THE PAIRING CALL NUMBER AUTOMATIC X...X: programming password 0#25* DIALED PHONE Y: table position, from 1 to 6 X..X...
Page 25: Reading / Setting The Type Of Network
TEL NUMBER. receive the ANEP protocol 0#42R ANEP PROTOCOL AN-GWU* X...X: identification number of the BOX ANEP PROTOCOL 0#44* (8 digits), or other ANEP product IDENTIFIER ENTRY X..X*X..X# READ ANEP Reading the ANEP product identification AN-GWU* PROTOCOL number (8 digits)
Page 26: Voltage / Reading Telephone Line Voltage
PROGRAMMING BY Function format Descriptions / Informations DISABLE BATTERY AN-GWU* Disabling the battery charge level control (of CHARGE LEVEL the P4GU gateway) 0#51# CONTROL X: Choice of 0 to 1 AN-GWU* 0 = Alert enabled (default) 0#5x# 1 = Alert disabled X: Choice of 0 to 7 0 = 7 hour 1 = 6:30 a.m.
Page 27: Reading Battery Status
PROGRAMMING BY Function format Descriptions / Informations 2 sms : AN?GWU * 0#904G-NET * 209110501 Jun 29 2021 09:07:57 ELS61-E R2 IDENTIFICATION REVISION 02.000 TYPE OF AN-GWU* A-REVISION 01.000.02 GATEWAY 0#90# 35835101425588 ATC:4G MCC:208 MNC: 20 TAC: 79BC Cell: 7BCCE01 RSRP:-84 RSRQ:-7.5 POW ONH RM:NO# Answer (example) AN?GWU*0#91*x#...
Page 28 PROGRAMMING BY Function format Descriptions / Informations Answer (example) AN-GWU* 0087 READ MODE URI AN?GWU 0#0087 0#0087R X=1 SIP URI AN-GWU* WRITING X=1 SIP URI 0087 URI MODE X=2 TEL URI 0#0087*X# Answer (example) AN-GWU* READING AN?GWU objcobytel.com#F#G# APN SELECTED 0#RCRFRG x: Operator APN (APN = Operator Network Access Point)
Page 29 (1)(2) GAIN SETTINGS CODE CODE See programming tables by PHONE These settings are used to adjust the gain of transmission and reception. WARNING The values saved by default are the optimal ones, modify them only if it is really necessary. Transmission By default : •...
Page 30 (3) AUTOMATIC CONVERTER OF THE TELEPHONE NUMBER DIALED (ROUTING AND COUPLING) CODE CODE See programming tables by PHONE If the function is activated, the gateway, instead of calling the telephone number dialed from the connected telephone (BOX-TA remote alarm, or other device telephone), forwards the call to a previously defined number.
Page 31 When you select a number that is not in the "Selected phone number" column, the gateway sends a call to the first phone number in the "Predefined phone number" column. Automatic phone number matching • Enter the number to call in a slot in the table using the programming code 26. •...
Page 32 (4) SIGNAL LEVEL MEASUREMENT CODE See programming tables by PHONE This procedure allows you to check the level of the 2G (GSM), 3G (UMTS) or 4G (LTE) signal via your telephone, or by SMS. By telephone : • Pick up the handset and dial ⁕⁕ 30# •...
Page 33: Battery Alert
CODE CODE See programming tables by PHONE If the low battery check is activated, the P4GU VoLTE checks the charge level of the latter at all times.. When the charge level drops below the level necessary to guarantee 4 hours of autonomy, in standby, a warning message is sent to a pre-recorded number.
Page 34 (6) EXTERNAL POWER FAILURE CHECK CODE See programming tables by PHONE If the external power supply failure check is activated, the gateway constantly checks the external power supply (230Vac or 12Vdc) If the external power grid failure lasts longer than the preset time interval, a notification SMS is sent with the following text message: «External Power Failure»...
Page 35: Reading Advanced Gateway Parameters
: AN-GWU Beginning of the programming chain xxx# password string (default xxx = 0) ⁕ P4GU VoLTE Will send one or two text messages to the number that sent the request, with the following data: Values (the values shown are...
Page 36: Battery Status Reading
See programming tables by PHONE If the battery charge level control is activated, you can interrogate the P4GU VoLTE device for battery status. This procedure allows you to check the battery status through your telephone, or by return text. The gateway sends a number of short tones corresponding to the number...
Page 37: Reboot
PHONE It is possible, at any time, by telephone or SMS to restart the P4GU VoLTE without turning off the power. Note: Restarting the P4GU VoLTE does not change any programming. (10) RESET TO FACTORY SETTINGS It is possible to return, at any time, to the factory settings using the code:...
Page 38: Service
SERVICES Incoming calls Allows you to answer incoming calls. When receiving a phone call, the line status LED (white) will briefly flash 4times every 4 seconds as described in chapter "Signals" (see page 39) and the telephone will ring.Décrochez le combiné pour répondre à l'appel. The line status LED (white) and the device status LED (red) will light up, and communication with the caller will be established.
Page 39 SIGNALS TONE Invitation to Dial (Continuous Tone) : 0" 1" 2" 3" 4" 5" Indicates that the device is ready to receive the selection. Deterrence : 0" 1" 2" 3" 4" 5" Indicates that there is a delay in programming selection, that the caller has hung up or an unauthorized access has been made.
Page 40: Call Signaling
Signal quality : 0" 1" 2" 3" 4" 5" Indicates that the signal level is high. Signal quality: 0" 1" 2" 3" 4" 5" Indicates the absence of the signal. CALL SIGNALING 0" 1" 2" 3" 4" 5" Indicates the arrival of an incoming call. LED (GREEN) 2G, 3G, 4G network strength (without VoLTE) Indicates no signal.
Page 41 LED (GREEN) 4G VoLTE network strength 6" 7" 8" 9" 10" 0" 1" 2" 3" 4" 5" Indicates no signal. 6" 7" 8" 9" 10" 0" 1" 2" 3" 4" 5" Indicates that the signal level is low. 0" 1" 2"...
Page 42: Red - Device Status
LED (RED) device Status 0" 1" 2" 3" 4" 5" When lit, it indicates that a registration of the device to the network is in progress, then it indicates that the device is not correctly registered to the network, that the SIM card is protected by the PIN or other problems.
Page 43 0" 1" 2" 3" 4" 5" 6" 7" 8" 9" 10" Indicates power is on and battery charge is high. 0" 1" 2" 3" 4" 5" 6" 7" 8" 9" 10" Indicates power is on and battery charge is medium. 6"...
Page 44: Problem Resolution
PROBLEM RESOLUTION This chapter recalls the most common problems that can occur. Before calling technical assistance, carry out these simple checks. Condition Causes Solutions All LEDs are off P4GU not powered Check Power The SIM card is not Correctly insert the inserted or incorrectly SIM card in its inserted...
Page 45 NOTES NT_ANEP_P4GU_VoLTE_EN_12-05-2022 NT_ANEP_P3GU_07-12-2018 45 / 48...
Page 46 NOTES NT_ANEP_P4GU_VoLTE_EN_12-05-2022 NT_ANEP_P3GU_07-12-2018 46 / 48...
Page 47: Warranty
ANEP cannot under any circumstances be held liable for any loss of data, as well as any particular damage or incident, resulting from poor implementation or non- compliant use of the product.
Page 48 TH E AF T ER SALES SER VI CE I S P R OV I DE D B Y 4 bis rue de Paris 94470 Boissy-Saint-Léger +33 1 45 98 34 44 Website : www.anepstore.com NT_ANEP_P4GU_VoLTE_EN_12-05-2022...
