- Page 1 1.03 mobile device to remotly control your home © 2010, 2011 Cybrotech Ltd...
- Page 2 Index............................1 Description ..........................2 Commands ..........................3 Read inputs by message ....................3 Activate relay by message ....................3 Activate relay by incoming call..................4 Outgoing alarm message....................4 Outgoing alarm call ......................6 Phone authorization ......................6 Settings and status ......................7 Applications ..........................
- Page 3 GSM-SA stand-alone modem provides the following functions: activate relay by a call (free of charge, call is denied) activate relay by a message call predefined number when condition is met send alarm message to predefined number when condition is met...
- Page 4 Send command using SMS message (standard text, not multimedia or e-mail). Module will send a reply soon. Multiple commands are separated by space. ix0, ix1, ix2, - binary inputs, 0-open, 1-closed iw0, iw1, iw2, - analog inputs, for 0..10V readout is 0..1023 send: ix0=? ix1=? iw2=? iw3=? reply:...
- Page 5 qx0p, qx1p - pulse output for a specified time send: qx0p reply: qx0p ok message received 2 seconds Relay is unconditionally activated for 2 seconds. If already set, it will go off after specified time. pulse - pulse length (default is 2) [seconds] send: pulse=10 reply:...
- Page 6 smsalarm - select inputs which will trigger an alarm: ix0 close ix1 close ix2 close ix3 close ix0 open ix1 open ix2 open ix3 open iw0 hi limit iw1 hi limit 1024 iw2 hi limit 2048 iw3 hi limit 4096 iw0 lo limit 8192 iw1 lo limit...
- Page 7 Example 2: To send separate hi and lo messages, wire two inputs together: Configuration word is 256 (iw0 hi limit) + 8192 (iw1 lo limit) = 8448. send: smsalarm=8448 iw0hi=850 iw1lo=5 sms0="Alarm: water high" sms1="Alarm: water low" reply: smsalarm=8448 ok iw0hi=850 ok iw1lo=5 ok sms0="Alarm: water high" ok sms1="Alarm: water low" ok alarm: Alarm: water high voicealarm...
- Page 8 deny - delete number from list of authorized numbers send: deny +385912345678 reply: deny +385912345678 ok allowcall - authorize next incoming call (call must come within 5 minutes) send: allowcall reply: allowcall +385912345678 ok error: allowcall timeout check - verify if number is authorized send: check +385912345678 reply:...

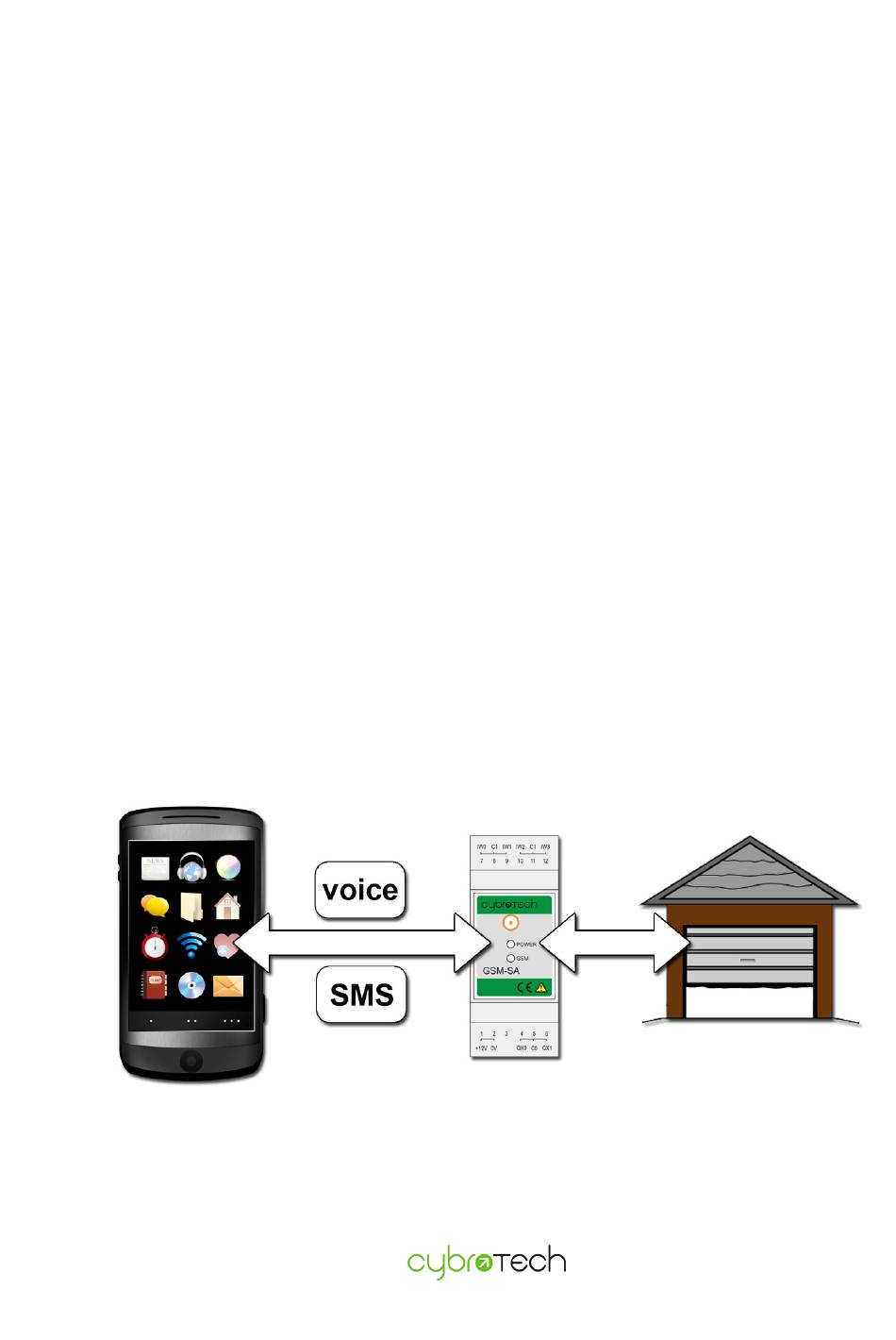

- Page 9 Cool factor: high (watch your neighbours turn green) What do you need: garage with motorized door, GSM-SA, SIM card How to connect: connect wires from QX0 and C0 to button which operate door. Polarity doesn't matter. Don't forget to connect 12V power supply.
- Page 10 Other ideas: you may equally well connect GSM-SA to control the power supply of heating system. Knowledge: moderate Usefulness: high (hopefully you'll never know how much) Cool factor: low (good alarm system keeps low profile)
- Page 11 230V contactor output using 230V bistable relay When operating on internal antenna, it is recommended to mount GSM-SA away from other electronic devices. Placing as high as possible will provide a better signal, resulting in more stable communication.
