Risco USB232B Quick Installation Manual

USB Adaptor - Quick Installation Guide

General

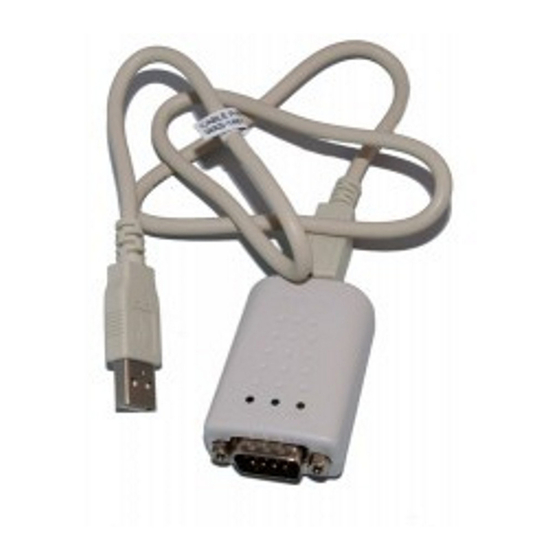

The USB 232 adaptor converts data between the USB protocol and RISCO Group panels,
ProSYS or Orbit 14 / 6 using the suitable local bus adaptor (supplied).

Hardware and Software Installation

STEP 1. - Insert the USB232B Set Up CD (supplied) into your computer CD-ROM drive.
STEP 2. - Connect the USB232B converter to your PC's USB port.
The setup program will begin to run automatically.
Note: When using Windows XP select the No, not this time option from the Found New
Hardware Wizard and click the Next button. On other Microsoft Windows operating systems
(Win 98, 2000, NT) proceed to STEP 3.
STEP 3. - Select Install from a list of specific location and click the Next button.
STEP 4. - Select Search removable media and click the Next button.
STEP 5. - Windows has finished installing the hardware. Click the Finish button.
STEP 6. - Once done with the installation of the hardware, you will be prompted to complete
the installation of the software according to the following steps (see the above Note if you are
using Windows XP operating system):
1. Select Install from a list of specific location and click the Next button.
2. Select Search removable media and click the Next button.
3. Windows has finished installing the software. Click the Finish button.
STEP 7. - Make sure the Driver Software installation is accomplished according to the
following:
1. Connect the USB232B unit into the USB port of the computer and then click:
Start ->Settings -> Control Panel -> System ->Hardware->Device Manager
2. Verify that the USB Serial Port is listed at Ports (COM & LPT).
STEP 8. - Changing the COM Port Settings
1. From Device Manager, select the USB serial port COM option.
2. Choose the Port Settings tab, and then click Advanced.
3. Under the BM options, choose Latency Timer. Set the timer to [1] and click the OK
button.
STEP 9. - Reboot your system.
Fore more information about your USB Converter, please refer to the User Manual (supplied with
the installation CD)
