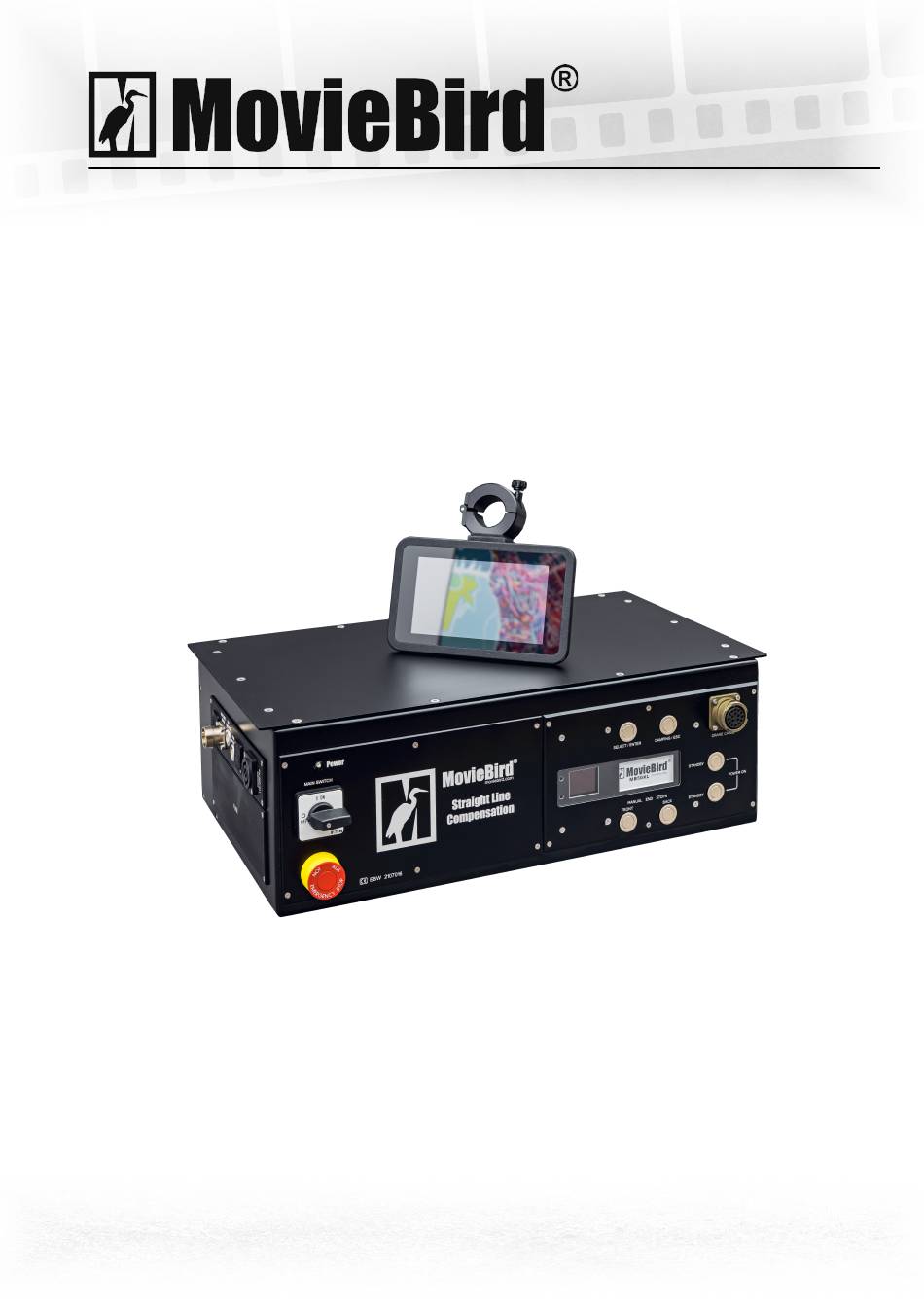

- Page 1 Romualda Traugutta 5, 45-667 Opole, Poland Phone: +48 77 456 23 53 English and German only: +48 502 771 907 Web: moviebird.com. E-mail: info@moviebird.com MovieBird Straight Line Compensation (SLC) – Operating Manual...
- Page 2 3 – Arm extension [mm] 4 – Tilt axis angle 5 – PAN axis angle 6 – Soft Stop level indicator (adjustable via SLC BOX buttons) 7 – Damping level slider 8 – STANDBY mode switch 9 – Mode selection tab/indicator...
- Page 3 - Normal mode Standard arm operation (without SLC functionality, just like any other MovieBird crane) - Vertical mode Pic_2 SLC mode allowing the arm to follow a vertical cylinder defined by 2 points (pic_2). - 3D mode...
- Page 4 MOVIEBIRD ® SLC - Operating Manual Pic_3 SLC mode allowing the arm to follow a planar surface defined by 3 points (pic_3).
- Page 5 • Going back to STANDBY will erase all P1/P2/P3 points and switch the arm to „Learning Mode’ • CAUTION! :Going back from Normal Mode to any of the SLC modes will result in the arm automatically moving to the defined Surface of operation. If the defined Surface is beyond current arm position, the operator will need to press and hold the „W”...
