Fresco 4 Video Wall
A C - F R E S C O - C A P - 4 v i d e o wa l l p r o c e s s o r
Quick Start Guide
the Fresco 4 enables you to process 4K video throughout your video wall. AVPRo
EDge included robust scaling features inside this processor that allows you to not
only input 18G
4K60 signals, but output 4k 444 to each display.
bps
This Quickstart Guide Will be going over:
- Installation
Installation
- hang the panels/displays
- plug in power to the fresco
- Connect the source to the fresco HDMI input
- output 4 hmdi cables to desired displays
- Launch the Fresco PC Software and connect to the Fresco Processor
- input measurements and select output resolution then hit generate video wall!

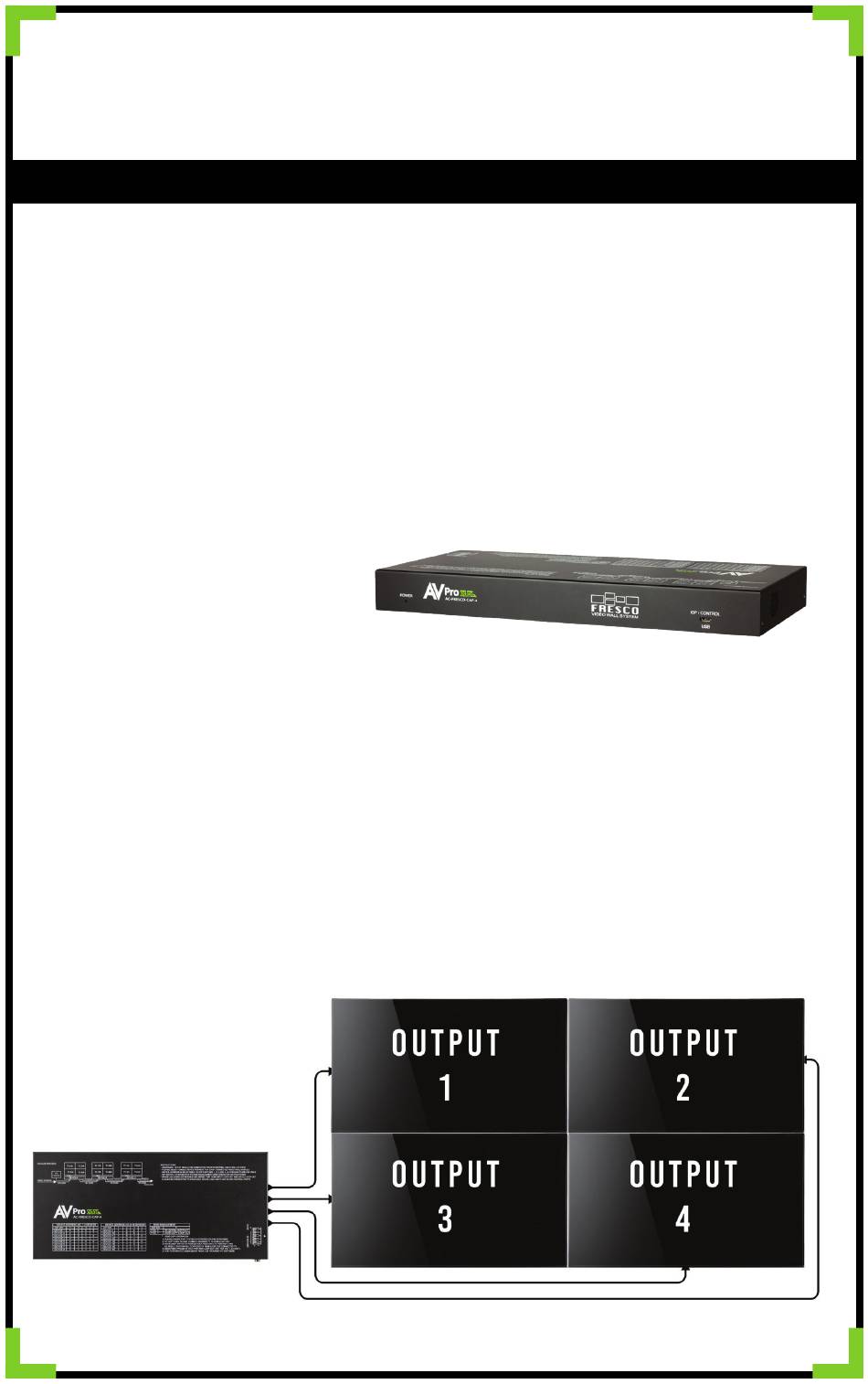

Fresco 4 display layout example:
Advertisement
Table of Contents
Summary of Contents for Medin AC-FRESCO-CAP-4
- Page 1 Fresco 4 Video Wall A C - F R E S C O - C A P - 4 v i d e o wa l l p r o c e s s o r Quick Start Guide the Fresco 4 enables you to process 4K video throughout your video wall. AVPRo EDge included robust scaling features inside this processor that allows you to not only input 18G 4K60 signals, but output 4k 444 to each display.
- Page 2 connect/Control Connect: Network/Lan •Click on box above NETWORK/LAN •Default IP = 192.168.001.239o (Changing the IP address requires using the web interface or sending direct control commands via an RS-232 Connection and Terminal app. #baud rate 57,600) •Click the “CONNECT TO FRESCO” button underneath NETWORK/LAN settings Connect: USB/RS-232 •Click on the box above USB/RS-232.
- Page 3 Generate video wall Generate Video Wall Click on “ ”. For a more in depth calibration click on advanced settings. You can also set the output resolution to desired setting. Flipping Panels •After generating the video wall, open the ADVANCED page •Right click on the desired display and select 180 °...
