This document describes how to install red, blue, green, or infrared filters in the iVu Series sensor.
Model
Description
FLTMR
Red filter kit
FLTMI
IR Filter kit
FLTMB
Blue filter kit
FLTMG
Green filter kit
Installing Filters on the iVu Series Sensor

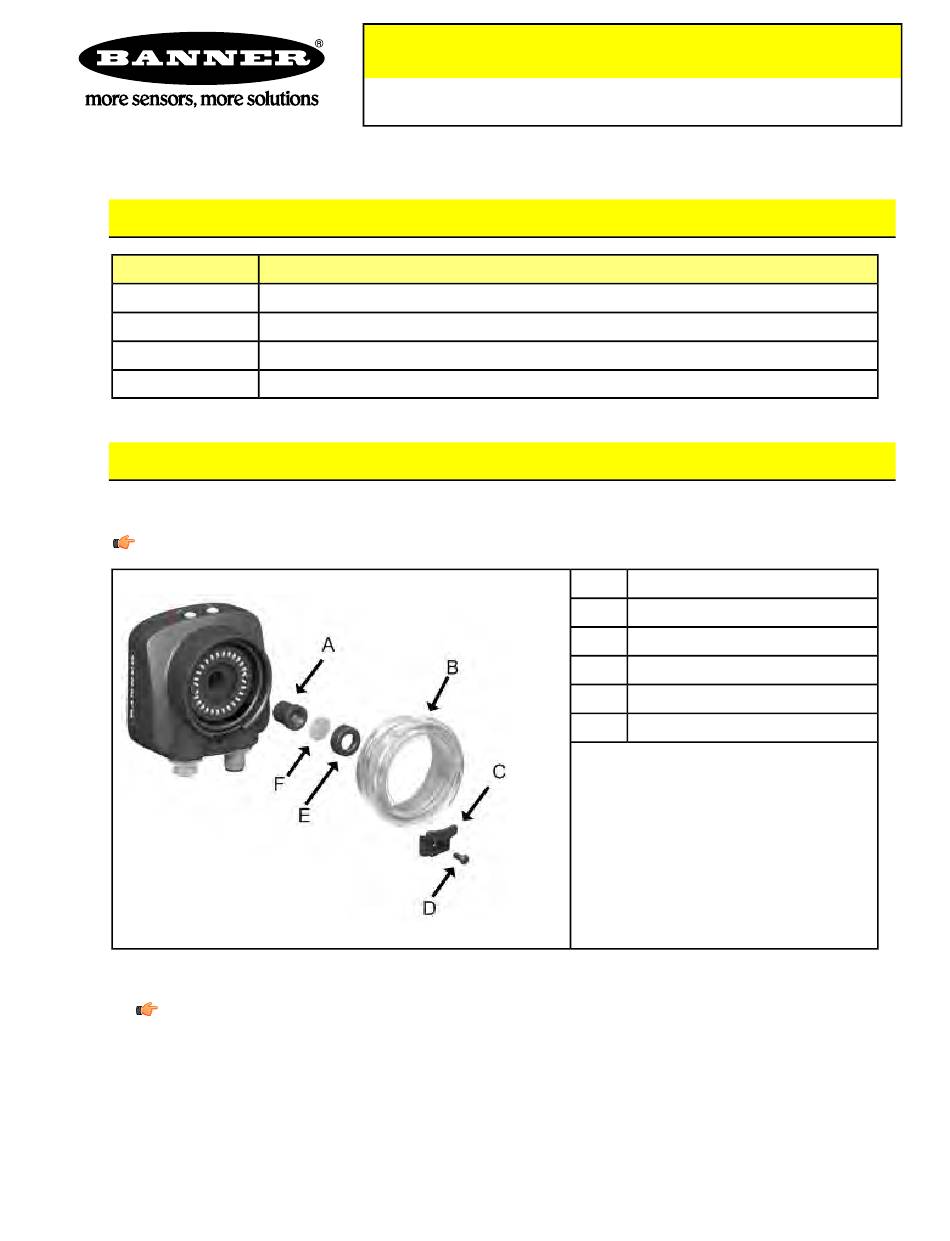

To install a filter on the iVu Series sensor, use the illustration as a guide and follow the steps listed below.
Note: Failure to follow these instructions can cause damage to your iVu Series sensor.
1. Use the 1/16" hex key to remove the Focusing Window locking screw (D).
Note: The Locking Clip (C) inserts in a groove near the top of the Focusing Window. When removing
the window, the Locking Clip will be loose. Be careful not to lose the clip while removing the window.
2. Unscrew the Focusing Window by turning it clockwise approximately 5 complete turns or until the Focusing
Window disengages from the light/lens assembly.
Buy: www.ValinOnline.com | Phone 844-385-3099 | Email: CustomerService@valin.com
Filter Kits
For use with the iVu Series
Models
Image Sensor
TG
A
Lens
B
Focusing Window
C
Locking Clip
D
Locking Screw
E
Filter Cap
F
Filter
Advertisement
Summary of Contents for Banner FLTMR
- Page 1 For use with the iVu Series Image Sensor This document describes how to install red, blue, green, or infrared filters in the iVu Series sensor. Models Model Description FLTMR Red filter kit FLTMI IR Filter kit FLTMB Blue filter kit...
- Page 2 Filter Kits Note: The light/lens assembly may include an integrated ring light or a blank disk if an integrated ring light is not used. Be careful that the light/lens assembly does not pull out when removing the Focusing Window. Give a slight tug on the Focusing Window when you think you've unscrewed it far enough.
- Page 3 Filter Kits Filter Wavelengths FLTMR Red Filter The FLTMR Red Filter improves image quality by helping to reduce unwanted ambient light. It passes red light while blocking infrared and other visible light. Transmission 1000 1100 Wavelength (nm) Figure 1: Percent transmission of light wavelengths through the FLTMR red filter...
- Page 4 Filter Kits FLTMI Infrared Filter The FLTMI Infrared Filter blocks visible light and passes infrared light. Use the FLTMI filter only with infrared light sources. T ransmission Wavelength (nm) Figure 2: Percent Transmission of light wavelengths through FLTMI infrared filter FLTMB Blue Filter The FLTMB Blue Filter improves image quality by helping to reduce unwanted ambient light.
- Page 5 Filter Kits FLTMG Green Filter The FLTMG Green Filter improves image quality by helping to reduce unwanted ambient light. It passes green light while blocking infrared and other visible light. Transmission 1000 1100 Wavelength (nm) Figure 4: Percent transmission of light wavelengths through the FLTMG green filter Buy: www.ValinOnline.com | Phone 844-385-3099 | Email: CustomerService@valin.com...
