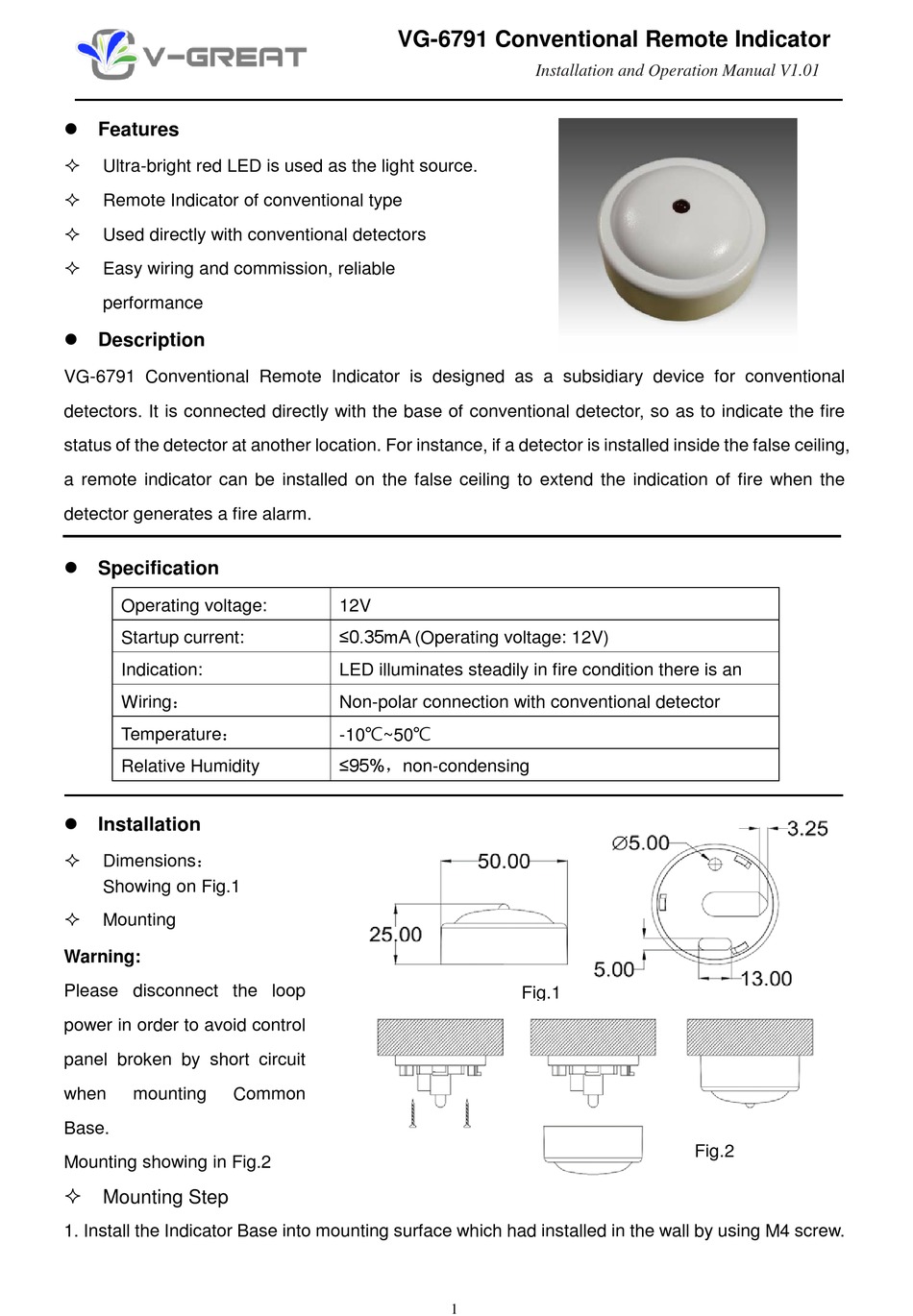

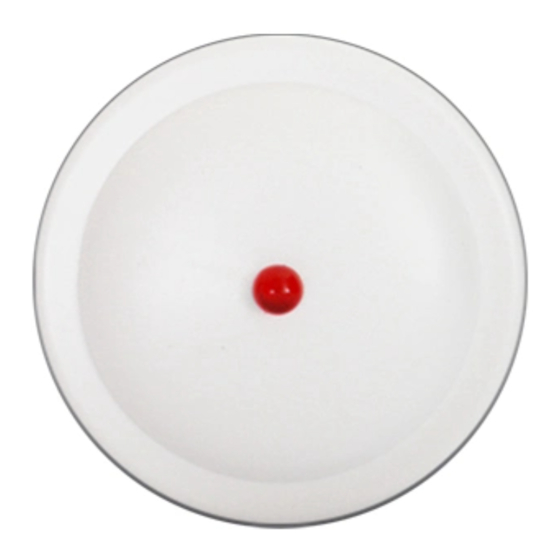

 Features
Ultra-bright red LED is used as the light source.
Remote Indicator of conventional type
Used directly with conventional detectors
Easy wiring and commission, reliable
performance
 Description
VG-6791 Conventional Remote Indicator is designed as a subsidiary device for conventional
detectors. It is connected directly with the base of conventional detector, so as to indicate the fire
status of the detector at another location. For instance, if a detector is installed inside the false ceiling,
a remote indicator can be installed on the false ceiling to extend the indication of fire when the
detector generates a fire alarm.
 Specification
Operating voltage:
Startup current:
Indication:
Wiring:
Temperature:
Relative Humidity
 Installation
Dimensions:
Showing on Fig.1
Mounting
Warning:
Please disconnect the loop
power in order to avoid control
panel broken by short circuit
when
mounting
Common
Base.
Mounting showing in Fig.2
Mounting Step
1. Install the Indicator Base into mounting surface which had installed in the wall by using M4 screw.
VG-6791 Conventional Remote Indicator
12V
≤0.35mA (Operating voltage: 12V)
LED illuminates steadily in fire condition there is an
Non-polar connection with conventional detector
-10℃~50℃
≤95%,non-condensing
1
Installation and Operation Manual V1.01
Fig.1
Fig.2
