Page 1 Wireless AV Content Sharing & BYOD collaboration System (Quad Viewer) User Manual_V1.1 Receiver: WU-10 Transmitter: DG-H15(HDMI dongle), DG-C15(Type C dongle) 1 / 110...
Page 2 Feature List: WU-10: Support quad viewer on one display.  HDMI output2.0, 3840x2160@60Hz.  Support Windows/MAC/Android/iOS, USB dongle, HDMI dongle, Type C dongle for sharing content to  display. Support Airplay, Miracast, Chromecast.  Support USB Camera, USB(or BT) Speak Phone over WI-FI sharing. 3 USB port and 1 Type C port for ...
Page 3: Table Of Contents
Catalogue Overview: ................................. 6 Specification: ..............................9 Panel Layout ..............................9 Hardware Interface ........................10 3.1.1 WU-10 Front Panel ........................10 3.1.2 WU-10 Rear Panel ......................... 12 3.1.3 Factory Reset ..........................13 3.1.4 Dongle Front Panel ........................15 Software Interface ......................... 19 3.2.1 Home Screen ..........................
Page 4 Whiteboard & Annotation ......................46 5.5.1 Whiteboard ............................47 5.5.2 Annotation ............................49 Web Setting Management Configuration ....................51 Network settings ........................... 54 6.1.1 Wireless network ........................... 54 6.1.2 Ethernet ............................. 64 6.1.3 Auto change password ........................64 Display & Audio ..........................65 6.2.1 HDMI ..............................
Page 5 6.7.1 Auto create launcher ........................... 81 6.7.2 Clear history after meeting ......................82 About device ..........................82 Updating WirelessMedia ..........................83 7.1 Check current firmware information ....................83 7.2 Upgrading firmware of base unit: ......................86 Upgrading and Pairing of Dongle: ....................87 Upgrading Launcher: ........................
Page 6: Overview
1. Overview: WirelessMedia WirelessMedia makes connecting or participate in a meeting by a most simple way, touching a button. It also allows the others to join in the meeting more actively. The result is to make the meeting more efficient and productive.

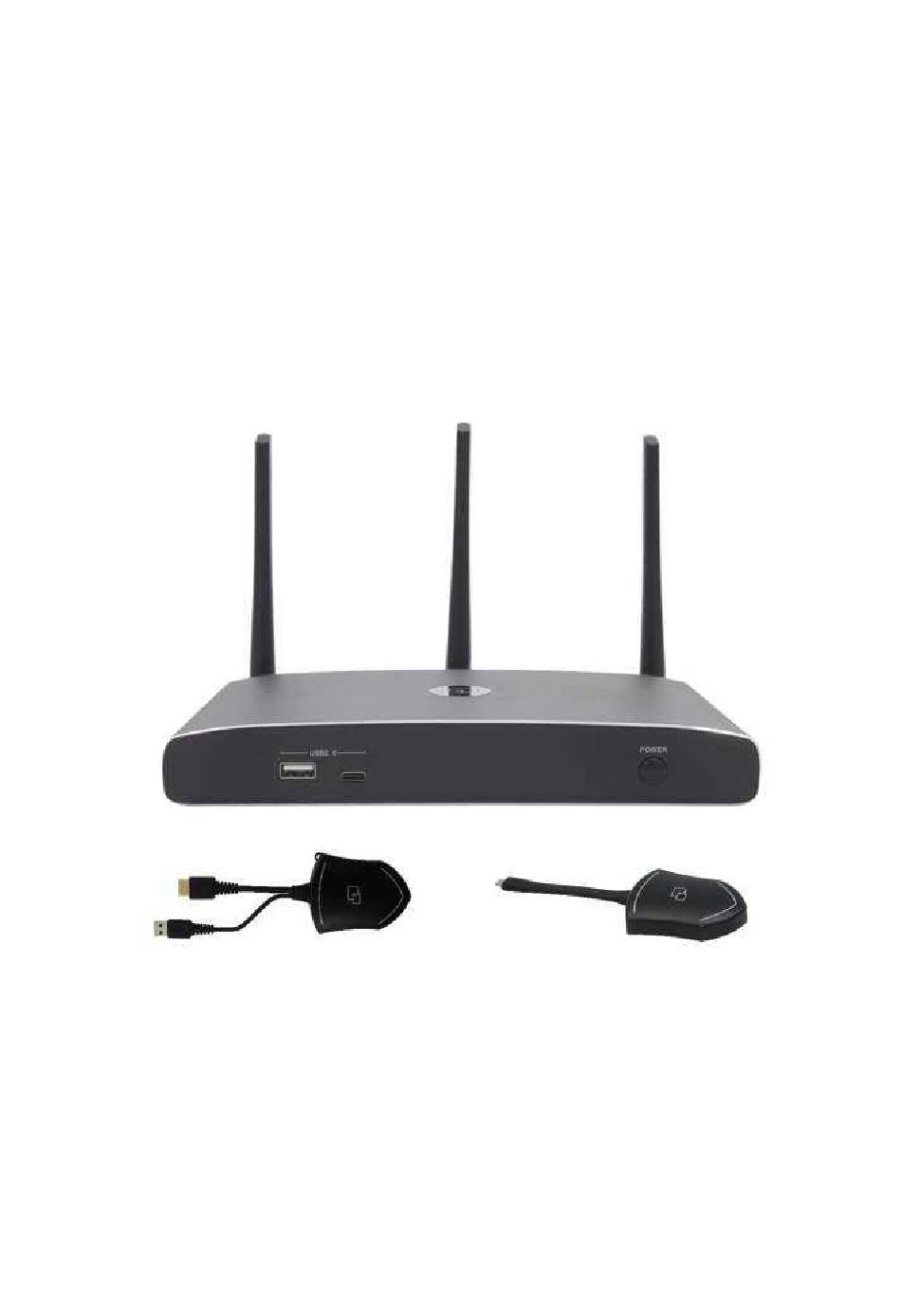

Page 7 Name Description Base Unit Host unit For PC/Lap-top to share the desktop/extended Transmitters desktop. “WMedia2” App for Android For smart android devices to share the screen. Airplay for IOS For smart IOS devices to share the screen. Accessories List Name Description 3 pcs of antenna are included in the box.
Page 8 The diagram of receiver and transmitter system as below. 8 / 110...
Page 9: Specification
2. Specification: WU-10 Specification HDMI output 1x HDMI 19-pin female connector 3840x2160@60Hz,3840x2160@30Hz, Video Output Resolution 1920x1080@60Hz, 1280x720@60Hz Format Compliance HDMI1.4/HDMI2.0 1080P @ <60Hz Airplay for IOS devices Video Capacity: 1080P @ <60Hz "WirelessMedia2" app 1080P @ <60Hz for all show-me button HDCP HDCP1.4/HDCP2.2 Analog Audio Output...
Page 10: Hardware Interface
Overview Hardware Interface  WU-10 Front Panel  WU-10 Rear Panel  DG-H15/DG-C15 Front panel  Software Interface  Home Screen  3.1 Hardware Interface 3.1.1 WU-10 Front Panel Note: Front USB port and type C port cannot be used in the same time, type C port is prior to USB port.
Page 11 Name Description USB port, for dongle pairing, mouse control, USB Front USB connector touch screen etc. Front Type-C connector Type-C port, for dongle pairing. Power Button Turn on or off the device. Initializing indicates RED, power on indicates Back-lit LED indicator flashing GREEN, “Ready to share”...
Page 12: Rear Panel
3.1.2 WU-10 Rear Panel Name Description 2 channel analog audio output, Connect a 3.5mm mini-jack Line audio PC connector from this jack to the Line in jack of an audio output system. RS-232 Connect an RS-232 cable from this port to an RS-232 device. One end is wrapped around a fixed object and one end insert Kensington Lock into this port to keep safety.
Page 13: Factory Reset
LAN Ethernet 100Mbps, Connect an Ethernet cable between port 1 this jack and a LAN to connect WU-10 to LAN. LAN Ethernet 1000Mbps, Connect an Ethernet cable between port 2 this jack and a LAN to connect WU-10 to LAN. Support POE. Connect the included power adapter to this socket, and DC Power socket connect the plug to an available electrical outlet.
Page 14 Default Configuration Ethernet:  Proxy: None  DHCP: Enable  Wireless network:  Frequency: 5GHZ  Channel: Auto  Auto change Wi-Fi hotspot password: 5minute  Display & Audio  HDMI resolution: Auto  HDMI CEC:  Device auto power off: ON ...
Page 15: Dongle Front Panel
Auto create launcher: Disabled  Clear history after meeting: Always  3.1.4 Dongle Front Panel WMT2-C, DG-mini, DG-H15, DG-C15 are dongles, which is used for toggling the mirroring from personal PC or MAC desktop on the main screen. Note: From which, only model DG-H15 and DG-C15 support USB devices over WI-FI function, can capture external USB devices connecting on WU-10 and mirror to display.
Page 16 LED ring indicator behavior When LED indicator is static green, it’s ready to mirror your PC desktop on the main screen.  When LED indicator is static red, 1) it’s mirroring your PC desktop on the screen, 2) pairing is done. You can ...
Page 17 LED ring Indicates the status of the button. indicator Note: DG-C15 is full function type-C interface with DP Altmode inside, which supports Audio and video transmission. Thus PC’s type C connector also requires full function type C connector for mirroring screen. Name Description Type C (DP)
Page 18 Name Description Using USB connector of the dongle can be plugged into a USB connector PC/Laptop for sharing your screen. Type C Using Type C connector of the dongle can be plugged into a connector PC/Laptop for sharing your screen. 18 / 110...
Page 19: Software Interface
3.2 Software Interface 3.2.1 Home Screen Name Description Wi-Fi Direct mode: internal access point is enabled Wi-Fi Infrastructure mode: “Client-Mode“ , Wi-Fi connection to router is established, icon displays the current signal strength. Wi-Fi Indicator A secure Wi-Fi connection is established, or connection to a router failed: Wi-Fi is not available: LAN Infrastructure mode: access point is disabled...
Page 20 Wi-Fi name or device name of the Base-unit access point. Wi-Fi password of base unit. PASS only displayed, when timer is active; Password-timer time until the password is changed automatically. Refresh Wi-Fi- Generate new password manually for securing your Wi- password Fi network.
Page 21: Installation
Wi-Fi IP: address of base unit in wireless LAN  Wi-Fi IP Assigned IP: address of base unit in LAN; “N/A“ =  LAN IP no connection to network 4. Installation The installation chapter gives an overview of the different ways to install and connect WirelessMedia Base Unit. Overview: Installation methods for the Base unit ...
Page 22 How to install Drill two holes in the wall as indicated on the drawing. Horizontal distance: 177 mm ± 0.15 At the bottom of Base Unit, turn in 2 flat screws into 2 holes of its smallest diameter to be fasten enough. Note: Mounting screws are not included in the WirelessMedia box .
Page 23: Wiring Diagram
4.2 Wiring Diagram 4.3 Power Connection The Base unit can be powered by the external universal power adapter. How to connect the external power adapter Plug the power connector to the power adapter to the power input connector of the Base Unit Choose the appropriate power plug (US, UK, EU or AU) to be installed on the power adapter, Connect the power cable plug into the wall outlet.
Page 24: Video Connection
Power over Ethernet If the LAN Ethernet switcher support POE (Power over Ethernet), it could power up the Base-unit instead of using the external power adapter. (WU-10 LAN2 Port is support POE.) 4.4 Video Connection Connect the HDMI Output of base unit to a 4K or Full-HD display by a HDMI cable. Connect the power adapter to the base unit DC power socket and connect the other side plug to an available electrical outlet and switch the base unit on.
Page 25 How to connect separate audio Connect an audio cable with mini jack socket 3.5mm connector into the audio of the Base Unit Connect the other side to the meeting room’s sound system. 25 / 110...
Page 26: Lan Connection
Sound is not sent out WirelessMedia button will keep capturing and send the audio of PC/Lap-top, since PC/Lap is successfully mirroring desktop to the main screen. Please be sure the button is static green and the PC/Lap-top is sharing on the screen Check Setting configuration, to adjust the Volume set in WirelessMedia setting tab.
Page 27: Usage Of Usb Device
The LAN connection can be used for: Network integration of Base Unit in guest or company network.  Telnet control the Base Unit.  Maintenance purpose.  Over-The-Air -Update (OTA) of firmware of Base-unit.  4.7 Usage of USB device Please use a USB Mouse or Touchscreen.
Page 28: Quick-To-Start
Click to select.  Long press to open the contextual menus, as double-click or click the right button of a USB mouse.  5. Quick-to-Start 5.1 Mobile device: Wireless Connection Download the application namely “WirelessMedia2” (for example scan QR-Code in Home screen) in Android Google Play market for Android mobile device.
Page 29: Enable Portable Hotspot
5.1.1 Enable portable hotspot: Check the ID and PASS (Password) are shown on the Homepage, as shown below. 5.1.2 Enable LAN connection: Be sure the WU-10 is connected to the Network. When Local IP shows an active IP address, such like 192.168.3.29, it indicates WU-10 is successfully connected to the LAN and get an appointed IP address.
Page 30: Pairing Transmitter With Base Unit
5.2 Pairing transmitter with base unit Connect the USB of WMT2-C to either of the 2xUSB port of WU-10, DG-mini to USB port/type C port, DG- H15 (HDMI dongle )to USB port, DG-C15(Type C dongle) to type C port, to pair all the transmitters with base unit.
Page 31 Then, the message table shows “Pairing, please wait…” as shown below After completing the pairing, the message table shows “Succeeded to pair!” on the home page, as shown below. Then, please un-plug the transmitters and use it for the mirroring on your laptop. 31 / 110...
Page 32: Mirroring
If error-message “Configuration fail” is shown, please check the connection of USB/type C to keep stable after plug-in, and try again. Note: After each changing the SSID/Wi-Fi channel in menu, all the transmitters must be paired again! When you buy additional transmitters or when a transmitter should be assigned to another Base-unit, the transmitter must be paired again.
Page 33 Click the transmitter again, to stop mirroring, LED shows green again. Note: For second time user, once plug transmitter into PC, it will run automatically to be ready for share. ATTENTION: For sensitive customer, please download the “WirelessMedia-pro.exe” instead of “WirelessMedia- windows.exe”...
Page 34 2. Plug DG-mini into PC/Laptop/MACbook and click the “Launcher” to run. DG-mini will auto change PC’s wifi to the target base unit wifi. No need to manually change PC’s wifi. It will pop out the message bar to enter the password to connect. 3.
Page 35 Note: for second time user, DG-mini will automatically run to share screen, no need to click “Launcher”. Non-Driver based transmitter DG-H15 (HDMI dongle) Plug the USB port of DG-H15 to base unit to pair. Plug the USB port and HDMI port of DG-H15 to PC/Laptop/MacBook. USB port for power and HDMI for AV. Touch to mirror when the LED indicates is static green.
Page 36: Mobiles Devices
Quad view mirroring: WU-10 base unit can mirror 4 sources onto main display simultaneously, which supports PC/Laptop and mobile devices. 5.3.2 Mobiles Devices Sharing on Android devices Open the “WirelessMedia” application. Connect your mobile device to one of the displayed Wi-Fi networks. Open the “WirelessMedia2”...
Page 37 Select the base unit you want to connect, enter password and mirror. After completing the pairing, it shows OSD “Welcome ***” on the home page. For example, if we connect it by a HUAWEI-PAR-AL00, it shows a “HUAWEI-PAR-AL00” on screen, as shown below. 37 / 110...
Page 38 Now you can mirror your desktop of your mobile. Click again the button “Share Screen” to stop mirroring. Click the connected device name to check the base unit status and base unit firmware version.  Click “Fullscreen” to be full screen in the main screen when more than one signal is connected and shared. ...
Page 39 Sharing on IOS devices With AirPlay technology, user can stream his screen or music, (YouTube-) videos, pictures … wireless to Base-unit. Connect your iOS device with the same Wi-Fi network from WU-10. For IOS devices, activate the control center. Click the Airplay icon on your Apple device and select the target WU-10 to start mirroring through the WU-10 to the main screen.
Page 40: Miracast On Android Devices And Win10 Pc/Laptop
5.3.3 Miracast on Android Devices and WIN10 PC/Laptop Android Devices Steps as below: Make sure the Wi-Fi or WLAN is enabled. Swipe down from the top of phone’s screen and click the wireless projection icon in the popup page. It will pop out the wireless projection window, find the proper base unit WMB-5320 in the available list to connect.
Page 41 After entering password, it will show your mobile content on display. Click the “wireless projection” icon again, disconnect to stop mirroring. 41 / 110...
Page 42 WIN10 PC Miracast Make sure the Wi-Fi or WLAN is enabled. Click the PC bottom right corner operation zone icon as below. Click “project” icon to enter password on home screen to connect and mirror. Note: under Security Level 1 mode, there is no need to enter password to connect. Under Security level 2 and Security level 3 mode, it will need to enter password on WU-10 home screen to connect and mirror.
Page 43: Chromecast On Pc
Click the “project” icon again, disconnect to stop mirroring. 5.3.4 Chromecast on PC WU-10 support Chromecast function on WIN 7 and WIN 10 PC. PC and WU-10 base unit need to be in the same LAN network to start cast content onto screen via Chromecast. Open Chromecast browser, connect your PC with same network of WU-10 as below pic.
Page 44: External Usb Devices Over Wi-Fi Sharing
Find target base unit SSID as below. Click to connect. Three options to choose to cast. Cast tab, Cast desktop, Cast file. 5.3.5 External USB Devices over Wi-Fi Sharing WU-10 support USB Camera, USB(or BT) Speak Phone over WI-FI sharing. 44 / 110...
Page 45: Preview Window
3 USB port and 1 Type C port in rear panel for connecting the external USB devices such as Microphone, camera… to start meeting with all kinds of video conference software such as Skype, Zoom... 5.4 Preview Window At touch-screen or with mouse of Base-unit, you can click on LEFT or RIGHT-arrow (2), to show the small preview-windows as a bar on the right edge of the screen, or to hide them, if they are disturbing.
Page 46: Whiteboard & Annotation
The button indicates step out screen, click to stop mirroring the current signal. The button indicates full screen, click to be full on main screen. The button indicates volume, click to adjust the volume of connected signal. 5.5 Whiteboard & Annotation Whiteboard and Annotation requires an HID compatible device, such as interactive white board or interactive touch screen.
Page 47: Whiteboard
The toolbar for Whiteboard or Annotation appears in the bottom of your screen. If another user is mirroring, the Whiteboard & Annotation function is closed. 5.5.1 Whiteboard Click on the icon to enter the white Whiteboard page. You can create free drawings with your finger at touch screen, mouse (multitouch capability).
Page 48 Tool bar 1 Add an empty page Delete the actual page Display previous or next page Undo: one step backward in changes Redo: one step forward in changes Erase part of drawings or annotation, change diameter by a longer tap Tool bar 2 Clear the entire drawing/writing on the screen Pen allows writing/drawing in different colors...
Page 49: Annotation
Tool bar 4 Save the current screenshot on local storage (PNG+WMN) File options Close Whiteboard to go back to Home screen, actual project can be saved on local storage (WMN) File options: Open WMN-file from local storage and continue/edit an ...
Page 50 Undo: one step backward in changes Redo: one step forward in changes Erase part of drawings or annotation, change diameter by a longer tap Tool bar 1 Clear the entire drawing/writing on the screen Pen allows writing/drawing in different colors Draw basic geometric shapes Close Whiteboard to go back to Home screen, actual project can be saved on local storage (WMN)
Page 51: Web Setting Management Configuration
6. Web Setting Management Configuration Connect base unit ID & Password or LAN IP to laptop, to enter Wi-Fi IP browser page to configure settings of base unit. The “WirelessMedia-windows.exe” and “WirelessMedia-Pro.exe” for windows PC/Lap-top, “WirelessMedia-macOS.app” for Mac OS X, “user manual” and “WirelessMedia2” for Android can be downloaded here.
Page 52 Click Setting button on the top right corner to enter into menu to configure. A password is required to enter the configuration menu. The default password after Reset is ”admin”. You can change the password in menu “Security setting”. Note: If user has forgotten his password, you need to make a Factory Reset to restore admin as password.
Page 53 The main interface of Setting is shown as below, including Network settings, Display & Audio, Moderator control, System settings, Security settings, Firmware upgrade, Other settings, About device. 53 / 110...
Page 54: Network Settings
6.1 Network settings 6.1.1 Wireless network To take the full benefits of the WirelessMedia possibilities, WU-10 should be properly integrated in the organization’s network (company/university/school). This wizard allows user to create a custom configuration for integration of WirelessMedia into the existing wireless infrastructure in larger organizations. Segmented Dual Network, is to provide two segmented routing ways to connect to the base unit simultaneously and separately, including wireless WI-FI network (normally connected to Guest/untrusted network) and wired LAN network (normally connected to the corporate/trusted network).
Page 55 Only "a-z","A-Z","0-9","-_" and space are legal character. Click “Next step”. The following three connection methods are available: 6.1.1.2 Wireless Direct Mode After Factory Reset, WU-10 base unit starts up in the default Stand-Alone “Wireless direct mode” configuration, where the Base-unit creates its own wireless access point, which all transmitters use to connect. This is typical for a quick setup for small group meetings.
Page 56 PC driver (Windows or MacOS). Android users (BYOD) can share their content by installing the free APP on their device and IOS users can use AirPlay (Apple only). Recommended Environment This option is best for temporary operation, small installations, and rooms without network access or networks that do not allow network access for Guests, due to strict security concerns, and are completely separate from the corporate network.
Page 57 Frequency: Click to select 2.4 GHz or 5 GHz Wi-Fi frequency. Default is 5 GHz.  Channel: Click to select the Wi-Fi channel. Default is 5 GHz, Auto.  If the Wi-Fi channel is changed, no new pairing of the dongle is necessary. 2.4 GHz frequency band: channels 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 5 GHz frequency band: no need to choose 5G channel, system will choose proper channel automatically.
Page 58 6.1.1.3 Wireless Infrastructure mode WirelessMedia can connect to a wired and a wireless network simultaneously. The basic unit is firmly "connected to the company network with LAN. Guest users connect to Wi-Fi "Guest" access. The employees (“Staff”) connect to their usual access point of the corporate network, without having to change the Wi-Fi. This is very useful for organizations, which have a wireless “Guest”...
Page 59 Dual Network Configuration The internal the Wi-Fi network of WirelessMedia is connected to Guest Wi-Fi network of the organization, (Client Mode: the indicator-icon shows the actual signal strength). The Base-unit is still wired with LAN-cable to the internal company network The PC-users can present, with or without dongle TOUCH by WirelessMedia PC driver (Windows or MacOS).
Page 60 Click “Next step” to edit or change Guest network SSID and Staff network SSID. Wi-Fi name of guest and staff will be shown on home screen after “Submit settings”. After submitting successfully, please re-pair dongle with base unit. “Dongle connects to base unit via LAN.” Choose a LAN network which is used for the company staff users.
Page 61 Select dongle SSID: choose the same LAN network which base unit connects, to pair the dongle. Password: enter password of the LAN network. See picture as below: Click “Next step” to edit or change Guest network SSID and Staff network SSID. Wifi name of guest and staff will be shown on home screen after “Submit settings”...
Page 62 6.1.1.4 LAN Infrastructure Mode In this configuration the built-in Wi-Fi access point of WirelessMedia is disabled: The dongle and/or the mobile devices can connect to the secured wireless access point of the company network. The Base-unit of WirelessMedia is hard-wired connected via LAN to the Ethernet of the Company network. The Staff-users connect to their usual access point of Company network, without the need to change the Wi-Fi.
Page 63 Click “Next step” to choose a LAN network which is used for the company staff users and pair the dongle into this network. Click “Next step” to edit or change Guest network SSID and Staff network SSID. Wifi name of guest and staff will be shown on home screen after “Submit settings” After submitting successfully, please re-pair dongle with base unit.
Page 64: Ethernet
6.1.2 Ethernet Configure the Ethernet settings. WU-10 has 2 Lan port, if the base unit is connected with 2 LAN cable, you can configure from below tab. 6.1.3 Auto change password The password remains unchanged for all participants of the meeting, while at least one dongle or a Wi-Fi network of a mobile device are connected with Base-unit.
Page 65: Display & Audio
The changeable password will be fixed by connecting a dongle to PC/Laptop or connect a mobile unit to the  Wi-Fi of the Base-unit, and continue to be changeable after 15s after disconnecting the last dongle or disconnect the Wi-Fi of a mobile unit. User do not need to re-pair the dongle again, if only the password is changed.
Page 66 Existing HDMI output resolution as below: Auto  3840x2160 @30Hz  3840x2160 @60Hz  3840x2160 @50Hz  1920x1080 @60Hz  1920x1080 @50Hz  1280x720 @60Hz  1280x720 @50Hz  Note: if the display is only support FULL HD, the 4K resolution will not be shown on the list of the below resolution. 66 / 110...
Page 67: Audio
HDMI CEC Base unit support CEC function if the connected display support CEC function. Note: when you find the HDMI CEC doesn’t work, you need to check whether monitor supports CEC feature or not, since some brand model monitor doesn’t support CEC. Device auto power off: ...
Page 68: Airplay Screen Quality
Volume User can select volume of display from 0 to 100. 6.2.3 Airplay screen quality Click to select the image quality when transmit apple device by “AirPlay” mode. 68 / 110...
Page 69: Start Screen
6.2.4 Start screen Show device name and password when mirroring: Name (ID) and Wi-Fi-password can be shown or hided  at top status-line of main screen. Show PCs user name when mirroring.  Show user name. 69 / 110...
Page 70: Home Screen Background Image
6.2.5 Home Screen background image When powering WirelessMedia the start screen will be displayed. User can change background image of Home screen. Select the image (jpg, bmp, png, gif with resolution 1920x1080 p.) from suitable directory and activate box for selection. You can return to Standard Home screen every time. 70 / 110...
Page 71: Moderator Control
6.3 Moderator control Add a sub-window bar to enable previewing the connected devices. Tick the icon, it will show the sub  window as below once devices are connected to base unit. Real time preview  If tick the icon, the preview window will show real time preview, if not tick, the preview window will only show a static picture as below.
Page 72: System Settings
6.4 System settings 6.4.1 Buttons: Show Device name, MAC Address, Serial Number, Device Version, Device Status, Last Action, Item Operate. Paired Show properties of connected dongles and can be managed from this page. 72 / 110...
Page 73: Date & Time
6.4.2 Date & Time Includes Automatic date & time, Set date, Set time, Select time zone. Automatic date & time: Check to use a NTP time server to provide time as system time.  Set date: Click in the input filed to fill out the appropriate date. ...
Page 74: Auto Standby
6.4.3 Auto standby If the Auto Standby mode is activated, WirelessMedia will automatically switch to power saving mode, a selectable time after the last dongle was plugged out, or Wi-Fi of a mobile unit was disconnected, or there is no operation at the system.
Page 75: Language
When a dongle is plugged in and connected, or a mobile unit is connected, Standby is deactivated. Movement of mouse at USB-input at Base-unit deactivates Standby mode also. 6.4.4 Language Select an installed display language. 75 / 110...
Page 76: Reset
6.4.5 Reset Doing factory reset to restore unit. 6.4.6 Configuration File Configuration File is a packaged file which contains all the configuration parameter of the WU-10, which could be downloaded and copied to multiple device which needs to use the same configuration. 76 / 110...
Page 77: Series Port Setting
6.4.7 Series Port Setting To configure telnet command and RS-232 command. 6.4.8 Telnet switch Switch on or off the telnet function. 77 / 110...
Page 78: Security Settings
6.5 Security Settings 6.5.1 Security level Based on user requirements, three different security levels can be set in the menu of WirelessMedia, to satisfy different security requirements, according to different security sensitive environments or security policies. A 78 / 110...
Page 79: Login Password
security level is a predefined set of settings. Click on the corresponding entry in the menu if you want to adjust the respective security features. The default setting is level 1. Level 1: normal safety; keeps the security in normal and daily usage for any organization, such like classroom, regular meeting room etc.
Page 80: Connection Password
6.5.3 Connection password Two type of password format can be chosen to show on home screen. 4-digits password, beginning with 0000  8-digits password  6.6 Firmware upgrade 6.6.1 Firmware Update To upload local updating files to upgrade base unit. 80 / 110...
Page 81: Automatic Upgrading
6.6.2 Automatic Upgrading Tick to choose upgrading from OTA via Internet or from local files. 6.7 Other settings 6.7.1 Auto create launcher Determines, when using a USB memory at one USB-port of Base-unit, the Launcher program “WirelessMedia” will be copied automatically on USB memory. Enable or disable the corresponding box. 81 / 110...
Page 82: Clear History After Meeting
6.7.2 Clear history after meeting Pictures, videos, music of mobile units will be stored in memory of Base-unit. This memory can optionally be erased, at the end of a meeting, when the dongle is pulled from the Laptop / PC. Settings are: ...
Page 83: Updating Wirelessmedia
7. Updating WirelessMedia An update of the firmware can be useful to take the advantage of new features of WirelessMedia or to fix known issues and bugs. WirelessMedia includes two methods of updating. Updating by USB stick and webserver. After updating the Base-unit, always check, whether the other parts still fit together or should be updated also. There are up to three different areas for updating: Firmware Base-unit, Firmware dongle and Launcher for PC/Laptop or MAC “WirelessMedia.exe“.
Page 84 MAC OSX: Dongle/Launcher: firmware version can be visual in the ““WirelessMedia”.app” program icon in MAC OSX status bar, by clicking the ““WirelessMedia”” icon and select “About”, as shown below. Click “About” to check dongle and launcher program. 84 / 110...
Page 85 Firmwares are NOT matching: When dongle firmware or “Launcher” firmware are older version, or in other words dongle firmware or “Launcher” firmware doesn’t match with the base unit version, it shows up ““WirelessMedia” ATTENTION” alert message box in the window OS or MAC OSX, as below. When mismatching occurs, please do the following steps to update the firmwares, as indicates in the message box.
Page 86: Upgrading Firmware Of Base Unit
7.2 Upgrading firmware of base unit: There are two ways to upgrade base unit as below. First method to upgrade base unit as below: The base unit device can be updated through a USB drive as below. Copy the updating file “update.img” to the root directory of the USB drive. Connect the USB drive to either USB port of Base-unit.
Page 87: Upgrading And Pairing Of Dongle
The display device shows the Home Screen after normal boot of the device, you can disconnect USB-drive. Perform “Factory Reset” when the firmware update is complete? Only when the associated “Release notes” are requiring an additional „Factory Reset“, perform it via the menu “System settings”...
Page 88: Upgrading Launcher
3. Plug out the dongle. Now, the upgrading progress is finished. Update all other dongles accordingly. Upgrading Launcher: Attention: The USB driver should be FAT 32 format not NTSC format. After upgrading Base unit and Dongle, the launcher should be written with the actual launcher program for Windows, MAC and Apps for mobile-units.
Page 89 Method 2: Via WIFI Connect PC to WU-10’s SSID and enter password in homepage, see pictures as below: Open Browser and enter WiFi IP: 192.168.43.1 Click to enter “Launcher” download webpage. Shown as below: Choose and click Windows or MAC launcher to download. Find the “Launcher”...
Page 90: Clean Left Files Of Older Versions Of Launcher Program In Lap-Top
The Launcher program "WirelessMedia for Windows" and "WirelessMedia Pro for Windows" includes by default an additional virtual driver "ExtendedDesktop" to optionally install the Windows 10 Extended Desktop functionality, if they are is needed. This may require admin rights. 7.5 Clean left files of older versions of Launcher program in Lap-top There are some old version “WirelessMedia”...
Page 91: Operation Guide
Right-Click on the “*.service” or “*.serviceC3”, for example right-click on “WirelessMediaAutoServiceC3.exe”as shown below, and click to End Process Tree. Check again the task manager, to be sure there is no more any “WirelessMedia” programs still running in the task manager. And check again to be sure there is no more any “WirelessMedia” in the C:\Users\***(userame)\AppData\Local\”WirelessMedia”.
Page 92 Launcher program. When the Launcher program is pre-installed one time and already run in the first time, with plug in dongle, continue with step 2. When Launcher program is not yet installed on PC, refer to chapter 7.4. Plug a dongle to the USB port of your PC or Laptop. The WirelessMedia application is starting automatically and a symbol is displayed in the task bar of the PC/laptop Until the transmitter button shows a static green LED indicator, or till you see a message table showing up “Ready to share”, you could click the transmission button to start mirroring.
Page 93: Microsoft Windows Pc/Laptop Without Dongle
8.1.3 Microsoft Windows PC/Laptop without Dongle For first time user, you have to copy the Launcher program ”WirelessMedia for Windows” first on your Laptop. When the Launcher program is already loaded, continue with Step 2. When Launcher program is not yet installed on PC, refer to chapter 7.4. Connect your laptop to Wi-Fi network displayed on the Home screen (“Guest’, “Staff”), or connect to the LAN on the network using a network cable.
Page 94 Click “Ready to share” in PC, when window color is static red, the screen is mirroring to the main screen. Click the visual button again, to stop mirroring, window color shows green again. You can minimize the APP-window, in Windows taskbar you can see if screen is mirroring or not Right click the WirelessMedia status icon in Windows taskbar to open up the context- menu.
Page 95: Options For Microsoft Windows Pc / Laptop - Extended Screen
“Exit”: End APP. Exiting the App completely.  If you click the “close” in the upper right corner of the app, the app in the task bar is only minimized and can be recalled again from the taskbar at any time. 8.1.4 Options for Microsoft Windows PC / Laptop –...
Page 96 “Options”: Extended Screen:  Transfers extended desktop of active source. (depending on your operating system, may require the installation of the virtual driver “ExtendedDisplay“ for function with Windows 10). The primary screen (1) is displayed on the laptop and the virtually extended screen (2) is displayed on the main screen.
Page 97 Keep Aspect Ratio:  Keep the original aspect ratio to display on the main screen. Stream Mode:  Fluency Priority: (Default) Image transmission delay is small, image resolution will be lower, suitable for  PPT presentation mode. Quality Priority: The image resolution is relatively high, but when the image content is complex, the ...
Page 98: Mac Os Pc/Laptop With Dongle
8.1.5 MAC OS PC/Laptop with Dongle At least operation system macOS 10.9 is required. For first time user, you have to copy the Launcher program ”WirelessMedia for MAC” first on your Laptop. Run this Launcher program. When the Launcher program ”WirelessMedia for MAC” is already loaded, continue with Step 2. When Launcher program is not yet installed on PC, refer to chapter 7.4.
Page 99: Mac Os Pc/Laptop Without Dongle
5. Disconnect at end of meeting. 8.1.6 MAC OS PC/Laptop without Dongle For first time user, you have to copy the Launcher program ”WirelessMedia for Mac” first on your Mac. When the Launcher program is already loaded, continue with Step 2. When Launcher program “WirelessMedia-macOS.app”...
Page 100 Click the visual button again, to stop mirroring, window color shows green again. You can minimize the APP-window, in top menu-bar you can see if screen is mirroring or not Right click the WirelessMedia status icon in top menu-bar to open up the context- menu. “About”: You can check the software versions of the Base-unit, the dongle and the launcher program.
Page 101: Options For Apple Macos, Macbook - Extended Screen
8.1.7 Options for Apple MacOS, MacBook – Extended Screen in App to open/close “options”. Click the icon “Options”: Extended Screen:  Transmits the Extended desktop (“Use a Separate Display”) only via AirPlay, when activated for Display on WirelessMedia. Keep Aspect Ratio: ...
Page 102: Transmitting Ios Mobile Device
Quality Priority: The image resolution is relatively high, but when the image content is complex, the  transmission delay will be relatively larger, suitable for watching video. 8.2 Transmitting IOS mobile device 8.2.1 How to use AirPlay? AirPlay: WirelessMedia Base Unit supports “Airplay”, which enable mirroring the desktop of your Apple device such as iPhone, iPad etc.
Page 103 Select the base unit you want to connect, enter password and mirror. When sharing to main screen, it shows OSD “***” on the home page. For example, if we connect it by a HUAWEI-PAR-AL00, it shows a “HUAWEI-PAR-AL00” on screen, as shown below. 103 / 110...
Page 104: Wifi Recommendation Setting
Now you can mirror your desktop of your mobile. Click again the button “Share Screen” to stop mirroring. You could click “my device” to check the device status and firmware verssion. 9. WIFI Recommendation Setting 9.1 Check the WIFI config on base unit Please use a WIFI analysis software to place it at the same place as the base unit, to check the WIFI environment, in order to select the clean or unused WIFI frequency between 2.4GHz and 5Hz, and the WIFI channel as below.
Page 105: Problem Shooting
keep a stable signal transmission. If not, please try to take the following measures, as in the problem shooting--- Bad wireless connection congestion. 10. Problem Shooting Here you can find some fundamental problems and possible causes, which can be happen during the use of “WirelessMedia”.
Page 106 and Base unit cause lowering Remove or limit as much as  of the wireless strength and possible all obstructions quality. between the transmitters and base unit. Avoid to place the Base-unit  in (metal) cabinets, suspended ceilings, under tables or in adjoining rooms.
Page 107 quality of the transmission. Video is not shown on screen The content use HDCP WirelessMedia input can’t  support showing HDCP source. If possible, connect the source device to local HDMI input at base unit. The display cable (HDMI) is not Insert the display cable to the ...
Page 108 DTSLBR, DTSE, DTSNeoUltra, SRS- THEATERSOUND, DTS_StudioSound3D, DTS_HD, There is no sound at main-display. No connected audio device. Make sure, the audio is turned on. Volume is set to OFF. Adjust level in menu configuration WirelessMedia console in on webserver settings. The volume level is set too low in Adjust the volume in the the options of the "WirelessMedia"...
Page 109 “WirelessMedia for Android“. an interface to capture the audio. In this case, there is no sound when mirroring the video. Can’t update firmware of the base Flash disk format is NTFS Please re-format the flash disk to unit. be FAT format to update it. Can’t work airplay with Operation System Requirement To use AirPlay, you must...
Page 110 FCC STATEMENT : This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.
