RoboLabs VTP1-075 User Manual

Popcorn display warmers

Advertisement

Quick Links

Popcorn display warmers
VTP1-075, VTP2-090, VTP2-120, VTP3-120
User manual
Read this manual before use and keep for future reference!
PDF version of this manual is available on www.robolabs.pro

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VTP1-075 and is the answer not in the manual?

Questions and answers

Summary of Contents for RoboLabs VTP1-075

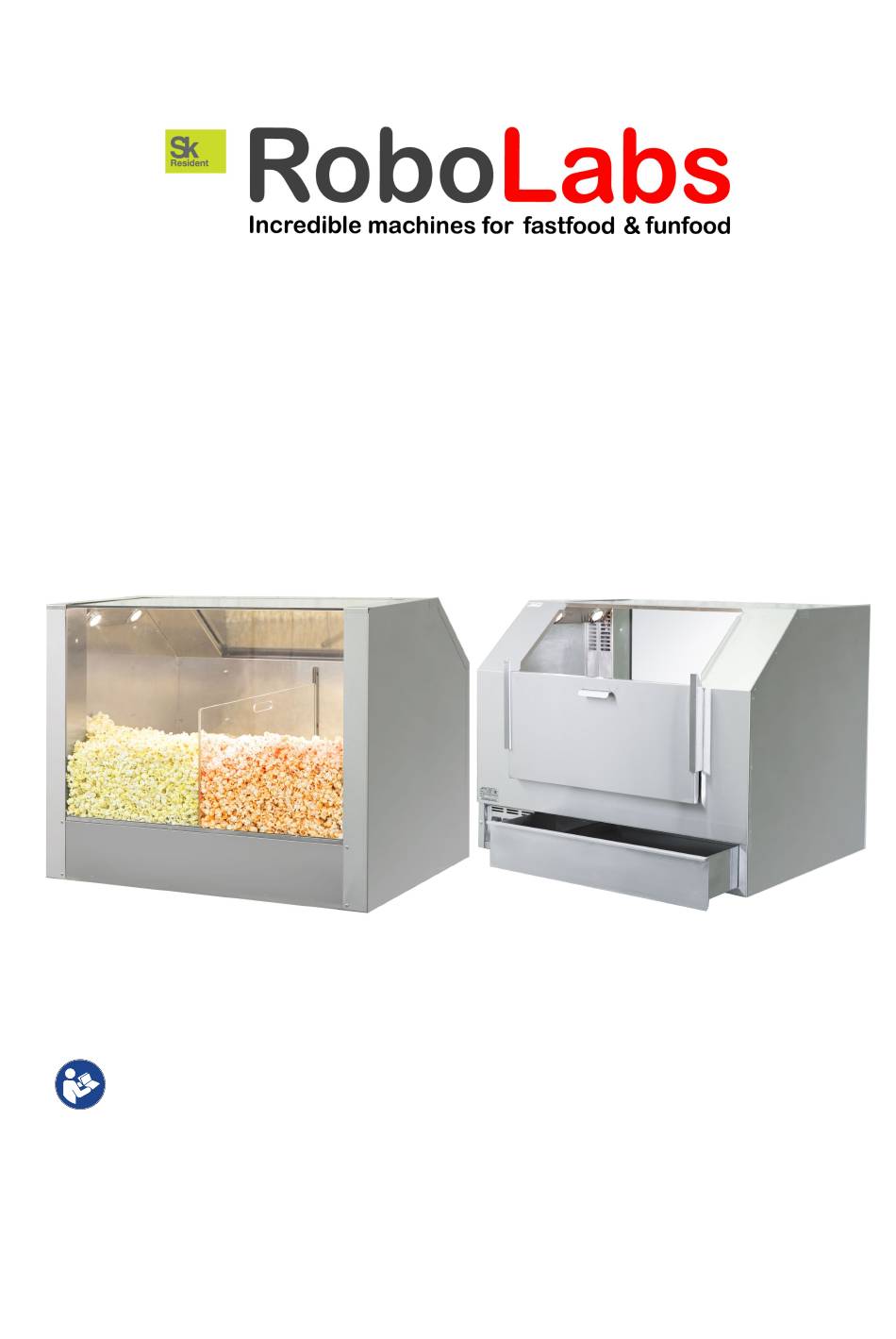

  • Page 1 Popcorn display warmers VTP1-075, VTP2-090, VTP2-120, VTP3-120 User manual Read this manual before use and keep for future reference! PDF version of this manual is available on www.robolabs.pro...
  • Page 2 Safety requirements This is the safety alert symbol. It is used to alert you to potential physical injury hazards. Obey all safety messages that follow this symbol to avoid possible injury or death. DANGER • Not grounded equipment can cause electric shock. Power outlet MUST have proper grounding to avoid electric shock.
  • Page 3: Table Of Contents

    Contents 1 Overview 1.1 Technical specifications ......1.2 Delivery set ........1.3 Design .
  • Page 4: Overview

    The unit is intended for professional use only. 1.1 Technical specifications Model VTP1-075 VTP2-090 VTP2-120 VTP3-120 Rated volume, liters...
  • Page 5: Design

    1.3 Design The unit consists of the following main components: Housing (1); Front glass (2); Front glass channel bar (3); Top glass (4); Divider (5); Controls (6); Crumb tray (7); Light fixture (8); Air ducts (9); Sliding lid (10): 1.4 Principle of operation Air inside the cabinet is being heated with internal heating elements.
  • Page 6: Power Requirements

    • Connect unit to the mains (see Power requirements section). For dimension drawings see Appendix A. 1.6 Power requirements DANGER • Power outlet MUST have proper grounding to avoid electric shock. • Presence of grounding must be checked on regular basis. •...
  • Page 7: Intended Use

    2 Intended use Control panel used to operate the unit. There are following items on the panel: Heat- ing/Air circulation switch (11); Light fixture switch (12); Thermostat adjusting knob (13); Heater pilot light (14): Order of operation • Open the sliding lid and fill unit with popcorn. Close the lid. •...
  • Page 8: Maintenance And Cleaning

    3 Maintenance and cleaning DANGER • ALWAYS unplug equipment before cleaning or servicing! • DO NOT use excessive water or water jet for cleaning. DO NOT spill or pour water on electric panels or parts. • Keep power cord and plug o the floor and water. WARNING •...
  • Page 9: Quality Control Check

    4 Quality control check ——————————————– ——————————————– Product name Serial no. The equipment is made with accordance to mandatory requirements of the state standards, actual technical documentation, and approved for use. QC Engineer STAMP HERE ——————————————– ——————————————– Signature Full name ——————————————– DD.MM.YYYY VTP popcorn display warmers user manual...
  • Page 10: Warranty Obligations

    Due to constant improvement of the equipment, technical specifications are sub- ject to change without prior notice! 6 Manufacturer details NPO Tvertorgmash LLC 11 Industrialnaya Street, Tver, 170100 Russia Technical support: Email: support@robolabs.pro Phone: +7 495 956 4000 VTP popcorn display warmers user manual...
  • Page 11: A Dimension Drawings

    A Dimension drawings All values in mm (+/- 2 mm tolerance). VTP1-075 746...750 VTP popcorn display warmers user manual...
  • Page 12 VTP2-090 896...900 VTP2-120 1197...1200 1080 1080 VTP popcorn display warmers user manual...
  • Page 13 VTP3-120 1197...1200 1080 1000 1080 VTP popcorn display warmers user manual...
