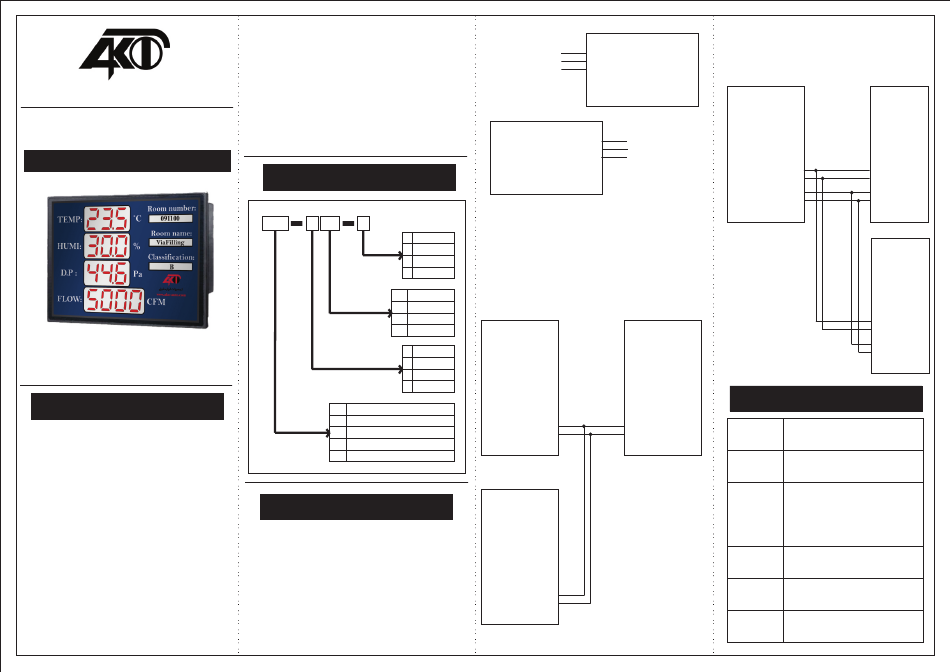

AKO CM Series Instruction Manual

®

Sensor and Equipment

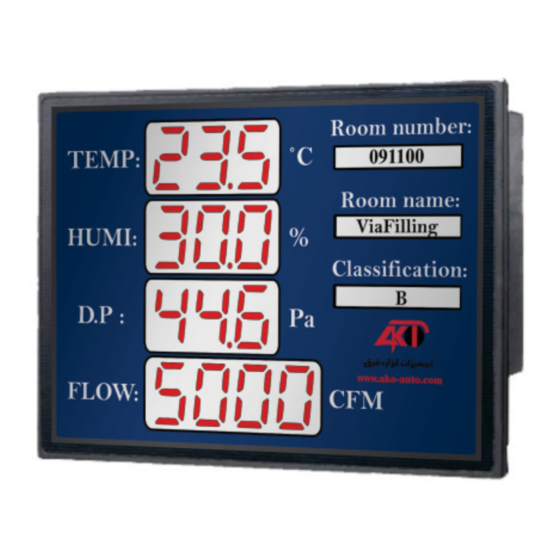

Clean Room Monitor
CM Series
Instruction Manual
Please read the following
safety considerations before use.

Safety considerations

Please observe all safety considerations for safe and
proper product operation to avoid hazards.
Warning:
Fail-safe device must be installed when using
the unit with machinery that may cause serious injury or
economic loss.(e.g. nuclear power control, medical equipment,
ships, railways, aircraft, combustion, safety equipment, etc.)
Warning:
Do not connect, repair or inspect the unit while
connected to a power source.
Warning:
Do not disassemble or modify the unit, please
contact us if necessary.
Warning:
check input power specification and check power
terminal polarity before connecting the power source.
Caution:
Do not use the unit outdoors.
Caution:
Do not touch the temperature \ humidity by hands.
Caution:
Do not use the water or oil-based detergent when
clean the unit.
Caution:
Do not use the unit where flammable or explosive gas,
direct sunlight, radiant heat, vibration or impact may be present.
Caution:
keep dust and wire residue from flowing into the unit.
Caution During use:
1. Do not store at the high temperature /humidity environment.
2. For cleaning use dry towel and do not use acid ,chrome acid,
solvent but alcohol.
3. Separate the unit cable from high voltage line. power line to avoid
inductive noise.
4.installation environment: it shall be used indoor and pollution degree 2
Failure to follow these instruction may result in product damage.

Ordering Information

TH R D1 C
C Current
Output
V
Voltage
Signal
M Mudbus
W Wireless
N No Display
Display
D1 LCD small
Type
D2 LCD large
7seqment
D3
R Room
Mounting
D
Type
W
Outside
O
TH Temperature and Humidity
DP Differential Pressure
Product
MD Motor Damper
Type
Clean Room Monitor
CM
MP Monitoring Pack Device

Terminal Connection

Power Supply:

AKO clean room Morintor Device can use
220VAC or 24VDC
L
220VAC (0.2A)
N
PE
+
AKO
-
CM-WD3-M CE

Modbus Connection:

AKO clean room Morintor Device can connect
with controller by Modbus RTU (as salave
device) for display 4 parameter on 7seqment.
AKO
CM-WD3-M
Duct
Wall
(Slave)
Node:#n
A
B
AKO
CM-WD3-M
(Slave)
Node:#n+1
A
B
AKO clean room Morintor Device can connect
with Sensor by Modbus RTU (as Master
AKO device) for display 4 parameter on 7seqment.
CM-WD3-M
AKO
CM-WD3-M
(Master)
24VDC (0.6A)
+
OUTPUT
24VDC -
A
B
Controller
(master)
Specification
A
Model
B
Power supply
Measuring
Range
Input
signal
Protection
class
Cable
Temperature
and humidity
sensor
(Slave)
v
GND
A
B
Differential
Pressure
sensor
(Slave)
V
GND
A
B
CM-WD3-M
220VAC (0.2A) or
24 VDC (0.6A)
TEMP.:0...50'C
HUMI.:0...100%
PRESS.:0...100P.a
Modbus RTU
IP 65
Ø 0.5mm , 4-Wire
