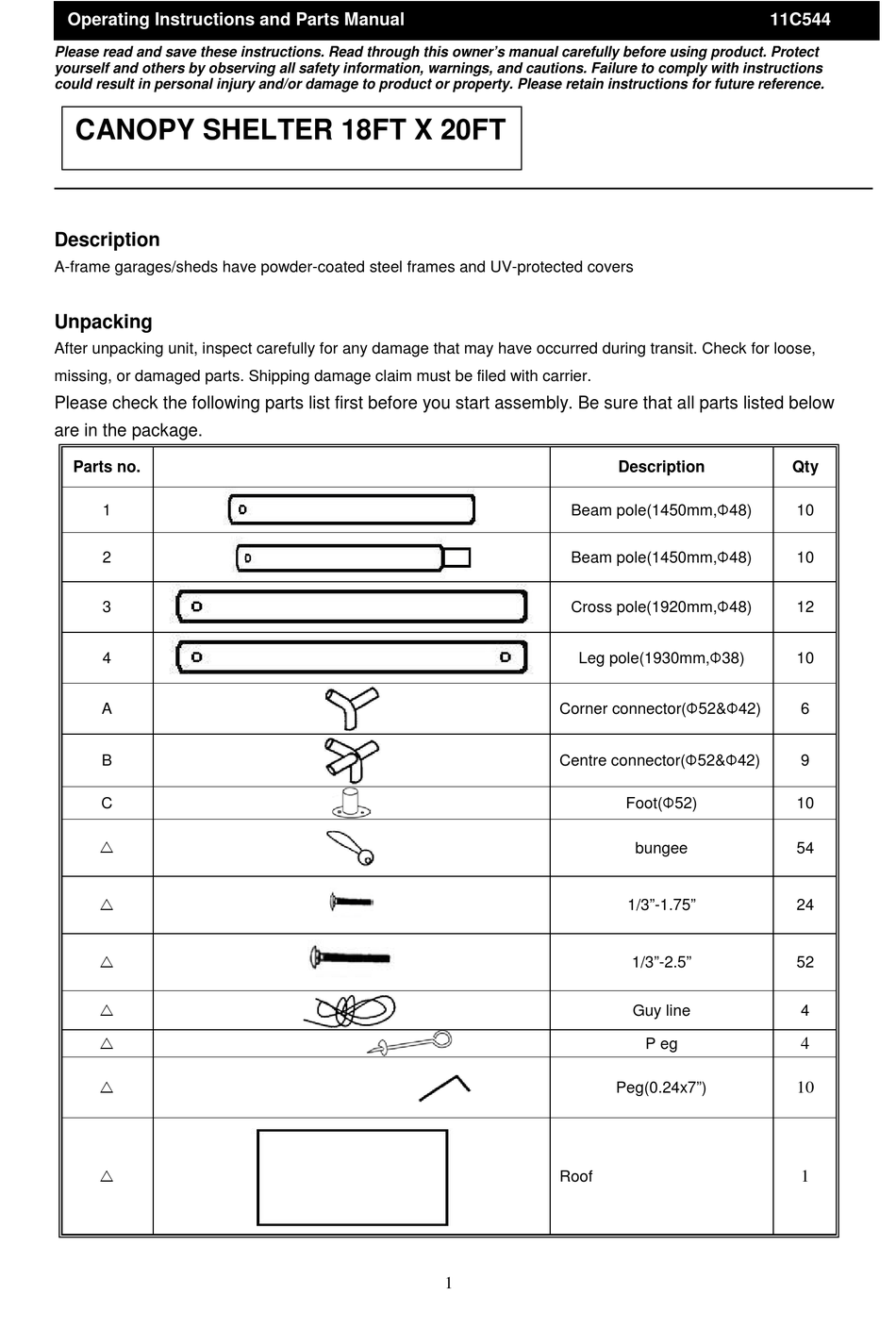

Operating Instructions and Parts Manual
Please read and save these instructions. Read through this owner's manual carefully before using product. Protect
yourself and others by observing all safety information, warnings, and cautions. Failure to comply with instructions
could result in personal injury and/or damage to product or property. Please retain instructions for future reference.
CANOPY SHELTER 18FT X 20FT
Description
A-frame garages/sheds have powder-coated steel frames and UV-protected covers
Unpacking
After unpacking unit, inspect carefully for any damage that may have occurred during transit. Check for loose,
missing, or damaged parts. Shipping damage claim must be filed with carrier.
Please check the following parts list first before you start assembly. Be sure that all parts listed below
are in the package.
Parts no.
1
2
3
4
A
B
C
Beam pole(1450mm,Ф48)
Beam pole(1450mm,Ф48)
Cross pole(1920mm,Ф48)
Leg pole(1930mm,Ф38)
Corner connector(Ф52&Ф42)
Centre connector(Ф52&Ф42)
Roof
1
11C544
Description
Foot(Ф52)
bungee
1/3"-1.75"
1/3"-2.5"
Guy line
P eg
Peg(0.24x7")
Qty
10
10
12
10
6
9
10
54
24
52
4
4
10
1
