Page 1: Table Of Contents
TABLE OF CONTENTS FEATURES ..................1 NEW WISDOM CAP LAMP TECHNICAL SPECIFICATIONS ... 3 NEW WISDOM CAP LAMP PARTS ........... 4 USER GUIDE FOR KL4MS KL5MS AND KL8MS ......5 TROUBLE AND TROUBLESHOOTING ..........9 NOTES ....................9 SAFETY WARNINGS ................. 9 PACKAGE .................. -
Page 3: Features
Features New Wisdom corded miner cap lamp, KL4MS, is a kind of portable lighting equipment, which applies the technologies of the latest CREE LED lighting source and Li-ion battery. KL5MS applies the technologies of the latest CREE LED lighting and 6.6Ah Li-ion battery, which makes the brighter and lighter cap lamp. - Page 4 Two charging ways 1.4.1 Traditional charging way The cap lamps can be charged by the matching single chargers and charging racks. 1.4.2 Convinient charging way with USB Nowadays, the charging supply of mobile phone mostly applies the standard output of USB 5V, which makes it possible to charge the LED cap lamps with the same magnetic USB of the general mobile phone.
-
Page 5: New Wisdom Cap Lamp Technical Specifications
NEW WISDOM Cap Lamp Technical Specifications Features KL4MS KL5MS KL8MS ≧4.4Ah ≧6.6Ah ≧8.8Ah Rated capacity 3.7V 3.7V 3.7V Rated voltage ≧13h ≧24h ≧13h ≧13h ≧16h ≧16h Continuous working (standard (standard (super-long time (standard version) (long version) (long version) version) version) -
Page 6: New Wisdom Cap Lamp Parts
NEW WISDOM Cap Lamp Parts... -
Page 7: User Guide For Kl4Ms Kl5Ms And Kl8Ms
User Guide of KL4MS、KL5MS and KL8MS Charging 4.1.1 Traditional Charging Way Connect the single charger to the power supply or switch on the charger rack, the indicator light of the charger turns green. Connect the cap lamp with the charger. Fix the brass pin (cathode) of the charger into the hole of the... - Page 8 Rotate the head lamp 180 degrees clockwise, make sure the anode touch of the head lamp is closely connected to the connected metal base (anode). Then the indicator light turns red, which means the lamp is being charged. When it’s charged by NWB-25A single portable charger or the intelligent chargers racks, the indicator light of the charger keeps flashing from green to red, it means the battery has been charged at least 90%.
- Page 9 Take away the USB wire from the cap lamp, and then use the cap lamp. Switch The electric switch of KL4MS,KL5MS and KL8MS is waterproof. It works as follows: Battery Indication When the cap lamp is off, press its switch more than 2 seconds. Then the soft light of the main and auxiliary light source will indicate the remaining battery.
- Page 10 Low battery warning 4.4.1 The normal battery warning: About 1 hour before the battery power is out, the main LED light of KL4MS.KL5MS.KL8MS flashes softly (one time flashing for every five seconds) to remind the user that the power is nearly used up and needs to be recharged.
-
Page 11: Trouble And Troubleshooting
Trouble and Troubleshooting Trouble description Trouble analysis troubleshooting Light is not on when pressing the Battery power is used up Charge the lamp button Working time is less than 13 hours Battery is not fully charged Making sure the lamp well connected to the charger when charging Notes... -
Page 12: Kl4Ms,Kl5Ms And Kl8Ms Part Drawing

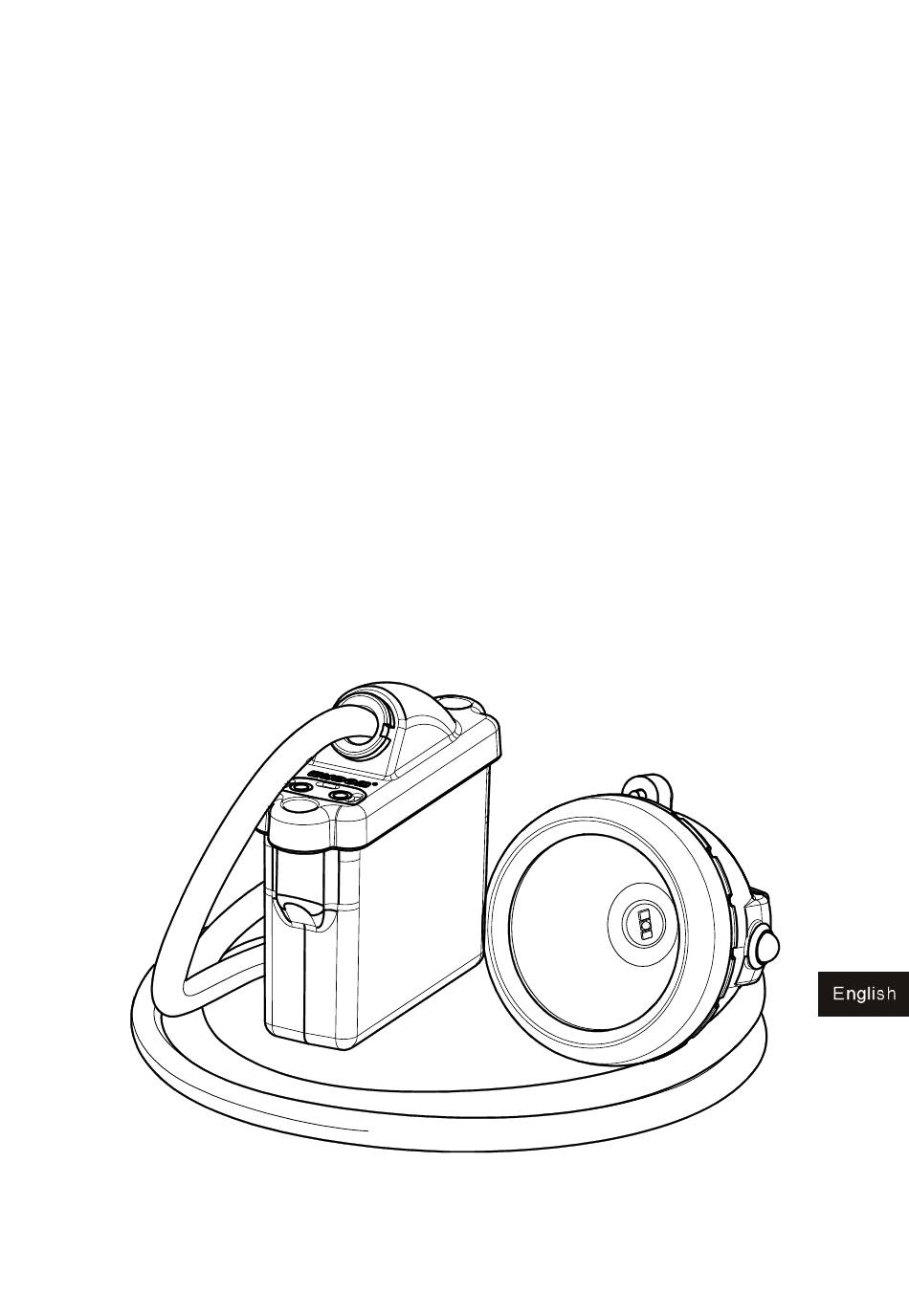

KL4MS,KL5MS,KL8MS PART DRAWING... - Page 13 WISDOM www.wisdom.hk Telephone：0086-755-83911841 Mailbox：info@wisdom.hk Address：4-306, xianglixincuen, Hongli West Road, shenzhen, China Zip code：518172...
