Summary of Contents for Cookworks IM2104-GS

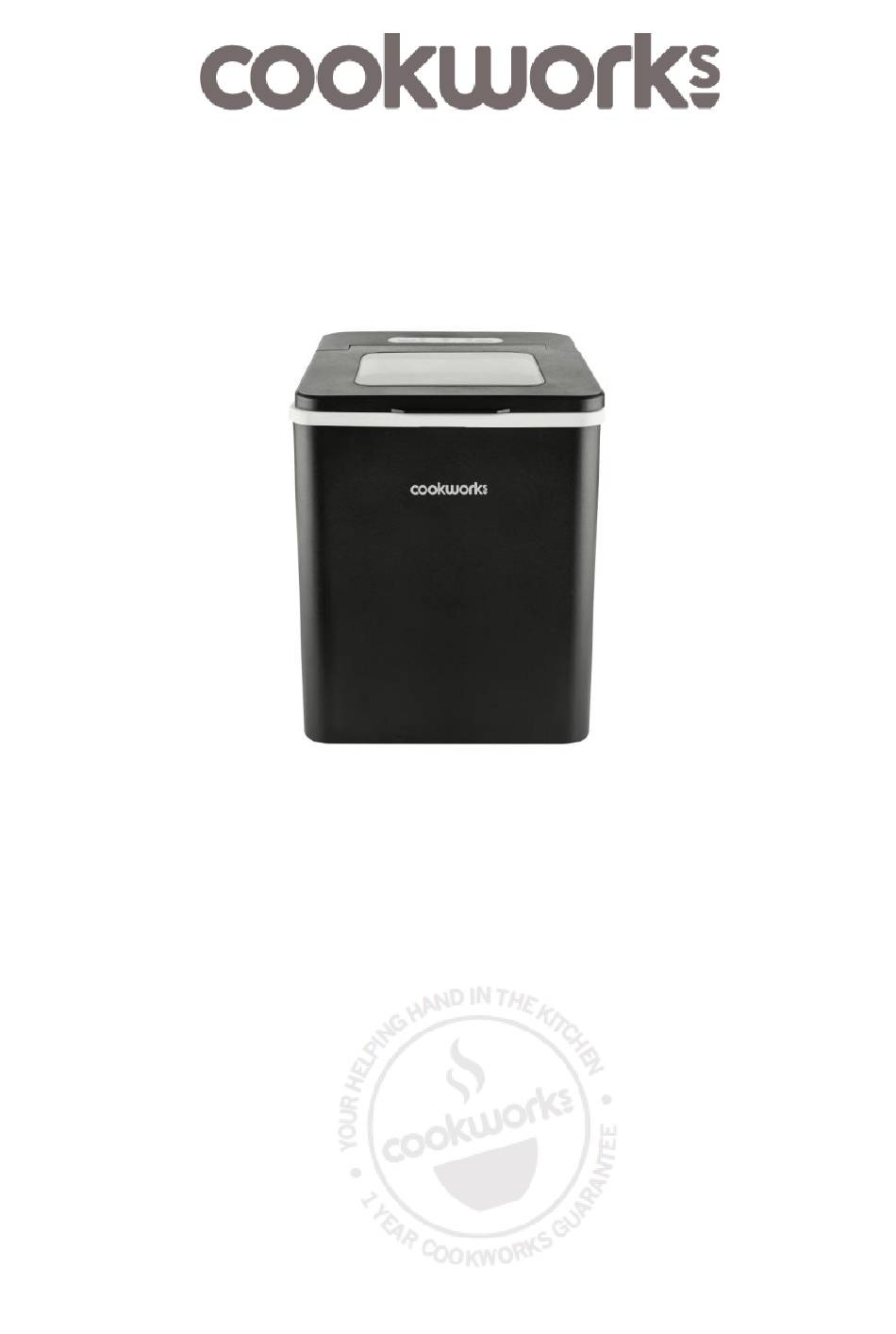

- Page 1 Ice Maker Model No. IM2104-GS Care & Instruction Manual For household and indoor use only Please read these instructions before use and retain for future reference Issue 1 28/7/2021...
-
Page 2: Electrical Safety
ELECTRICAL SAFETY You should only plug the appliance into a 220V‐240V AC, 50Hz supply. Connecting it to other power sources may damage the appliance and will invalidate the guarantee. Switch off and unplug when not in use and before cleaning the appliance. - Page 3 WARNING! This appliance is intended exclusively for use in domestic households. It is not suitable for commercial use. Risk of fire / flammable materials. This product contains small amount flammable refrigerant. In the event of a refrigerant leak, unplug the appliance, open the windows in the area or move appliance outside away from direct sunlight or sources of ignition.
- Page 4 PARTS 1. Housing 7. Ice collection 12. Filter 2. Lid basket 13. Water reservoir 3. Viewing window 8. Ice scoop 14. Max water level 4. Control panel 9. Power cable 15. Drain plug 5. Fixed cover 10. Ice shovel 16. Foot 6.
-
Page 5: Control Panel
CONTROL PANEL 17. On / OFF button 20. Clean indicator 23. Add water 18. Small cube 21. Operational indicator indicator mode (SELECT) 24. Power indicator 19. Large cube button indicator 22. Ice full indicator INDICATORS Ice full Activates when the ice basket is full. Production stops automatically and will restart when ice is removed from the ice basket. -
Page 6: Before First Use
FITTING THE ICE COLLECTION BASKET Fig. 1 BEFORE FIRST USE 1. Unpack the appliance and dispose of all packaging safely. 2. Check all parts are present and become familiar with the parts of the ice maker and how to fit and lift out the ice collection basket (fig.1). -
Page 7: Ice Maker Use
ICE MAKER USE 1. Place the ice maker in the desired location and ensure the oil and gas have had chance to settle if the appliance has been moved. 2. Lift the lid, remove the ice collection basket (if fitted). 3. -
Page 8: Refilling The Water Reservoir
REFILLING THE WATER RESERVOIR If the ADD WATER indicator activates the water reservoir requires to be refilled and the ice maker will pause automatically. 1. Open the lid and lift out the ice collection basket. 2. Using a jug, fill the water reservoir with cool drinking water. Do not exceed the MAX level mark. - Page 9 8. Once the water has been circulated, switch off the appliance, open the drain plug and empty the water again. 9. Refit the drain plug (fig 4), reposition the ice maker, fill the water reservoir with fresh drinking water and use as normal. Cleaning the ice maker Clean the icemaker once per week if in regular use, when the CLEAN indicator activates, before and after prolonged storage.
- Page 10 TROUBLESHOOTING Observation Potential cause / solution ADD WATER Low water level. Refill water reservoir and restart indicator icemaker. illuminates Filter at bottom of water reservoir is blocked. Clean the ice maker and filter Pump malfunction. Call helpline 0345 640 3030 ICE FULL The ice basket is full.
-
Page 11: Technical Specification
TECHNICAL SPECIFICATION Cookworks Ice Cube Maker Model IM2104-GS Rated Voltage & Frequency 220 - 240V ~ 50Hz Rated Power Input 150W Class rating 1 (earthed) BS 1362 fuse Refrigerant Type R600a Weight Climate class ST / SN/ N /T Insulating material... - Page 12 Milton Keynes, MK9 2NW. Argos (N.I.) Ltd, Forestside Shopping Centre, Upper Galwally, Belfast, United Kingdom, BT8 6FX. Argos Distributors (Ireland) Limited, Unit 7, Ashbourne Retail Park, Ballybin Road, Ashbourne, County Meath, Ireland www.argos.co.uk/cookworks Tel: 0345 640 3030 Issue 1 28/7/2021...
- Page 13 Issue 1 28/7/2021...
