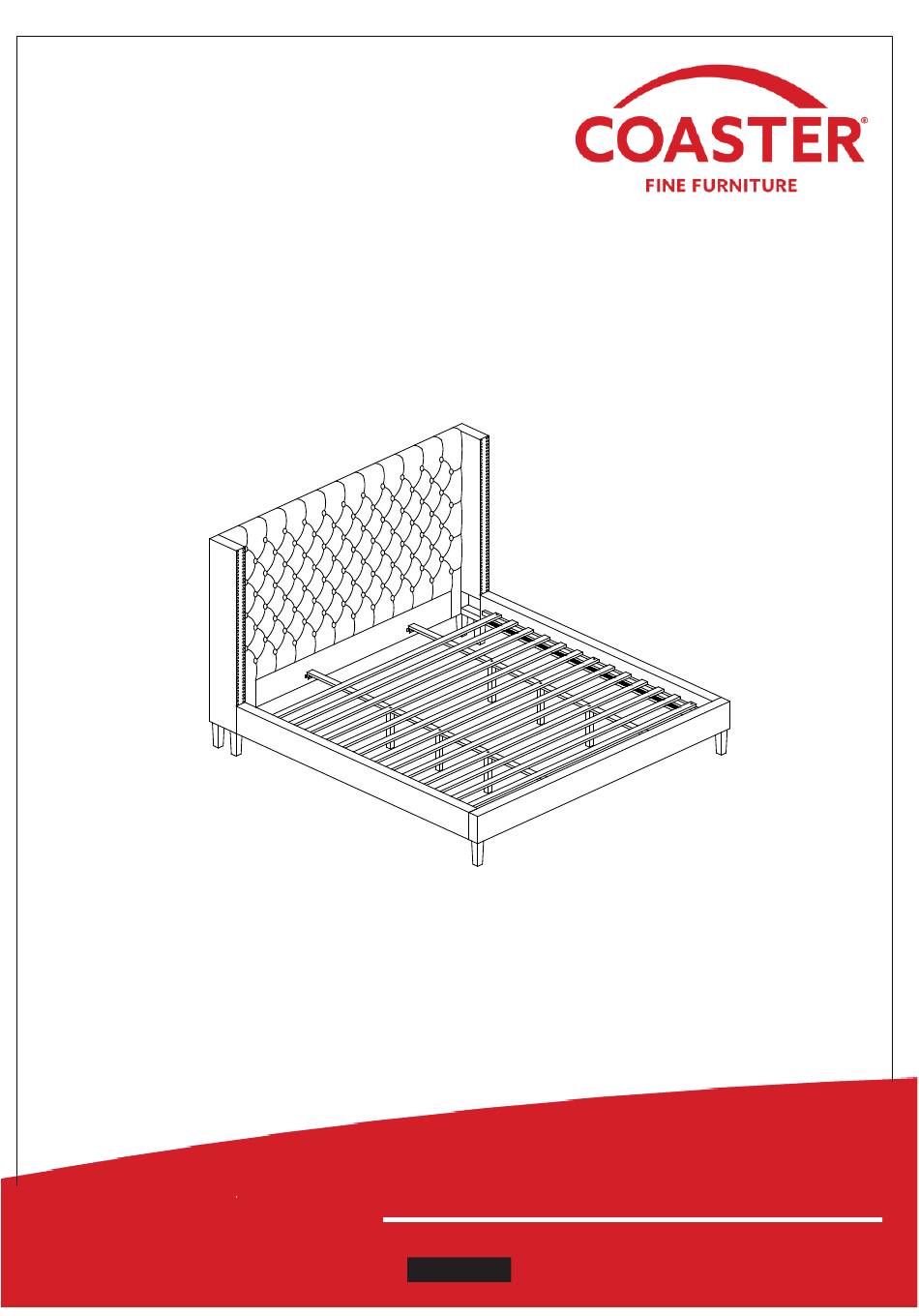

- Page 1 ASSEMBLY INSTRUCTIONS COASTER FINE FURNITURE Fine Furniture for every stage of life 305902KE (B1&B2) Eastern King Bed REVISION 0 : 07/18/2019 PAGE 1 OF 7 COASTERFURNITURE.COM PAGE 1 OF 2...
- Page 2 305902KE (B1&B2) ITEM: ASSEMBLY INSTRUCTIONS ASSEMBLY TIPS: 1. Remove hardware from box and sort by size. 2. Please check to see that all hardware and parts are present prior to start of assembly. 3. Please follow attached instructions in the same sequence as numbered to assure fast & easy assembly.
- Page 3 1. Don’t attempt to repair or modify parts that are broken or defective. Please contact the store immediately. 2. This product is for home use only and not intended for commercial establishments. HARDWARE IDENTIFICATION Z-B2 (BOX 2) - HARDWARE PACK IS LOCATED IN 305902KE (B2) BIG LOCK WASHER 4PCS SHORT BOLT 4PCS (5/16”...
- Page 4 305902KE (B1&B2) ITEM: ASSEMBLY INSTRUCTIONS STEP 1 BACK VIEW (WITH ‘L’ LABEL) (WITH ‘R’ LABEL) STEP 2 (WITH ‘R’ LABEL) PAGE 4 OF 7 COASTERFURNITURE.COM...
- Page 5 305902KE (B1&B2) ITEM: ASSEMBLY INSTRUCTIONS STEP 3 (WITH ‘F’ LABEL) (WITH ‘G’ LABEL) STEP 4 3 10 PAGE 5 OF 7 COASTERFURNITURE.COM...
- Page 6 305902KE (B1&B2) ITEM: ASSEMBLY INSTRUCTIONS STEP 5 STEP 6 PAGE 6 OF 7 COASTERFURNITURE.COM...
- Page 7 305902KE (B1&B2) ITEM: ASSEMBLY INSTRUCTIONS STEP 7 COMPLETE PAGE 7 OF 7 COASTERFURNITURE.COM...
- Page 8 305902KE (B1&B2) ITEM: INNER SIZE : 76.57" x 80.31" INNER SIZE : 76.57" x 80.31" 81.10" 48.43" 61.22" 2.16" 3.94" 15.16" 77.17" 8.07" 77.36" 7.09" 79.96" 79.92" 85.04" Note : Dimension tolerance ±5% COASTERFURNITURE.COM...
