Summary of Contents for RFRemotech AlphaFire X Series

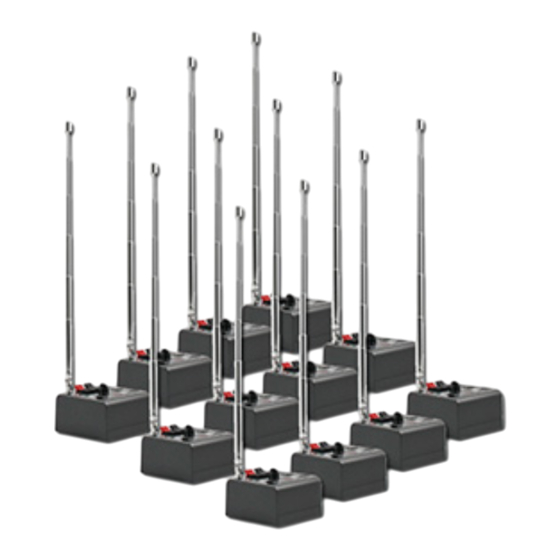

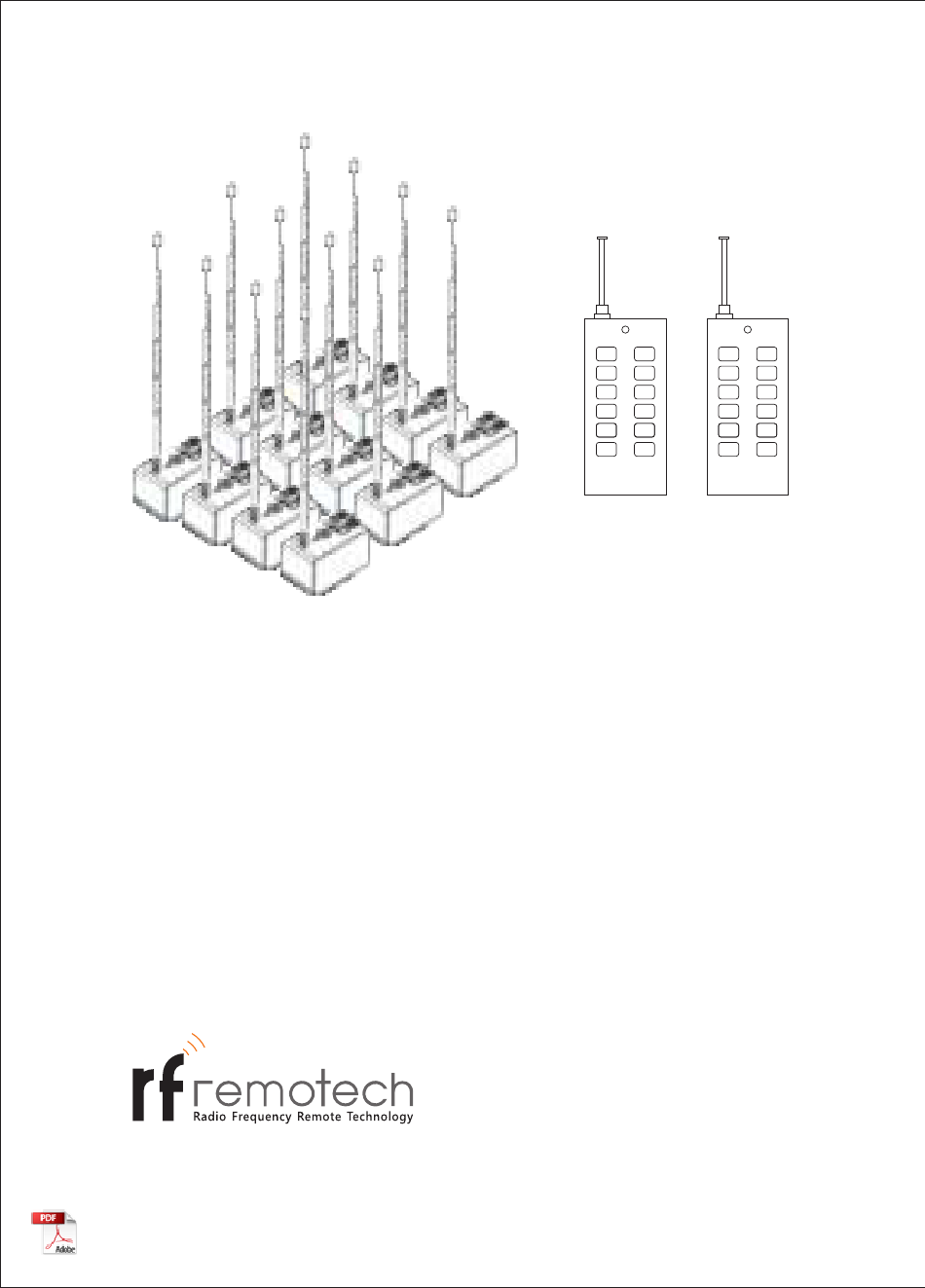

- Page 1 AlphaFireXSeries(9thGeneration) User'sManual Safe, Easy and Reliable, With remote controllable service.
-
Page 2: Table Of Contents
Contents ------------------------------------------------------------------------1 Warning!!! ----------------------------------------------------------------1 A.FiringModule -----------------------------------------------------------------------1 A1.Parts -------------------------------------------------------------2 A2.Specification ---------------------------------------2 A3.HowtoInsert/RemoveBattery ----------------------------------------------------2 A4.3-PositionSwitch#2 --------------------------------------------------2 A5.LowPowerIndication ---------------------------------------------------------3 A6.LEDIndicator#4 -------------------------------------------------------------------------3 A7.Test ----------------------------------------------------4 B.Transmitters/Remotes -------------------------------------------------------------4 B1.TransmitterA -------------------------------------------------------------4 B2.TransmitterB -----------------------------------------------------5 C.Synchronization(SYNC) --------------------------------------------------------------5 C1.BeforeSYNC ---------------------------------------------5 C2.SynchronizeTransmitterA ---------------------------------------------5 C3.SynchronizeTransmitterB -------------------------------------------------6 C4.CheckSynchronization ------------------------------------------------6 C5.DeleteSynchronization -----------------------------------------------------------------------------6 D.Fire ------------------------------------------------------------7 D1.ManualFiring --------------------------------------------------------7 D2.SequentialFiring... -
Page 3: Warning
You are responsible for the safe and legal use of this device according to the laws and regulations of your country and/or state / province / district. RFRemotech is not responsible for illegal or unsafe use of this device. The buyer/user assumes all responsibility and liability in the use of this device and further agrees, by purchase and/or use of this device, to indemnify and hold harmless RFRemotech against all liability for injury, loss, or damage direct or consequential arising out of the use of, or inability to use this device. -
Page 4: A2.Specification
A2.Specification ModelNo.:RF1XG9 Power:1x9Vbattery,6LR61or6F22orothers FiringCurrent: >750mA,Max.9A TestCurrent: <1mA LowPowerIndication: 1ohm,<700mA Sizes: L62xH46xW38mm,antennaisretractileandcanbefolded Power/LowPowerIndication,FiringIndication,RFSignalIndication, OverloadProtection,ShortWarningIndication A3.Howto Insert/Remove Battery Insert Battery Remove Battery A4.3-PositionSwitch#2: SYNC-TEST:Tocheckiftheconnectionofigniter/e-matchisingood condition,see“Test”below,orpresstheSYNC-TESTbutton#3to synchronizeordeletetransmitters. ARM: Readytofireigniter/e-match.Thereare2firingmodesselectable. See“E.TwoFiringModes”below. A5.LowPowerIndication: Itisspeciallydesignedtocheckifthebatteryispowerfulenoughtofire anigniter.Ifthebatteryistoolow,theDIMRedLEDwillblink.The checkingresultisjustforreference.Ifusersuseasensitiveigniter,itcan stillfirethoughtheDimRedisblinking.Onthecontrary,Ifusersuse igniterswhichrequiremorecurrenttofire,thoughtheDimRedisnot blinking,thefiringwillprobablystillfail. -
Page 5: A6.LedIndicator#4
A6.LEDIndicator#4: TwoColorLED -RedandGreen. -Aheavycurrentisflowingout.Itappearswhen3-PositionSwitch#2is atARMandthemoduleisfiringorthemoduleʼscircuitisshort. DimRed -Itappearswhen3-PositionSwitch#2isatSYNC-TESTposition andnoigniterisconnectedortheigniterisbroken. BlinkingDimRed -Itappearswhenthepowerischeckedlowtofirean igniter. Green -When3-PositionSwitch#2isatSYNC-TESTandtheigniteristested BlinkingGreen -Themoduleiscountingthefiringsequence. Orange -RedandGreenareoninthesametime,armedandreadytofire. Itappearswhen3-PositionSwitch#2isatARM. A7.Test Whenthefiringmoduleispoweredandanigniteris connectedtoWiringTerminals#1,shift3-Position Switch#2toSYNC-TEST,LEDIndicator#4willbelit green,otherwisetheigniterisbrokenorthewires arenotconnectedwell. OnlywhentheconnectionistestedOK,theigniter canfiresuccessfully.... -
Page 6: Transmitters/Remotes
B.Transmitters/Remotes Manual Firing Manual Firing SequentialFiring TransmitterA(1button) TransmitterA(12buttons) TransmitterB Thetransmitters/remotesneedtobewiththefollowingfeatures: OOKModulation; 433.92MHz; LearningCode. Afiringmodulecanworkwith2typesoftransmitter/remote: B1.TransmitterA-ManualFiringTransmitter Normallyitisa1,2,4or12buttondevice,everybuttoncanfireits matchingfiringmodules.Buttonshavenumerals1,2,…,12orletters A,B,C,Drespectivelyorblank. B2.TransmitterB-SequentialFiringTransmitter: Itisa12buttondevice,thebuttonshavemarks0.1,0.2,…,0.9,1.0,2.0 andALLrespectively,Button0.1canfiremultiplefiringmodulesoneby oneinintervaltime0.1second,Button0.2canfirein0.2secondsetc., whenButtonALLispressed,theintervaltimeiszero.... -
Page 7: Synchronization(Sync)
C.Synchronization(SYNC) C1.BeforeSynchronization Usersshouldbeawareofthefollowinginformationordosomeoperations likebelow. It'sbetterusersdothestep“DeleteSynchronization”belowinthefiring modulebeforesynchronization. Onlywhenatransmitter/remotehasalreadybeensynchronizedtoafiring module,thebothcanworktogether.IfTransmitterBissynchronizedbut TransmitterAisnotyet,theTransmitterBwillnotfunction. AfiringmodulecanstorecodesofoneButtonofTransmitterA,one TransmitterB.Ifuserssynchronizethesametypeoftransmitter/remote andbutton,theformertransmitter/remoteandbuttonwillbereplaced. C2.SynchronizeTransmitterA Shifttherodof3-PositionSwitch#2ofthefiring modulefromOFFtoSYNC-TEST,pressanddon't release#3SYNC-TESTbuttonmorethan3seconds untilLEDIndicator#4islit,thenpressonebuttonof TransmitterAwithin3seconds,LEDIndicator#4 willblinktwiceandthengobacktothestatebeforedoingSYNC,the buttonofthetransmitter/remoteissynchronizedtothefiringmodule successfully. Thebuttonʼsnumeralofthetransmitter/remoteisalsorememberedas the SequencingNumber whenthemoduleisimplementingSequential Firing. C3.SynchronizeTransmitterB Shifttherodof3-PositionSwitch#2ofthefiringmodulefromOFFto SYNC-TEST,pressanddon'trelease#3SYNC-TESTbuttonmorethan3 secondsuntilLEDIndicator#4islit,thenpressanybuttonofTransmitter Bwithin3seconds,LEDIndicator#4willblinktwiceandthengobackto thestatebeforedoingSYNC,thetransmitter/remotehasbeen synchronizedtothefiringmodulesuccessfully. -
Page 8: C4.CheckSynchronization
C4.CheckSynchronization Shifttherodof3-PositionSwitch#2fromOFFtoSYNC-TEST, 1-IfButton5ofTransmitterAisalreadysynchronizedtothefiringmodule, pressButton5ofthetransmitter,theLEDIndicator#4willblinkonce. ItindicatesButton5issynchronized.Thesamewithotherbuttons. 2-Aftertheformerstepisdone,pressButton0.7ofthesynchronized TransmitterB,theLEDIndicator#4willblink5timesinintervaltime0.7 seconds.ItindicatestheTransmitterBissynchronized. C5.DeleteSynchronization Shifttherodof3-PositionSwitch#2fromOFFtoSYNC-TEST,pressand don'treleasebuttonSYNC-TEST#3morethan6seconds,theLED Indicator#4willbelit,donʼtreleaseyetuntiltheLEDblinkstwiceand goesbacktothestatebeforepressingbuttonSYNC-TEST#3,allstored codesoftransmittersarecleared. Firing Commands D.Fire Firing Module Remote Fire Igniter Beforefiring,youneedtomakesurefollowing: Firingmodulesandtransmitters/remotesarepoweredwell,noone ofthemhasLowPower. Theseunitsarealreadysynchronized. IgnitersareconnectedwellandtestedOK. Theantennasofthemodulesandtransmitters/ remotesshouldbepulledandextendedout. Itʼsbetterifthefiringmodulesareplacedinthe height1.5mormoreabovetheground. Therodof3-PositionSwitch#2isatARM. Thedistancefromthetransmitter/remotetothemodulesmustbe lessthantheonesmarkedonthetransmitters/remotes,thenmore than0.5m.... -
Page 9: D1.ManualFiring
ThisdiagrammeansTransmitterBandthe buttonsofTransmitterAarealready synchronizedtothecorrespondingmodules respectively. Manual Firing SequentialFiring TransmitterA TransmitterB Mode1:ManualFiring UseTransmitterA,pressthecorresponding buttonStofirethematchingmodules. Mode2:SequentialFiring UseTransmitterB,pressButton0.1tofirethematchingmodulesatthe correspondingSequencingNumbers1,2,3,...inIntervalTime0.1s; Button0.2inIntervalTime0.2s,thesamewithotherbuttons. - Page 10 Thanks for using RFRemotech products! Manufacturer:RFRemotech E-mail:service@RFRemotech.com Http://www.RFRemotech.com August,2021...
