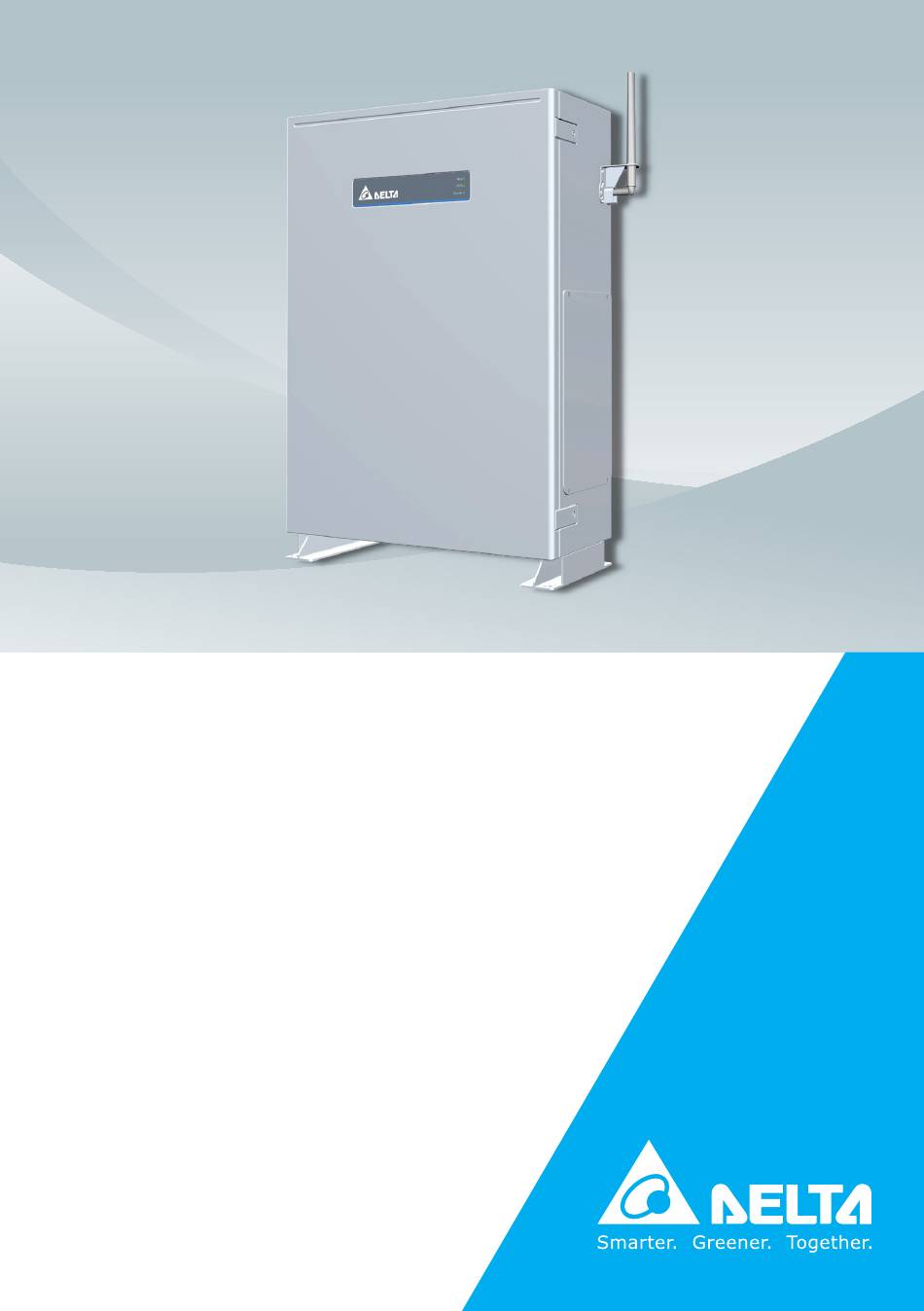

Page 1 Residential AC storage system BX6.3_AC100 Operation and Installation Manual www.deltaww.com...
Page 3: Table Of Contents
Table of Contents ......... . . 1　Safety .
Page 4 ....... . 　 4.1.5　 Discharge first mode ........　...
Page 5 ......Figure 4-1 : Self-consumption mode current flows ......Figure 4-2 : Self-consumption mode behavior .
Page 6: 1　Safety
DELTA ELECTRONICS, INC. Service engineers and end users may not divulge the information contained herein or use this manual for purpose other than those strictly connected with correct use of the product.
Page 7: General Safety
Safety 1.2 General Safety IMPORTANT SAFETY INSTRUCTIONS : SAVE THESE INSTRUCTIONS ! - Please read these instructions carefully and keep them for later use. To prevent any personal injury and any property damage, also ensure long-term operation of the AC Storage System, you must read this section carefully and review all the safety instructions at all times before using this AC storage system.
Page 8: Symbols
Safety 1.2.2 Symbols This section describes the definition of the symbols in this manual. In order to prevent both personal injury and property damage, and to ensure long-term operation of the product, please read this section carefully and follow all the safety instructions while you use the product. DANGER! - This warning indicates an immediate hazard which will lead to death or serious injury may occur.
Page 9: Safety Instructions
Safety 1.2.3 Safety Instructions The AC Storage System should not be installed under direct sunlight or on flammable surfaces. Please make sure the AC Storage System is mounted tightly on a solid / smooth surface. The optimal temperature range for the AC storage ...
Page 10 Safety DANGER! - This warning indicates an immediate hazard which will lead to death or serious injury may occur. (1) Electrical Shock Do not touch the terminals of the battery module without protectors. Be grounded with the specified conditions. High voltage may occur between the positive and the negative terminals. Electric shock impairs health or may cause threat to life.
Page 11 Safety (6) Direct Connection Do not connect the battery module to AC power or unspecified DC power. This may cause the battery module's damage to leak electrolyte, generate heat, smoke, catch fire, or explode. (7) Use in Other Equipment Do not use the battery module for any other purposes or connecting unspecified equipment.
Page 12 Safety WARNING ! - This warning indicates a possible hazard which may lead to death or serious injury may occur. (1) Magnetism Do not place the battery module near strong magnetism. (e.g., electromagnetic cooker, etc. ) This may cause the battery module's damage to leak electrolyte, generate heat, smoke, catch fire, or explode.
Page 13: 2　Introduction
Introduction 2　Introduction 2.1 About this Manual The user manual is valid for the following device types : • BX6.3_AC100 • BX6.3_AC101 • BX6.3_AC100 + BX6.3_EX100 • BX6.3_AC101 + BX6.3_EX100 • BX12.6_AC100(BX6.3_AC100 associated with BX6.3_EX100) • BX12.6_AC101(BX6.3_AC101 associated with BX6.3_EX100) The DELTA BX6.3_AC100 Series have 6 models as shown in Figure 2-1. Delta reserves the right to make modifications to the content and technical data in this user manual without prior notice.
Page 14: Product Description
Introduction 2.2 Product Description This device is an ac coupling battery system with following features: • Integrated energy management system • Integrated charger controller and inverter • Non-isolated The system diagram of BX6.3_AC100 is shown as Figure 2-2. Delta’s BX6.3/ 12.6_AC100 series with high reliability Li-ion battery is a home energy storage solution with 6.3/12.6 kWh capacity.
Page 15 Introduction 2.4 Product Overview The shipping components of DELTA BX6.3_AC100 are shown as Figure 2-3. ② ④ ⑤ ⑥ ③ ① ⑦ ⑧ ⑨ ⑩ ⑪ Figure 2-3 : Shipping Components Table 2-1 : Packing list Object Description Delta BX6.3_AC100 Residential AC ESS The Instruction to provide the information of safety, 2 Quick Installation Guide...
Page 16 Introduction Figure 2-4 shows the dimensions of DELTA BX6.3_AC100. Figure 2-5 shows the details of interface. unit: mm Figure 2-4 : Dimensions Wi-Fi Reset Push Battery AC Output Button Earth Ex Comm. COMM. RS-485 It is prohibited to open the front door. Dry contact It may cause failure.
Page 17 Introduction Please refer to Figure 2-6 for the location of product label. You can identify the model number and the specifications by the information on the product label. In Australia and New Zealand, users can also identify the supported Demand Response Modes (DRMs) of BX6.3_AC100 here.
Page 18: Led Indicators
Introduction 2.5 LED Indicators The DELTA BX6.3_AC100 has three different color LED notification on the front cover of the case that signal various system statuses: Table 2-4 : LED Indicators LED Status Definition Grid GREEN ON On Grid mode GREEN FLASH 1s ON/OFF On Grid count down GREEN FLASH 0.1s ON/OFF Grid setting “default”...
Page 19: 3　Installation
Installation 3 Installation WARNING ! - Do not install BX6.3_AC100 near or on flammable surfaces. - Please mount BX6.3_AC100 tightly on a solid / smooth surface. - Install BX6.3_AC100 in a location that prevents damage from flooding. - Do not expose BX6.3_AC100 to ambient temperatures above 60°C or below -20°C. - Operating or storing BX6.3_AC100 at the temperatures out of its specified range might cause damage to BX6.3_AC100.
Page 20: Unboxing And Review
Installation 3.2 Unboxing and Review The unpacking procedure of BX6.3_AC100 is shown as Figure 3-1. ① ② ③ ③ Require two or more persons to move the battery inverter. There is an optional handle to easily stand up BX6.3, please see section 3.3 for detail.
Page 21 Installation Handle position DC cabling area AC cabling area AC cabling area Prohibit to force with the DC/AC cabling area. Require two or more persons to move the battery inverter. Figure 3-2 : General handling method...
Page 22: Handle (Optional)
Installation 3.3 Handle (optional) Step 1 ① ② ① Step 2 ③ Handle position ② Prohibit to force with the DC/AC cabling area. Figure 3-3 : Handling with optional transport handle...
Page 23 Installation Step 3 Handle position cabling area cabling area cabling area cabling area Prohibit to force with the DC/AC cabling area. Require two or more persons to move the battery inverter. Please lock screw (0.5N • m) plugs on the case after installation to avoid water inflow.
Page 24: Mechanical Installation
Installation 3.4 Mechanical Installation WARNING ! - BX6.3_AC100 should be installed by a trained and experienced installer designated by the retailer. - Having the product installed by a non-specialized installer is very dangerous and can cause damage or injury. ATTENTION - Please check the space for installation which meets the recommended location.
Page 25 Installation CAUTION ! 500 mm - The optimal temperature range for BX6.3_AC100 and BX6.3_EX100 to operate is -10° to 45°C. Figure 3-6 : Recommended Installation Space with Flex Inverter Please keep enough space for wiring and pipping. (Max.: 400 mm) Figure 3-7 : Recommended Installation Space of BX12.6_AC100...
Page 26 Installation The recommended spacing to wall is 100mm, please be sure the minimum space should more than 30mm. Be sure to select the flat floor surface for installation and strength can afford storage system weight. The Power ON/OFF button is located at the left side of BX6.3_AC100, please make sure enough space is reserved to access this button.
Page 27 Installation To install the wiring cover on BX6.3_AC100, please follow the procedure below: - BX6.3_AC100 has a Φ38x76 backward hole for AC and COMM wiring, use 4 screws to fix side cover after wiring. - For BX12.6_AC100 model installation, please remove the plastic cover, pass the DC and COMM cables through pipe and attach the pipe to the wiring cover.
Page 28: Electrical Installation For Ac
Installation 3.5 Electrical Installation for AC Important information regarding safety -Always follow the specific regulations of your country or region. -Always follow the specific regulations of your energy provider. -Install all stipulated safety and protective devices (e.g. automatic circuit breakers and/or surge protection devices).
Page 29 Installation In Australia and New Zealand, please connect the AC wiring as shown in Figure 3-11. The connection between Grid N and Load N is necessary due to the grid code requirement to ensure the continuity of the neutral conductor when inverter is in standalone mode.
Page 30: Ac Plug Assembly
Installation 3.5.3 AC Plug Assembly CAUTION: Machine And Equipment Damage May Occur! - Please make sure to use the proper size AC cable. - Please choose the terminals as shown below for wires crimping. - Failed to follow these instructions may cause AC plug damage. Follow the steps below to strip the wires before assembling the AC plug as shown in Figure 3-12 : (1) Remove 55 mm (2.2 inch) of AC cable outer jacket.
Page 31 Installation Assemble the AC plug and wires as the procedures shown in Figure 3-13. The AC wire must be connected to the AC plug according to the correct sequence. The AC voltage should be L-N 230 Vac ± 10%. Fixed this part Depart the AC plug Rotate to loosen the AC plug...
Page 32: Ac Plug Error Check
Installation 3.5.4 AC plug error check Check the cable correction of AC plug by following instructions when error code: AC phase abnormal (E08) appear. L (Grid) L (Grid) N (Grid) N (Load) N (Load) L (Load) AC plug side (print) AC panel side N (Grid) L (Load)
Page 33: Communication Module Connections
Installation 3.6 Communication Module Connections Please refer to Figure 3-14 for the Communication Module illustration. The module provides VCC, RS-485, dry contact, and EPO terminals for different use. The maximum supply current of VCC(16V) is 0.8A. The maximum input rating of dry contact connector is 250Vac/12Vdc/10A. EPO &...
Page 34: Rs-485 Connection
Installation 3.7 RS-485 Connection The pin definition and data format of RS-485 is shown in Table 3-3. Installers should switch ON the terminal resistor when single inverter is installed. Table 3-3 : Pin definition and data format of RS-485 Function Data Format VCC(+16V) Baud rate: 19200...
Page 35: Dry Contact Connection
Installation In Australia and New Zealand, the Demand Response Modes (DRMs) are also use digital input function to assert. The definition is different from normal digital input function; please refer to Table 3-5 for the DRMs pin definitions. Table 3-5 : Definition of digital input & EPO functions (AU / NZ) Short Inverter’s action VCC &...
Page 36: Sync Signal Connection Of Vsg Function
Installation 3.10 Sync Signal connection of VSG function For a higher backup output power application during off-grid, it is allowed to connect the SPS port of multiple BX6.3 systems. For further information about this application, please refer to Chapter 5 System Application. For this application, please follow the instruction below to connect the pins on the communication module of each BX6.3 _AC100.
Page 37: Installation Of External Ct Clamp
Installation 3.11 Installation of External CT Clamp. BX6.3_AC100 has an built-in power meter with an external CT clamp. With this power meter, system can achieve the function bellows: 1. Measure the amount of feed-in power and the power-consumption of the house. 2.
Page 38: Assemble Dc Connectors
Installation 3.12 Assemble DC connectors Prepare for expansion battery pack. BX series uses Amphenol H4 connectors which provide along with the package of BX6.3_EX100 are genuine parts that are certified the quality and reliable from DELTA. Please follow the below requirements to choose the DC cable and crimp. - DC cable must choose the cooper conductor which insulation is above 600V withstands voltage.
Page 39: Installation Of Bx12.6_Ac100
Installation 3.13 Installation of BX12.6_AC100 DANGER: ELECTRICAL HARZARD!! - Before expansion battery pack, please power OFF the unit entirely to avoid risk of electrical shock. - Please check the battery pack regularly. If there are any impaired or loose parts, please contact your installer.
Page 40: 4　Startup
Startup 4 Startup To startup BX6.3_AC100, please follow the steps below: 1. Turn ON the AC grid breaker. 2. Ensure the LED light-on, follow the "MyDeltaSolar"APP user's guide to operate the APP. 3. When DC1 is also in the system, please ensure the connection between DC1 and BX6.3_AC100 and check if DC1 is powered correctly.
Page 41: Operation Mode
Startup 4.1 Operation Mode BX6.3_AC100 has 6 normal operation modes for users to choose. Each mode has different behavior between battery, grid, and home load. The following are the description of these modes. In some area, the detail behavior of each operation mode may be different due to the local electricity regulations.
Page 42: Peak Cut Mode
Startup 4.1.2 Peak cut mode In this mode, the home load will consume the power from the PV inverter in priority. When the home load consume more power than the power generated by the inverter, it will consume the power from the grid. Then, battery will only discharged to the supply the extra load after the power consume from the grid exceeds the “peak cut power”...
Page 43: Selling First Mode
Startup 4.1.3 Selling first mode Selling first mode is a standard mode combining with 6 time settings. In this mode, BX6.3_AC100 is operated in following priority: 1. If users have set the time settings, inverter will change behavior in these time intervals 2.
Page 44: Charge First Mode
Startup 4.1.4 Charge first mode In this mode, battery will be charged by PV or grid in priority, after battery is fully charged, the remaining PV power then feed-in to home load and grid. Battery will not be discharged in this mode even there is demand in the home load. Feed-in / purchase Distribution Panel Solar Panel...
Page 45 Startup PV power Home load power usage Excess PV power PV power used for home load consumption 00:00 07:00 12:00 19:00 24:00 Figure 4-9 : Charge first mode behavior (for AU & NZ)
Page 46 Startup 4.1.5 Discharge first mode In this mode, the battery will only be discharged depends on the load consumption. It will not be charged even there is excess PV power. All the PV power is feed-in to home load and grid. Battery will keep discharging when there is demand in the home load until it fully discharged.
Page 47 Startup 4.1.6 Special Modes In addition to the modes mentioned above, there are three special modes in BX6.3_AC100. These are passive modes, they will be enabled automatically under special condition. • Standalone mode BX6.3_AC100 changes to standalone mode automatically during a power outage occur.
Page 48 Startup • Forced charge mode Although battery stops any action when SOC (state of charge) reach 0%, the self-discharge phenomenon may still causing SOC lower than 0%. At this time, BX6.3_AC100 will force battery charging from PV power and grid power until the battery SOC reaching SOC limit setting (default is 30%).
Page 49 Startup • Balance mode This operation is only applied to BX12.6_AC100 system. During the installation, the battery voltage of BX6.3 series might be different. Due to the specifications of the battery module, the system will be switched to this mode automatically to balance the voltage of BX6.3 series. When the system is operating under this mode, the system will either discharge the battery with 3 kw power to the load and the grid or charge the battery with 3 kW power from the grid.
Page 50 Startup 4.2 Function Setting You can assign SOC limit, peak cut power, BT charge / discharge time interval, Main Supply Breaker Capacity and Time Schedule for SOH-cycle. • SOC Limit You can assign the lower limit of battery SOC. Battery will stop discharging when its SOC reach this limit.
Page 51 Startup 4.3 Active & Reactive power control 4.3.1 Q(U) control Warning！Electric Shock Q(U) is a control mode that inverter will provide reactive power according to grid voltage. V_max upper limit i limit s limit lower limit V_min Curve A 4.3.2 P(U) control When grid voltage rises up to a lock-in voltage(V lock-in) and inverter’s present output power is greater than lock-in power(P lock-in), inverter will reduce the output power and keep it at a certain value(P lock-out) until grid voltage drop...
Page 52 System application 5 System application ATTENTION - Short circuit at the critical load may cause damage to the inverter. 1. Critical Load Backup Power This system can provide power to the critical load once there is a power failure. The maximum power consumption for the critical load is 3 kVA for BX6.3_AC100 and 4.5 kVA for BX12.6_AC100.
Page 53 System application 2. Hybrid Energy Storage System This system is a combination of PV inverter and BX6.3_AC100, it can be considered as a hybrid energy storage system. In this system, BX6.3_AC100 can store the excess PV energy during daytime and provide energy to the load when there is load demand. This system can support multiple HxA PV inverters depends on the customer requirement.
Page 54 System application 3. Off-Grid Support Hybrid Energy Storage System (Internal ATS Mode) The key feature of this system is that it can support off-grid application and the PV inverter can continue generating power during power failure. In this application, the auto contactor is not necessary as it applies the internal contactor of BX6.3_AC100.
Page 55 System application 4. Off-Grid Support Hybrid Energy Storage System (External ATS Mode) This system is similar to application 3, it can support off-grid application and the PV inverter can continue generating power during power failure. However, a time-delay external auto contactor is required in this system. The time-delay auto contactor will trip off immediately when power failure and closed after the grid is recovered for 3 seconds.
Page 56 System application 5. Backup Power with Higher Standalone Power This system can provide higher output power to the critical load once there is a power failure. To achieve a higher standalone power, the SPS port of multiple BX6.3_AC100 should be connected together. The output power during power failure will depend on the number of BX6.3_AC100 connected.
Page 57 Maintenance 6 Maintenance DANGER : ELECTRICAL HAZARD!! - Before any maintenance, please make sure you are well insulated to avoid risk of electric shock. In order to ensure the normal operation of inverter, please check and clean the unit regularly. Once there are any impaired or loose parts, please contact your inverter installer.
Page 58 Error message and Trouble Shooting 7　Error message and Trouble Shooting Table 7-1 : Error Message ERROR Code Message Cause Action Check the grid frequency. If grid frequency is not in acceptable range, Grid frequency over the limit of contact the utility operator to modify it. AC Freq High electricity regulation.
Page 59 Error message and Trouble Shooting ERROR Code Message Cause Action Check the grid voltage. If grid voltage is not in acceptable range, Grid voltage over the limit of ask the utility operator to modify it. AC Volt High If grid voltage lies in acceptable range but electricity regulation.
Page 60 Error message and Trouble Shooting Table 7-2 : Fault Message Fault Code Message Cause Action Check the power supply line for direct DC component in grid current current. DC Injection Contact the utility operator to improve the over the limit grid quality.
Page 61 Error message and Trouble Shooting Fault Code Message Cause Action HW COMM2 Internal fault (Red COMM Contact your inverter supplier. Fault) HW COMM1 Internal fault (DSP COMM Contact your inverter supplier. Fault) Ground Cur. Residual current over the limit (Ground Cur. Check the insulation of DC wiring.
Page 62 Error message and Trouble Shooting Fault Code Message Cause Action HW ZC Fail Internal fault Contact your inverter supplier. (ZC Circuit Fault) BT OVP Battery system internal fault Contact your inverter supplier. BT UVP Battery system internal fault Contact your inverter supplier. BT OTP Battery system internal fault Contact your inverter supplier.
Page 63 De-Commissioning 8 De-Commissioning WARNING ! - To avoid injuries, please follow the procedures to unload the inverter. If it is necessary to put the device out of operation for maintenance or storage, please follow the procedures below: At inverter side: 1.
Page 64 Technical Data 9　Technical Data Table 9-1 : Specifications for BX6.3_AC100 Model BX6.3_AC100 BX12.6_AC100 GENERAL Enclosure Aluminum with powder coating Operating temperature -10℃* ~ 45℃ Operating Altitude 0 to 2000m (0 to 6666 ft.) Relative humidity 0% – 95% non-condensing. Environmental category Indoor / Outdoor Protection degree IP65 (Electronics)
Page 65 Technical Data Model BX6.3_AC100 BX12.6_AC100 AC INPUT / OUTPUT Nominal power 3000VA 4500VA Maximum power 3000VA 4500VA According to country setting Voltage (Programmable 230Vac ± 20%) On Grid Nominal current 19.6A Stand-Alone Nominal current 19.6A Inrush current 16A / 100us Maximum output fault current (rms) Maximum overcurrent protection Rated 50/60 Hz (Programmable 45-65 Hz)
Page 66 Technical Data Model BX6.3_AC100 BX12.6_AC100 REGULATIONS & DIRECTIVES CE conformity Grid interface AS/NZS 4777.2 :2015 Emission EN 61000-6-3 Harmonics EN 61000-3-2 Variations and flicker EN 61000-3-3 Immunity EN 61000-6-2 IEC 61000-4-2 IEC 61000-4-3 IEC 61000-4-4 Immunity Surge IEC 61000-4-5 IEC 61000-4-6 IEC 61000-4-8 PFMF Electrical safety...
Page 67 Technical Data Model Listing Model Inverter Battery Wi-Fi BX6.3_AC100 (BX6.3_AC100) (BX6.3_AC100) BX12.6_AC100 (BX6.3_AC100 associated with BX6.3_EX100 ) (BX6.3_AC100) (BX6.3_EX100) (BX6.3_AC100) BX6.3_AC101 (BX6.3_AC101) BX12.6_AC101 (BX6.3_AC101 associated with BX6.3_EX100 ) (BX6.3_AC101) (BX6.3_EX100) ＊ BX6.3_EX100 (BX6.3_EX100) ＊ BX6.3_EX100 can only be used with the BX6.3_AC100 / BX6.3_AC101.
Page 68 Version 220308...
