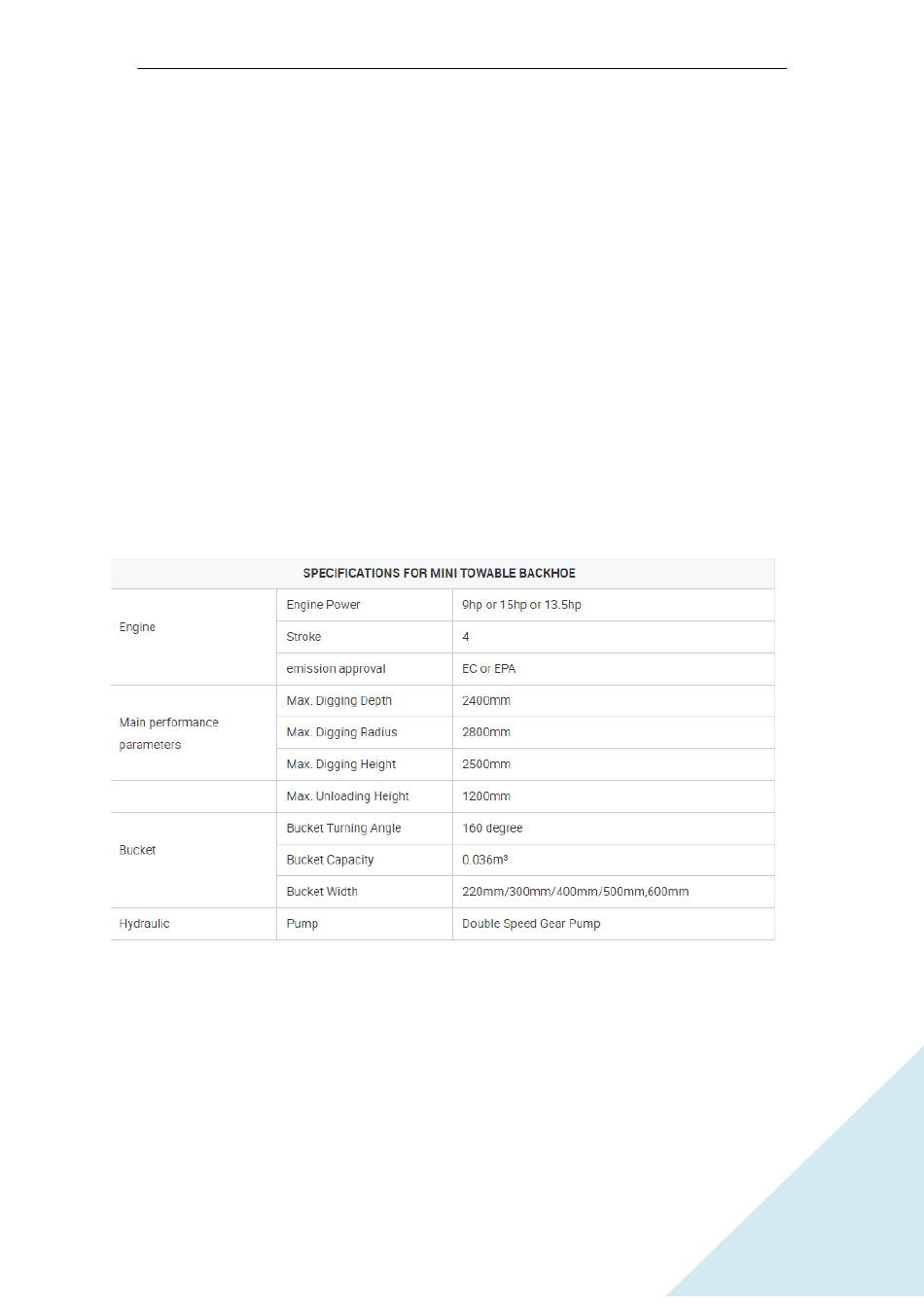

Assembling and User Manual
Parameters:
Model：ATBH9/ATBH135
Name：Towable Backhoe Excavator
Engine：9HP/13.5HP/15HP
Fuel： Gasoline
Hydraulic oil：46#
Digging Depth：2400MM
In the need of shipping safely, many parts this machine is
disassembled before shipping. So you have to assemble several
parts when you have received this machine.
1
--ATV Towable Backhoe ATBH9/135
Band: B&S or JD
Assembling
Advertisement
Table of Contents
Summary of Contents for Toolots ATBH9
- Page 1 Assembling and User Manual --ATV Towable Backhoe ATBH9/135 Parameters: Model：ATBH9/ATBH135 Name：Towable Backhoe Excavator Band: B&S or JD Engine：9HP/13.5HP/15HP Fuel： Gasoline Hydraulic oil：46# Digging Depth：2400MM Assembling In the need of shipping safely, many parts this machine is disassembled before shipping. So you have to assemble several...
-
Page 2: Table Of Contents
Index 1、 Legs and wheels assembling-------------------------------1~3 2、 Excavator Main Arm assembling ---------------------------3 3、 Bucket Arm assembling-------------------------------------4 4、 Bucket assembling ----------------------------------------------4 5、 Hydraulic cylinder assembling -------------------------------5 6、 Towing Ball assembling ----------------------------------------6 7、 Fuel and Hydraulic oil filling-----------------------------------6 8、 Several different configuration --------------------------- 9、... - Page 3 As Shown in figure Left and Right Wheels...
-
Page 4: 2、 Excavator Main Arm Assembling
2、 Excavator Main Arm assembling Assemble the parts as shown below. 1)30mm Pin 30mm Pin is has to be plugged in to avoid damage machine when 1) 40mm Pin backhoe is tracted.. 2) m8*15 Screw... -
Page 5: 3、 Bucket Arm Assembling
3、 Bucket Arm assembling Assemble the parts as shown below. 30mm Pin 40mm Pin and M8*15 screw to set up the parts. 4、 Bucket assembling Assemble the parts as shown below. 1) L size part 5)30mm inside diameter connector Bucket 30mm Pin Steel ring 5) Steel ring(with 30mm inside diameter) is put... -
Page 6: 5、 Hydraulic Cylinder Assembling
5、 Hydraulic cylindder assembling Assemble the parts as shown below. There are four pairs of Hydraulic pipe which is used to control four Hydraulic cylinders. One pair has to be connected to one Hydraulic cylinders, one pipe send in the oil the other floww away oil, its very easy to understand. Steel rinng *2 back port... -
Page 7: 6、 Towing Ball Assembling
6、 Towing Ball assembling Assemble the parts as shown below. All parts need to be installed, so no problem will happen. 7、 Fuel and Hydraulic oil filling Air hole has to be opened when hydraulic oil is been There are two type of Seats filling. -
Page 8: 8、 Several Different Configuration
8、 Several different configuration This type of seat is available only on Gasoline engine machines. Diesel engine machine does have this type seats... - Page 9 ➔ Diesel engine could have the configuration of start battery and electrical systems(it cost 180$), 80A/12V battery is been employed. ➔ with four Two control stick control stick could be used（cost 50$）, which could lead to higher efficiency when work with this backhoe. 9、...
