Summary of Contents for Edis EM1003

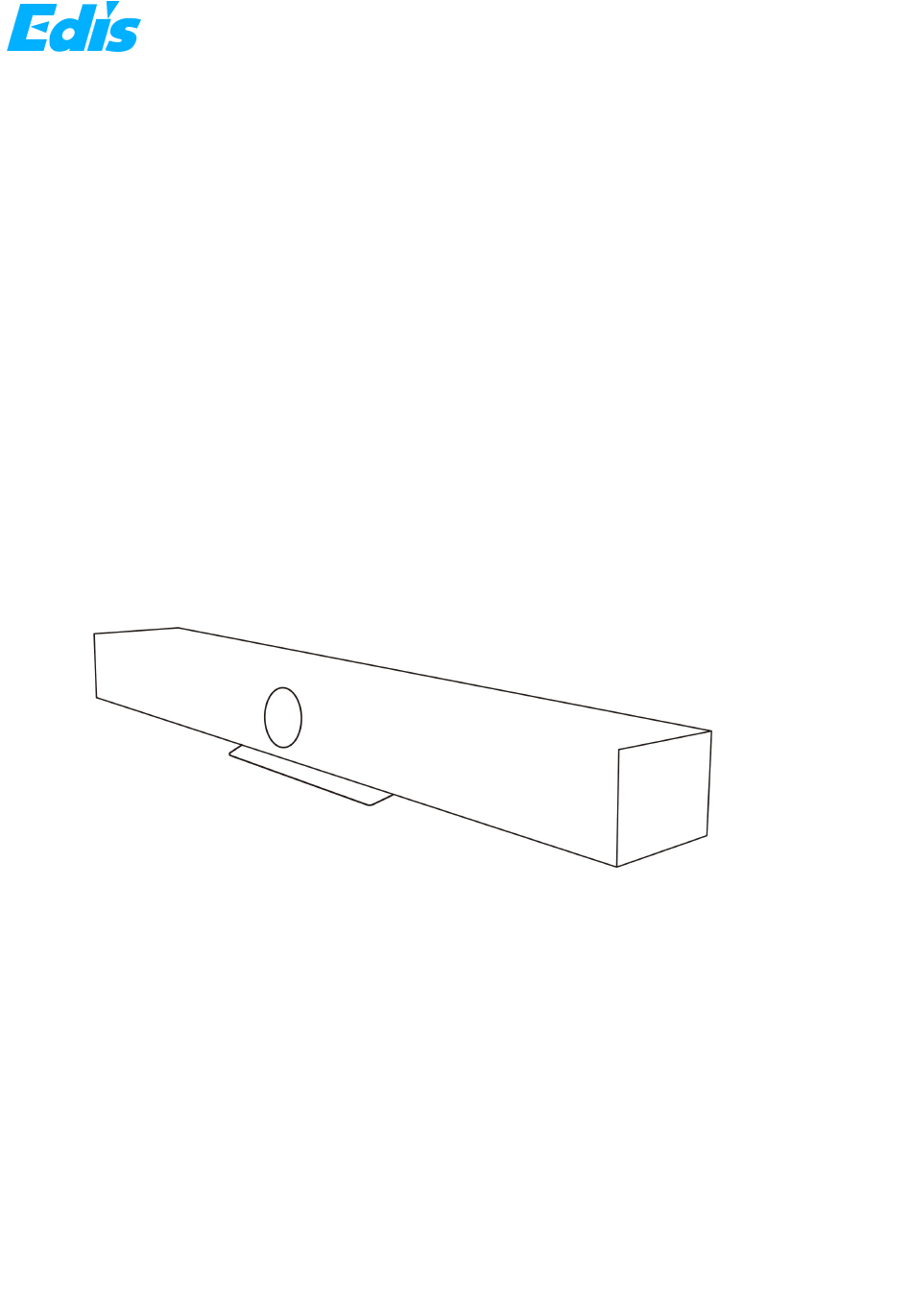

- Page 1 EM1003 Videobar User Manual - 1 -...
- Page 2 Attentions This manual introduces functions, installation and operations for video conferencing BAR EM1003 in details. Please read this manual carefully before installation and use. 1. How to use To prevent damage to this product or any product connected to it, this product can only be used within the specified range.
-
Page 3: Table Of Contents
Content 1. QUICK INSTALLATION INSTRUCTIONS....................- 3 - 1.1 P ............................- 4 - RODUCT NTERFACE 1.2 P ..............................- 4 - RODUCT 2. PRODUCT OVERVIEW............................- 5 - 2.1 P ..........................- 5 - RODUCT NTRODUCTION 2.1.1 Dimensions...............................- 5 - 2.1.2 Accessories...............................- 5 - 2.2 P ............................ -
Page 4: Quick Installation Instructions
1. Quick Installation Instructions 1.1 Product Interface Figure 1.1 Product Interfaces 1. Speaker 4. Power Switch 7. USB3.0 2. Lens 5. Power 8. Bracket 3. Built-in Mic 6. Line in 1.2 Product Use 1) Installation: Fix the device to the wall, over the display screen or directly put it on the desktop. 2) Power on: Connect the DC12V power adapter to the power input socket. -
Page 5: Product Overview
2. Product Overview 2.1 Product Introduction 2.1.1 Dimensions Figure 2.1 Dimensions 2.1.2 Accessories Standard accessories in the box User Manual 5m USB2.0 Cable Remote Control Accessories Standard Power Adapter Packing List Wall Bracket - 5 -... -
Page 6: Product Features
2.2 Product Features Features with compact design, crystal clear audio and excellent video quality, it uses advanced AI intelligent algorithms, integrates multiple AI intelligent framing technologies such as facial detection, sound positioning, and voice tracking. It automatically frame the meeting participants and adjust focus area to present the best view. Real-time detection of the speaker's position function enables the presenter to be focused in the view automatically. -
Page 7: Product Use
Processing Speaker 2*7W Controller Remote Control Infrared remote control USB Interface 1*USB3.0 (Type-B), compatible with USB2.0 Audio Port 1*3.5mm linear input Physical Power Interfaces HEC3800 power socket (DC12V) Connector Wall Bracket Standard wall mount bracket 3. Product Use - 7 -... -
Page 8: Remote Instructions
3.1 Remote Instructions 3.2 Menu Settings 3.2.1 Main Menu Press [MENU] button in MJPG, YUY2, NV12 or H264 compression encoding formats. - 8 -... - Page 9 MENU ＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝ Language English （Setup） （Exposure） （Color） （Image） （Noise Reduction） （Verion） （Restore Default） [↑↓]Select [← →]Change Value 1) Language Move the pointer to (Language) in the main menu, press 【 ← → 】 to select the language. 2) Setting Move the pointer to (Settings) in the main menu, press [HOME] to get into the exposure page as shown below.
- Page 10 Image style: Default/Standard/Clear/Bright/Soft Auto Framing: on/off Auto Framing Sen: High/Medium/Low Voice Locating: on/off Switching Mode: pan mode/movie mode/meeting mode/smart mode Location Sen: High/Low/Medium Prompt Info: on/off Transmission Mode: Bulk/Synchronization 3) Explosure In the main menu, move the pointer to (Exposure), and press [HOME] to enter the exposure page, as shown below.
- Page 11 Brightness: 0～23 (only valid in brightness priority mode) 4) Color Move the pointer to (Color) in the main menu, and press [HOME] to get into the color page, as shown below COLOR ＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝ WB Mode Auto RG Tuning BG Tuning Saturation 100% AWB Sensitivity...
- Page 12 IMAGE ＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝ Brightness Contrast Sharpness Flip-H Flip-V B&W-Mode Color Gamma Default Low-Light Mode Close [↑↓]Select [← →]Change Value Brightness：Settable：0～14 Contrast：0～14 Sharpness：0～15 Flip-H：On/Off Flip-V：On/Off B&W Mode ： Color, Black and White Gamma Curve：Default.0.34.0.39.0.47.0.50 Low-light Mode：On/Off 6) Noise Reduction Move the pointer to (Noise Reduction) in the main menu, press [HOME] to get into the noise reduction page, as shown below.
-
Page 13: Maintenance And Troubleshooting
VERSION ＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝ Camcra Version 1.0.0 2020-12-16 [↑↓]Select [← →]Change Value 8) Restore Default Move the pointer to (Reset) in the main menu, press [HOME] to get into the reset page, as shown below. RESTORE DEFAULT ＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝ Restore Default? [↑↓]Select [← →]Change Value Notice：Color style and video format will not be restored to factory default 4. -
Page 14: Troubleshooting
4.2 Troubleshooting 1) No picture for USB Solution: a. Check whether the USB cable of the device is connected well and whether the power indicator is on b. Check whether the device is normal after power-off and restart c. Restart the computer to check whether it is normal d.
