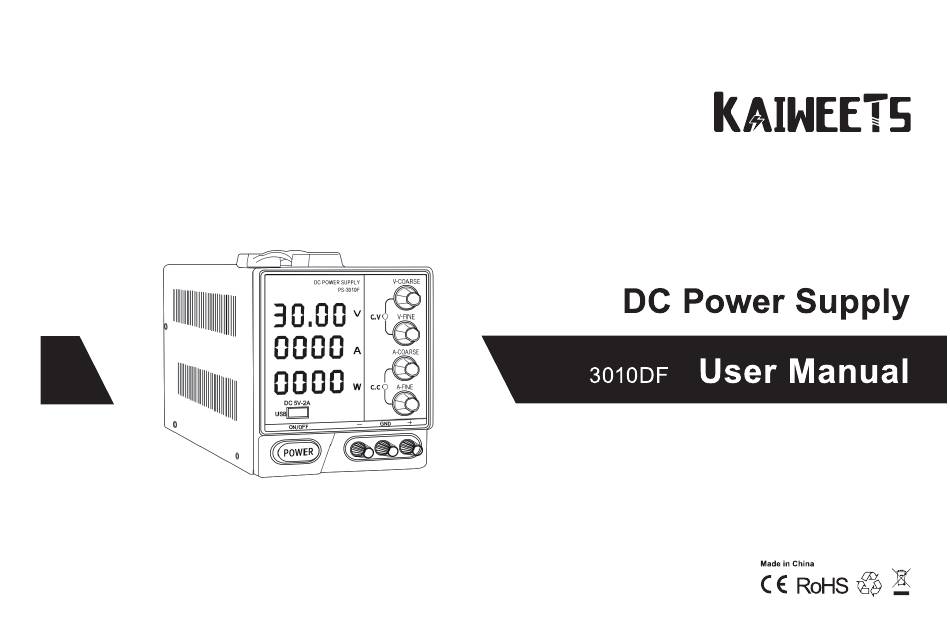

Summary of Contents for Kaiweets 3010DF
- Page 2 Step chart for Constant Voltage Output (C. V. Mode) FUSE Next Page C.V.Lights Up...
- Page 3 Load Load 0.126 Load...
- Page 4 Step chart for Constant Current Output (C. C. Mode) FUSE Short Cirvuit C.C.Lights Up...
- Page 5 Load Load...
-
Page 6: Table Of Contents
EN - User Manual Table of Contents ......................................- 2 - Introduction ...................................... - 2 - Intended use ..................................- 3 - Controls and Indicators ......................................- 4 - Operation ............................- 4 - Constant Voltage Mode (C.V. Mode) ............................- 5- Constant Current Mode (C.C. -
Page 7: Introduction
Introduction Dear customer, Thank you for purchasing this product. This product complies with the statutory national and European requirements. To maintain this status and to ensure safe operation, you as the user must observe these operating instructions! These operating instructions contain important notes on commissioning and handling. Retain these operating instructions for reference! Intended use This power supply is DC regulated power supply. -
Page 8: Controls And Indicators
Controls and Indicators 1. Output voltage display 2. Output current display 3. Output power display 4. USB power supply 5. Power ON/OFF switch 6. C.V. Indicator (Constant voltage mode indicator) 7. C.C. Indicator (Constant current mode indicator) 8. Coarse voltage regulator (To coarsely adjust output voltage) 9. -
Page 9: Operation
Operation Please strictly follow the instruction to avoid machine malfunction or possible injury caused by electricity. Constant Voltage Mode (C.V. Mode) Step-by-step illustration on Page Ⅰ-Ⅱ (1) Connect the three-wire power cord with a Standard AC outlet. Turn all 4 knobs (Coarse Voltage Regulator, Fine Voltage Regulator, Coarse Current Regulator, Fine Current Regulator) anti-clockwise to minimum position before using. -
Page 10: Constant Current Mode (C.c. Mode)
Constant Current Mode (C.C. Mode) Step-by-step illustration on Page III-Ⅳ (1) Connect the three-wire power cord with a Standard AC outlet. Turn the Coarse Voltage Regulator clockwise to maximum position and the Coarse Current Regulator and Fine Current Regulator anti-clockwise to minimum position. Connect the positive output terminal and the negative output terminal with a wire (one included) and bring it to a short circuit. -
Page 11: Technical Parameters
Technical parameters ......................110V-130V, 50Hz / 220V-240V, 60Hz Rated working conditions .................................. Output Current Range 0-10A ................................... Output Voltage Range 0-30V ....................................USB interface 5V, 2A ........................Power supply effect CV≤0.1%+10mV, CC≤0.1%+10mA ............................Load effect CV≤0.1%+5mV, CC≤0.1%+10mV ..........................Ripple and noise CV≤20mV r.m.s., CC≤20mA r.m.s. -
Page 12: Maintenance
Maintenance Repair Do not attempt to repair or service your instrument unless you are qualified to do so and have the relevant calibration, performance test and service information. Replacing the Fuse Turn off the power switch, remove the power line cord from the power socket and disconnect the test leads at output terminals before replacing the fuse. -
Page 13: Three Years Warranty
Three Years Warranty KAIWEETS will repair, without charge, any defects due to faulty materials or workmanship for three years from the date of purchase provided that: • Proof of purchase is produced. • Service/repairs have not been attempted by unauthorized persons;...
