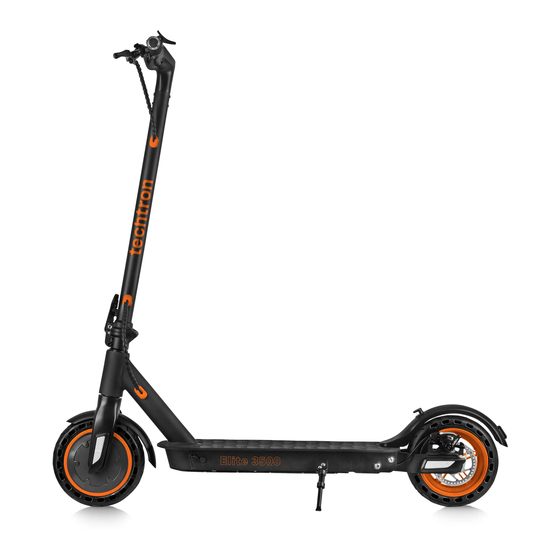

Summary of Contents for Ethos techtron Elite 3500
- Page 1 Elite 3500 Instruction Manual...
- Page 2 Welcome to techtron® by combining passion, drive and intellect with market leading research and cutting-edge technology, we innovate and deliver premium quality products that excite, inspire and challenge the sector. Striving for perfection, embracing new ideas and investing in the future is our ethos. Future Tech. Today...
-
Page 3: Table Of Contents
Contents Product and Accessories Assembly Charging Display Panel Function techtron® Smart App Maintenance and Warranty Rider Guidance, Safety and Specifications IMPORTANT! Read carefully and keep for future reference. -
Page 4: Product And Accessories
Product and Accessories Accelerator Main display panel Brake lever Folding handle and lock Footstep Battery compartment Motor wheel Charger port Front and rear lights Rear wheel disc brake Kickstand... - Page 5 Product and Accessories M3 hex key x1 M5 hex key x1 M3 hex screws x4 Charging adaptor x1...
-
Page 6: Assembly
Assembly Make sure the brake lever is installed in the correct position. Use the M5 hex key to loosen and tighten the fixing. Unfold the scooter standpipe, move the handle into position and lock the folding mechanism in place. - Page 7 Assembly Install the crossbar onto the standpipe. Using the M3 hex key, fasten the crossbar onto the standpipe with the four M3 hex screws.
-
Page 8: Charging
Charging To charge the techtron® eScooter simply open the rubber stopper on the side of the base and plug into the power supply. Please allow 5-6 hours for the eScooter’s battery to fully charge. Replace the stopper after charging to prevent water damage. Battery level indicator Five bars along the top edge of the display panel indicate the current charge status. -
Page 9: Display Panel Function
Display Panel Function Speed display The techtron® Elite 3500 foldable eScooter is capable of a maximum speed of 25km/h, with three pre-configured factory default speed modes. Factory default settings Speed mode Maximum speed 10km/h 15km/h 25km/h These presets can be changed via the techtron® smart app (see page 10). The app allows the user to set a pre-determined speed for each speed mode. -
Page 10: Techtron® Smart App
techtron® Smart App Your eScooter can be configured using the techtron® smart app. Use it to set up your desired settings such as riding mode and speed limiter. You can even lock the scooter to prevent unauthorised access. Please note - the eScooter will remember all settings applied in the techtron®... - Page 11 techtron® Smart App Home screen View the remaining range of your eScooter, so you can plan your journey. Light - Turn the main light On/Off. Settings - Access further controls. Lock - Secure your eScooter against Trip Info unauthorised access. Remaining range 21.3Km Connection - Discover and pair your...
-
Page 12: Maintenance And Warranty
Maintenance and Warranty Standpipe shake Should your eScooter’s standpipe develop a slight shake over time, it may be necessary to tighten the two folding mechanism screws, using the M3 hex key. Product registration For exclusive offers, product support and information on the latest techtron®... - Page 13 Maintenance and Warranty Brake adjustment If the brakes are too tight, insert the M5 hex key into the slot shown, and turn counterclockwise to release the pressure plate screw on the disc brake seat. Return the brake line to make the exposed tail length slightly shorter and lock the pressure plate screw.
- Page 14 Maintenance and Warranty Cleaning and storage Use a soft cloth dipped in a small amount of water to wipe the eScooter; for any difficult to clean areas, you can use toothpaste and gently brush with a toothbrush, then use a damp cloth to clean.
-
Page 15: Rider Guidance, Safety And Specifications
Rider Guidance, Safety and Specifications Helmets and clothing Model specifications Wearing cycle helmets are recommended when riding an eScooter, but they are not a legal Model Elite 3500 requirement. Always make sure that your cycle Range 30km helmet conforms to current regulations, is the Power 350W correct size, and is securely fastened. - Page 16 For further information and advice you can find us at: techtron® Unit 2, Jowett St, Bradford, BD1 2JX. UK. e: info@techtron.co 0203 307 6776 w: techtron.co Research & Development 2100 Geng Road, Suite 210, Palo Alto, California, 94303 USA . e: info@techtroncalifornia.com w: techtroncalifornia.com techtron®...
