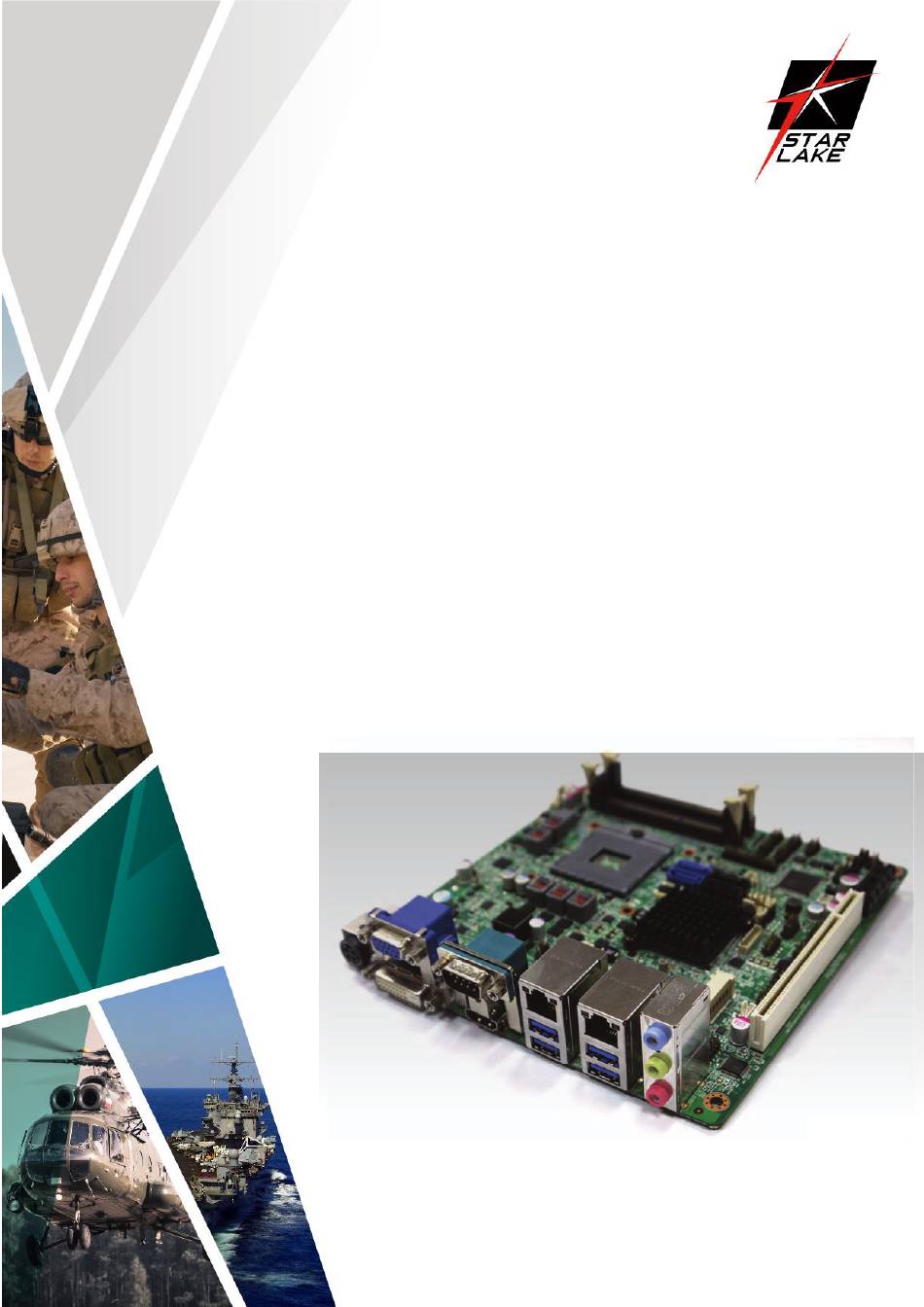

- Page 1 INS8335A Mini ITX Industrial Motherboard User’s Manual...
-
Page 2: Safety Information
Safety Information Electrical safety To prevent electrical shock hazard, disconnect the power cable from the electrical outlet before relocating the system. When adding or removing devices to or from the system, ensure that the power cables for the devices are unplugged before the signal cables are connected. If possible, disconnect all power cables from the existing system before you add a device. Before connecting or removing signal cables from the motherboard, ensure that all power cables are unplugged. Seek professional assistance before using an adapter or extension cord. These devices could interrupt the grounding circuit. ... -
Page 3: Revision History
Revision History Revision Date Changes (dd.mm.yyyy) Version 1.0 10.07.2012 Initial release Version 1.1 28.09.2012 JP3 jumper setting Version 1.2 05.12.2012 JP4 jumper default setting Packing list □ INS8335A Mini‐ITX Industrial MB □ I/O Shield □ 1 x SATA Cable □ 2 x COM ports cable w/bracket □ 1 x USB cable □ CD (driver + user’s manual) If any of the above items is damaged or missing, please contact your local distributor. ... -
Page 4: Table Of Contents
Table of Contents Safety Information ...................... 1 Electrical safety ........................ 1 Operation safety ........................ 1 Statement .......................... 1 Revision History ...................... 2 Packing list ........................ 2 Chapter 1: Product Information .................. 5 1.1 Block Diagram ........................ 5 1.2 Key Features ........................ 6 1.3 Board Placement ...................... 8 1.4 Mechanical Drawings ..................... 9 Chapter 2: Jumpers and Connectors ................ 1 0 Chapter 3: AMI BIOS UTILITY ... - Page 5 3.8 Save and exit ........................ 48...
-
Page 6: Chapter 1: Product Information
Chapter 1: Product Information 1.1 Block Diagram ... -
Page 7: Key Features
1.2 Key Features Processor & System CPU Type Intel® 22nm Ivy Bridge Processor (Mobile) socket (rPGA988) Chipset Intel® QM77 Memory Type 2 x 204‐pin SO‐DIMM support up to 8GB dual channel DDR3 1333/1600, Non‐ECC BIOS AMI® UEFI BIOS Supoer I/O F81866D‐I Watchdog 1‐255 sec. or 1‐255 min. software programmable, can generate system reset Expansion Slot 1 x PCIe x1 1 x Mini PCIe 1 x PCI Display Chipset Integrated GFX in Ivy Bridge processor Onboard VGA Yes, Max: SXGA 2048 x1536 @ 60 Hz LVDS Dual channel 24‐bit LVDS, Max. 1920 x 1200 Onboard DVI‐D Yes, (Max. resolution 1920 x 1200) Onboard HDMI Yes, (Max. resolution 1920 x 1200) ... - Page 8 COM 6 x COM ports COM1 port RS232/422/485 with 5V/12V selectable on rear I/O COM2~3 ports RS232 with 5V/12V selectable by pin header COM4 port supports RS232 by pin header COM5~6 ports RS232/422/485 by pin header DIO 16‐bit (4 in/4 out) PS/2 1 x pin‐header for PS/2 keyboard and mouse Fan 1 x CPU fan, 1 x System fan Parallel Port 2 x 13‐pin header Mechanical and Environment Form Factor Mini‐ITX Power Type 9V to 24V DC‐in Dimension 170 x 170 mm (6.7" x 6.7") Operating Temp. ‐20 to 70°C Relative Humidity 10% to 90%, non‐condensing *All specifications and photos are subject to change without notice.
-
Page 9: Board Placement
1.3 Board Placement ... -
Page 10: Mechanical Drawings
1.4 Mechanical Drawings ... -
Page 11: Chapter 2: Jumpers And Connectors
Chapter 2: Jumpers and Connectors CPUFAN: 4 pin FAN connector Pin Definition 1 GND 2 CPUFAN_VCC 3 CPUFAN_TAC 4 NC (Option for 4 pin PWM FAN control) SYSFAN: 3 pin FAN connector Pin Definition 1 GND 2 SYSFAN_VCC 3 SYSFAN_TAC LPT1: LPT port pin header Pin Definition Pin Definition 1 STB# 2 AFD# 3 SPD0 4 ERROR# 5 SPD1 6 PINIT# 7 SPD2 ... - Page 12 LVDS: LVDS connector Pin Definition Pin Definition 1 LVDS_BCLK 2 GND 3 LVDS_BCLK# 4 LVDS_A3 5 GND 6 LVDS_A3# 7 LVDS_B3 8 GND 9 LVDS_B3# 10 LVDS_ACLK 11 LVDS_B2 12 LVDS_ ACLK # 13 LVDS_B2# 14 GND 15 LVDS_B1 16 LVDS_A2 17 LVDS_B1# 18 LVDS_A2# 19 ...
- Page 13 JBKL1: Inverter connector Pin Definition 1 Backlight power (+12V) 2 Backlight power (+12V) 3 Backlight power (+12V) 4 +5V 5 +5V 6 GND 7 GND 8 Backlight enable (Voltage level Select by JP3) 9 Backlight brightness control (Voltage level Select by JP3) 10 GND JP3: Backlight control voltage level select Jumper Function description Setting 5‐3 5V 1‐3 3.3V *Default setting is 1‐3* JP3: Backlight ADJ mode select Jumper Function description Setting 2‐4 PWM mode 6‐4 ...
- Page 14 FP1: Front Panel 1 Pin Definition Pin Definition 1 HDLED+ 2 PLED+ 3 HDD_ACT‐ 4 PLED‐ 5 GND 6 PWRBTN‐ 7 SYSRST‐ 8 GND 9 F_USB1: USB2.0 port 0,1 pin header F_USB2: USB2.0 port 2,3 pin header Pin Definition Pin Definition 1 +5VDUAL 2 +5VDUAL 3 D‐ 4 D‐ 5 D+ 6 D+ 7 ...
- Page 15 AUDIO1: LINE‐OUT/LINE‐IN/MIC‐IN Pin Definition A1 LINE‐IN_L A2 LINE‐IN_JD A3 AGND A4 LINE‐IN_R B1 LINE‐OUT_L B2 LINE‐OUT _JD B3 AGND B4 LINE‐OUT _R C1 MIC_L C2 MIC_JD C3 AGND C4 MIC_R C0 AGND AFP1: LINE‐OUT/MIC‐IN Pin Definition Pin Definition 1 MIC2_L 2 AGND 3 MIC2_R 4 ...
- Page 16 VGA: VGA Pin Definition Pin Definition 1 RED 9 +5V 2 GREEN 10 GND 3 BLUE 11 NC 4 NC 12 DDC DATA 5 GND 13 HSYNC 6 GND 14 VSYNC 7 GND 15 DDC CLOCK 8 HDMI: HDMI Pin Definition Pin Definition 1 HDMI_2P ...
- Page 17 COM4: RS232 Pin Definition Pin Definition 1 DCD‐ 2 RXD 3 TXD 4 DTR‐ 5 GND 6 DSR‐ 7 RTS‐ 8 CTS‐ 9 RI‐ COM5~COM6: RS232/422/485 Pin RS‐232 RS‐422 Half Duplex RS‐485 1 DCD‐ TX‐ DATA‐ 2 RXD RX+ NA 3 TXD ...
- Page 18 MINI_MPCIE: Mini PCIE connector Pin Definition Pin Definition 1 WAKE# 2 +3.3VAUX 3 NC 4 GND 5 NC 6 +1.5V 7 CLKREQ# 8 NC 9 GND 10 NC 11 REF CLK‐ 12 NC 13 REF CLK+ 14 NC 15 GND 16 NC 17 NC 18 GND 19 ...
- Page 19 SATA1, SATA2: Serial ATA 3.0 Connector Pin Definition 1 GND 2 TXP 3 TXN 4 GND 5 RXN 6 RXP 7 GND SATA3, SATA4: Serial ATA 2.0 Connector Pin Definition 1 GND 2 TXP 3 TXN 4 GND 5 RXN 6 RXP 7 GND SATAP0, SATAP1: SATA Power Connector Pin Definition 1 ...
- Page 20 PSON1: ATX/AT mode Jumper Function description Setting 1‐2 AT Mode 2‐3 ATX Mode *Default setting is 2‐3* JCASE1: Case Open Warning Pin Definition 1 CASE OPEN# 2 GND PCIEX1_1: PCI Express X1 Pin Side B Connector Side A Connector 1 +12V NC 2 +12V +12V 3 +12V +12V 4 GND GND 5 SMBUS CLOCK NC 6 SMBUS DATA NC 7 GND ...
- Page 21 PCI: PCI Pin Definition Pin Definition Definition Pin Definition A1 Pull down A32 AD16 B1 ‐12V B32 AD17 4.7K to GND A2 +12V A33 +3.3 B2 GND B33 CBE2# A3 GND A34 FRAME# B3 GND B34 GND A4 GND A35 GND B4 NC B35 IRDY# ...
- Page 22 CFD1: CF card and CF‐SATA card combo connector Pin Definition Pin Definition 1 GND 26 GND 2 D03 27 D11 3 D04 28 D12 4 D05 29 D13 5 D06 30 D14 6 D07 31 D15 7 ‐IDE_CS0 32 ‐IDE_CS1 8 GND 33 GND 9 GND 34 ‐IDE_DIOR 10 ...
-
Page 23: Chapter 3: Ami Bios Utility
Chapter 3: AMI BIOS UTILITY This chapter provides users with detailed descriptions on how to set up a basic system configuration through the AMI BIOS setup utility. 3.1 Starting To enter the setup screens, perform the following steps: Turn on the computer and press the <Del> key immediately. After the <Del> key is pressed, the main BIOS setup menu displays. Other setup screens can be accessed from the main BIOS setup menu, such as the Chipset and Power menus. 3.2 Navigation Keys The BIOS setup/utility uses a key‐based navigation system called hot keys. Most of the BIOS setup utility hot keys can be used at any time during the setup navigation process. Some of the hot keys are <F1>, <F10>, <Enter>, <ESC>, and <Arrow> keys. Some of the navigation keys may differ from one screen to another. Left/Right The Left and Right <Arrow> keys moves the cursor to select a menu. Up/Down The Up and Down <Arrow> keys moves the cursor to select a setup screen or sub‐screen. +− Plus/Minus The Plus and Minus <Arrow> keys changes the field value of a particular setup setting. Tab The <Tab> key selects the setup fields. F1 The <F1> key displays the General Help screen. F10 The <F10> key saves any changes made and exits the BIOS setup utility. Esc The <Esc> key discards any changes made and exits the BIOS setup utility. Enter The <Enter> key displays a sub‐screen or changes a selected or highlighted option in each menu. ... -
Page 24: Main Menu
3.3 Main Menu The Main menu is the first screen that you will see when you enter the BIOS Setup Utility. System Language Use this function to select the system language. ... -
Page 25: Advanced Menu
System Date Use this function to change the system date. Select System Date using the Up and Down <Arrow> keys. Enter the new values through the keyboard. Press the Left and Right <Arrow> keys to move between fields. The date setting must be entered in MM/DD/YY format. System Time Use this function to change the system time. Select System Time using the Up and Down <Arrow> keys. Enter the new values through the keyboard. Press the Left and Right <Arrow> keys to move between fields. The time setting is entered in HH:MM:SS format. Note: The time is in 24‐hour format. For example, 5:30 A.M. appears as 05:30:00, and 5:30 P.M. as 17:30:00. Access Level Displays the access level of the current user in the BIOS. 3.4 Advanced Menu The Advanced Menu allows you to configure your system for basic operation. Some entries are defaults required by the system board, while others, if enabled, will improve the performance of your system or let you set some features according to your preference. Setting incorrect field values may cause the system to malfunction. ... -
Page 26: Acpi Settings
3.4.1 ACPI Settings System ACPI parameters Enable ACPI Auto Configuration Enables or disables BIOS ACPI auto configuration. Enable Hibernation Enables or disables system ability to hibernate (OS/S4 Sleep State). This option may not be effective with some OS. ACPI Sleep State Select the ACPI sleep state the system will enter when the suspend button is pressed. Lock Legacy Resources Enables or Disables System Lock of Legacy Resources. S3 Video Repost Enable or disable S3 Video Repost. ... -
Page 27: Cpu Configuration
3.4.2 CPU Configuration This section is used to configure the CPU. ... - Page 28 Hyper‐threading Enabled for Windows XP and Linux (OS optimized for Hyper‐Threading Technology) and Disabled for other OS (OS not optimized for Hyper‐Threading Technology). When disabled only one thread per enabled core is enabled. Active Processor Cores Number of cores to enable in each processor package. Limit CPUID Maximum Disabled for Windows XP. Execute Disable Bit XD can prevent certain classes of malicious buffer overflow attacks when combined with a supporting OS (Windows Sever 2003 SP1, Windows XP SP2, SuSE Linux 9.2, RedHat Enterprise 3 Update 3.) Intel Virtualization Technology When enabled, a VMM can utilize the additional hardware capabilities provided by Vanderpool Technology. Hardware Prefetcher To turn on/off the Mid Level Cache (L2) streamer prefectcher Adjacent Cache Line Prefetche To turn on/off prefectching of adjacent cache lines TCC Activation Offset Offset from the factory TCC activation temperature Primary Plane Current Value The Maximum instantaneous current allow for primary plane Secondary Plane Current Value The Maximum instantaneous current allow for secondary plane ...
-
Page 29: Sata Configuration
3.4.3 SATA Configuration This section is used to configure the SATA drives. SATA Controller(s) Enable or disable SATA device. SATA Mode Selection Determines how SATA controller(s) operate. SATA Test Selection Enable or disable Test Mode IDE Legacy/Native Mode Selection IDE Legacy/Native Mode Selection Serial ATA Port 0 – 5 Displays information on the SATA devices detected ... -
Page 30: Thermal Configuration
3.4.4 Thermal Configuration Platform thermal configuration options 3.4.4.1 Platform thermal configuration ... -
Page 31: Intel Rapid Start Technology
3.4.5 Intel Rapid Start Technology ... -
Page 32: Intel Txt(Lt) Configuration
3.4.6 Intel TXT(LT) Configuration Intel Trusted Execution Technology Intel TXT(LT) Support Enables or disables Intel TXT(LT) support 3.4.7 PCH‐FW Configuration This section is used to configure Management Engine Technology parameters. ... -
Page 33: Intel Anti-Theft Technology Configuration
3.4.8 Intel Anti‐Theft Technology Configuration Disabling Intel AT allow user to login platform. This is strictly for testing only. This does not disable Intel AT services in ME Intel Anti‐Theft Technology Enable or Disable Intel AT in BIOS for testing only Intel Anti‐Theft Technology Rec Set the number of times Recovery attemped will be allowed. ... -
Page 34: Amt Configuration
3.4.9 AMT Configuration This section is used to configure Active Management Technology (AMT) options. Intel AMT Enable/disables Intel Active Management Technology BIOS extension. Note: iAMT H/W is always enabled. This option just controls the BIOS extension execution. If enabled, this requires additional firmware in the SPI device. BIOS Hotkey Pressed Enable/disable BIOS hotkey press. MEBx Selection Screen Enable/disable MEBx Selection Screen Hide Un‐Configure ME Confirmation Hide Un‐Configure ME without password confirmation prompt MEBx Debug Message Screen Enable MEBx debug message output Un‐Configure ME Perform AMT/ME unconfigure without password operation. Amt Wait Timer Set timer to wait before sending ASF_GET_BOOT_OPTIONS. Disable ME Set ME to Soft Temporary Disabled ... -
Page 35: Usb Configuration
ASF Enable/Disable Alert specification Format Activate Remote Assistance Process Trigger CIRA boot. USB Confirgure Enable/Disable USB configure function. PET Progress User can Enable/Disable PET Events progress to receive PET events or not. Watchdog Timer Enable/Disable Watchdog Timer. 3.4.10 USB Configuration This section is used to configure the USB Legacy USB Support Enables Legacy USB support. AUTO option disables legacy support if no USB devices are connected. DISABLE option will keep USB devices available only for EFI applications. USB3.0 Support Enable/Disable USB3.0 (XHCI) Controller support. XHCI Hand‐off This is a workaround for OSes without XHCI hand‐off support. The XHCI ownership ... -
Page 36: F81866 Super Io Configuration
change should be claimed by XHCI driver. EHCI Hand‐off This is a workaround for OSes without EHCI hand‐off support. The EHCI ownership change should be claimed by EHCI driver. Port 64/60 Emulation Enables I/O port 60h/64h emulation support. This should be enabled for the complete USB keyboard legacy support for non‐USB aware OSes. USB Transfer time‐out The time‐out value for Control, Bulk, and Interrupt transfers. Device reset time‐out USB mass Storage device start Unit command time‐out. Device power‐up delay Maximum time the device will take before it properly reports itself to the Host Controller. ‘Auto’ uses default value: for a Root port it is 100ms, for a Hub port the delay is taken from Hub descriptor. 3.4.11 F81866 Super IO Configuration System super IO chip parameters Serial Port Configuration Set Parameters of Serial Ports. User can Enable/Disable the serial port and Select an optimal settings for the Super IO Device. Parallel Port configuration Set parameters of parallel port (LPT/LPTE) ... -
Page 37: F81866 H/W Monitor
3.4.12 F81866 H/W Monitor This section is used to monitor hardware status such as temperature, fan speed and voltages. System Temperature Detects and displays the current system temperature. CPU Temperature Detects and displays the current CPU temperature. Fan1/2 Speed Detects and displays the current CPU fan speed. ... -
Page 38: Serial Port Console Redirection
3.4.13 Serial Port Console Redirection This screen provides information about functions for specifying the Serial Port Console Redirection configuration settings. Console redirection can be used to remotely operate system settings and the EFI console. Console Redirection Console Redirection Enable or Disable. Console Redirection Settings The setting specify how the host computer and the remote computer (which the user is using) will exchange data. Both computers should have the same or compatible settings. ... -
Page 39: Cpu Ppm Configuration
3.4.14 CPU PPM Configuration CPU PPM configuration parameters EIST Enables or disables Intel SpeedStep. CPU C3 Report Enable or disable CPU C3 (ACPI C2) report to OS. Config TDP LOCK Lock the Config TDP control register Long duration power limit Long duration power limit in Watts, 0 means use factory default. Long duration maintained Time window which the long duration power is maintained. Short duration power limit Short duration power limit in Watts, 0 means use factory default. ACPI T State Enable or disable ACPI state support. ... -
Page 40: Chipset
3.5 Chipset This section gives you functions to configure the system based on the specific features of the chipset. The chipset manages bus speeds and access to system memory resources. 3.5.1 PCH‐IO Configuration This section allows you to configure the North Bridge Chipset. ... -
Page 41: Usb Configuration
USB Configuration USB configuration settings PCH Azalia Configuration PCH Azalia configuration settings PCH LAN Controller Enable or disable onboard NIC. Wake on LAN Enable or disable integrated LAN to wake the system. (The Wake On LAN cannot be disabled if ME is on at Sx state.) PCIE LAN Controller Enable or disable onboard PCIE LAN Wireless LAN Controller Enable or disable onboard MPCIE LAN‐Wireless LAN. SLP_S4 Assertion Width Select a minimum assertion width of the SLP_S4# signal. Restore AC Power Loss Select AC power state when power is re‐applied after a power failure. RI Wake Up RI wake up function select. Watch Dog Function select Watch Dog function enabled or disabled. ... - Page 42 3.5.1.1 USB Configuration XHCI Pre‐Boot Driver Enable or disable XHCI Pre‐Boot driver support. XHCI Mode Mode of operation of XHCI controller HS Port #1/2/3/4 Switchable Allows for HS port switching between xHCI and EHCI. If disabled, port is routed to EHCI. If HS port is routed to xHCI, the corresponding SS port is enabled. xHCI Streams Enable or disable xHCI Maximum Primary Stream Array Size. EHCI1/2 Control the USAB EHCI (USB 2.0) functions. One EHCI controller must always be enabled. USB Ports Per‐Port Disable Control Control each of the USB ports (0~13) disabling. ...
- Page 43 3.5.1.2 PCH Azalia Configuration Azalia Control Detection of the Azalia device. Disabled=Azalia will unconditionally disabled. Enabled=Azalia will be unconditionally enabled. Auto=Azalia will enabled if present, disabled otherwise. Azalia PME Enable or disable Power Management capability of audio controller. Azalia Internal HDMI codec Enable or disable internal HDMI codec for Azalia. ...
-
Page 44: System Agent (Sa) Configuration
3.5.2 System Agent (SA) Configuration This section is used to configure the System Agent (SA) configuration. VT‐d Check to enable VT‐d function on MCH. Enable NB CRID Enable or disable NB CRID WorkAround. C‐State Pre‐Wake Controls C‐State Pre‐Wake feature for ARAT, in SSKPD[57]. Graphics Configuration Configure graphics settings Memory Configuration Memory configuration parameters ... -
Page 45: Graphics Configuration
3.5.2.1 Graphics Configuration Primary Display Select which of IGFX/PEG/PCI graphics device should be primary display or select SG for switchable Gfx. Internal Graphics Keep IGD enabled based on the setup options. DVMT Pre‐Allocated Select DVMT 5.0 Pre‐Allocated (Fixed) graphics memory size used by the internal graphics device. DVMT Total Gfx Mem Select DVMT 5.0 total graphics memory size used by the internal graphics device. Gfx Low Power Mode This option is applicable for SFF only. Graphics Performance Analyzers Enable or disable Intel graphics performance analyzers counters. ... -
Page 46: Memory Configuration
3.5.2.2 Memory Configuration ... -
Page 47: Boot Setting
3.6 Boot Setting This section is used to configure the boot features. Setup Prompt Timeout Number of seconds to wait for setup activation key. 65535(0xFFFF) means indefinite waiting. Bootup NumLock State Select the keyboard NumLock state. Quiet Boot Enables or Disables Quiet Boot option. Fast Boot Enables or Disables boot with initialization of a minimal set of devices required to launch active boot option. Has no effect for BBS boot options. GateA20 Active UPON REQUEST – GA20 can be disabled using BIOS services. ALWAYS – do not allow disabling GA20; this option is useful when any RT code is executed above 1MB. Option ROM Messages Set display mode for Option ROM. INT19 Trap Response BIOS reaction on INT19 trapping by Option ROM: IMMEDIATE – execute the trap right away; POSTPONED – execute the trap during legacy boot. ... -
Page 48: Security
Boot Option Priorities Sets the system boot order. 3.7 Security Use the Security Menu to establish system passwords Administrator Password Set administrator password. User Password Set User Password. Secure Boot Secure boot flow control. Secure boot is possible only if system runs in user mode. Secure Boot Mode Secure boot mode selector. ‘Standard’ – fixed secure boot policy, ‘custom’ – changeable image execution policy and secure boot key databases. ... - Page 49 3.8 Save and exit This screen provides functions for handling changes made to the BIOS settings and the exiting of the Setup program. Save Changes and Exit Exit system setup after saving the changes. Restore Defaults Restore or Load Defaults values for all the setup options. ...
