Summary of Contents for ASL INTERCOM BT Pro LCD

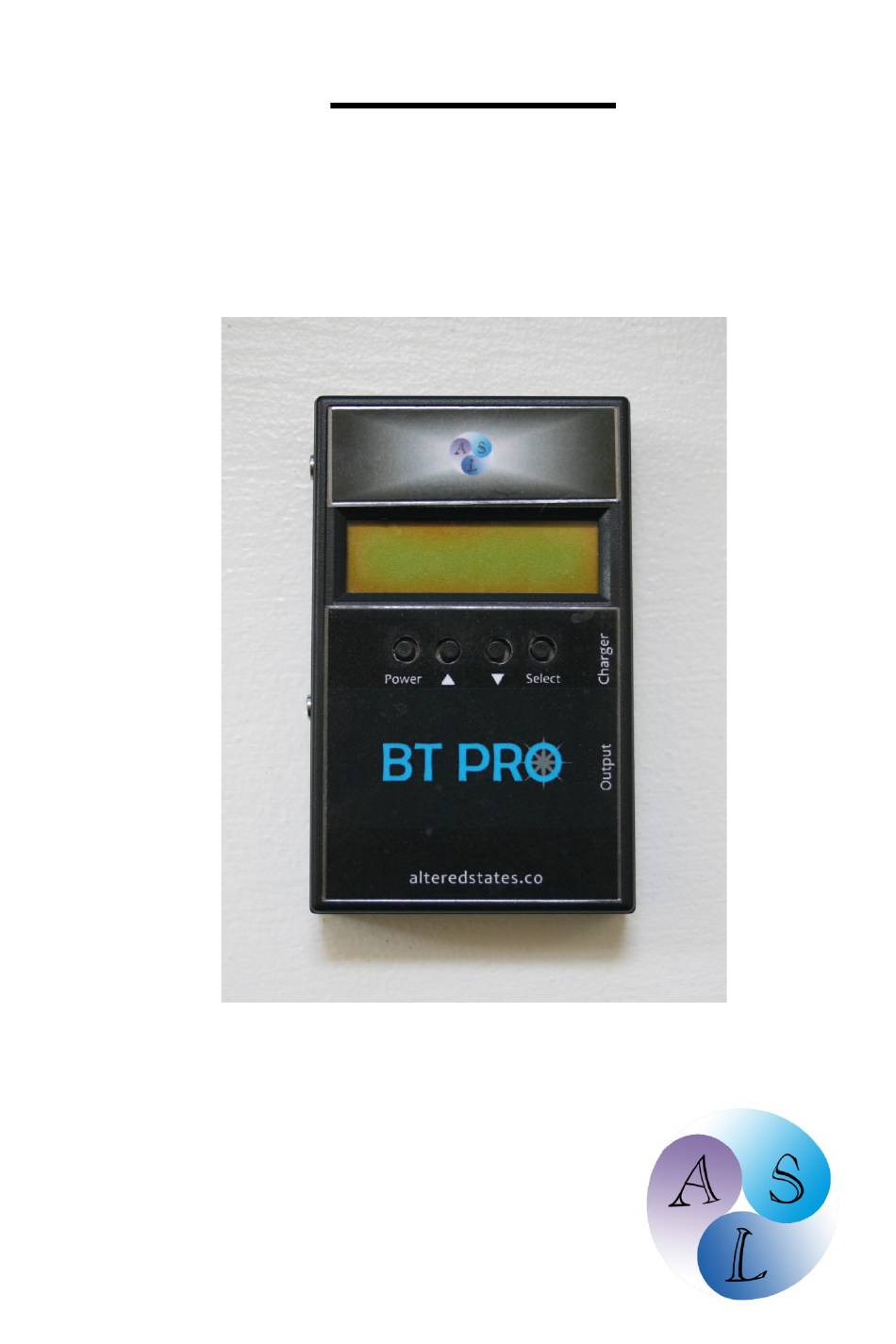

- Page 1 BT Pro LCD Multi-Function Frequency Generator Altered States Ltd alteredstates.net...
-
Page 2: Introduction
Currently, there is an enormous worldwide, market driven interest in this whole subject. We trust that this BT Pro LCD unit will help in your research as you explore the wonderful and exciting world of frequency generation….ENJOY! The Team at Altered States... -
Page 3: Table Of Contents
Description. ……………………………………………………………………………………………. 7 Battery Charging ……………………………………………………………………………………... 8 Internal power connection and system reset …………………………………………………...8 Entering Option Code………………………………………………………………………………….9 Intensity Adjustment ………………………………………………………………………………...10 SECTION 1 BT PRO LCD BASIC UNIT BT+ ……………………………………………………………………………………………………. 11 Biofeedback ………………………………………………………………………….……………….13 SECTION 2 ADDITIONAL PROGRAMS (Add-On Programs) BTAV…………………………………………………………………………………………………... 14 Magnastim ……………………………………………………………………………………………... -
Page 4: Disclaimer
DISCLAIMER Please Note that our legal advisors have instructed us to issue the following disclaimer so as to comply with international trading agreements regarding this electronic frequency generating device. Altered States products are sold for learning, self-improvement and simple relaxation. No statement contained in this publication, and no information provided by any Altered States employee, should be construed as a claim or representation that these products are intended for use in the diagnosis, cure, mitigation, treatment or prevention of disease or any other... -
Page 5: Diagram
DIAGRAM 1, 2: Signal input/output socket 3: DC 5volt Charge input socket 4: Electrode output socket 5: SELECT switch 6: DOWN switch 7: UP switch 8: POWER ON/OFF switch 9, 10: Biofeedback sensor pads 11: LCD display... -
Page 6: Technical Specifications
TECHNICAL SPECIFICATIONS: Power Supply: Internal 1.2V1200mAh AA Rechargeable NM Batteries Power Off Current: 6 mA Charger Connector: DC socket with Ø3.6 mm Outside -, Ø1.3 mm Pin + Charger Power: 5V DC 300mA + Output Voltage: 3.5Vp-p ~ 50Vp-p bi-polar or 27Vmax single polar on battery fully charged Output Short Current: >= 5 mA @ battery fully charged... -
Page 7: Description
DESCRIPTION The BT Pro LCD (LCD – liquid crystal display) is a multi-functional high output frequency generator which combines many previous machine func- tions into just one unit. This compact size and its powerful integrated per- formance enhances the high precision of the output frequencies. -
Page 8: Battery Charging
Battery Charging: The battery condition icon is at top left of the LCD screen (Fig 6). Full 3 blocks means battery is full, less number of blocks means less battery pow- er. If no block is illuminated this means that battery level is very low and must be charged. -
Page 9: Entering Option Code
Enter option code: The basic BT Pro LCD comes with software containing BT+ and Biofeed- back, all other functions are optional and can be activated by purchasing a key code. Every optional function has their unique code and associated with its serial numbers. -
Page 10: Intensity Adjustment
Intensity adjustment: FOR SAFETY REASONS, ALL PROGRAMS BEGIN WITH THE INTENSITY FULLY OFF While any program is running, press UP (7) key or increase output voltage and DOWN (6) key to decrease output voltage. Output intensity level correspondents to LCD intensity bar (Fig 7). More segments means higher output level. - Page 11 SECTION 1 BT PRO LCD BT+ (Brain Tuner Plus): Our most popular Fig 9 and useful Program! BT+ (Fig 9) is the basic function and includes these frequencies: 0.5Hz, 1.5Hz, 5Hz, 7.83Hz, 10Hz, 100 Hz , BT11. It outputs a bi-polarity equal pulse width square waveform.
- Page 12 Ear Clip Placement: Clean the ear lobe of any grease or dirt. Wet the lobe with saline (salty water or saliva) and place the electrode ear clip as shown. FREQUENCIES 0.5Hz The 0.5Hz DELTA brainwave frequency, normally associated with deep sleep and release of deeply embedded stress patterns.
-
Page 13: Biofeedback
BIOF : (Bio-Feedback) Bio-Feedback (Fig 16) is used to measure skin resistance. Fig 16 After BIOF is selected, press SELECT (5) key to start the program. There is no timer and the intensity etc. can not be adjusted. Also there is no output from output jack. -
Page 14: Btav
To set up, plug the stereo patch cable that came with your Light and Sound (L&S) device into the input at the top of the BT Pro LCD (1), plug the L&S headphones into the other socket (2), use the glasses from the L&S device as per normal. -
Page 15: Magnastim
MAGN: (Magnastim) Magnastim (Fig 15) frequencies include: 0.5, 1, 5, 7.83, 10, 20 Hz. It outputs bi-polarity equal pulse width square waveform. Timer selections are from 5 to 60 minutes. Frequency and timer selection are the same as BT+. Please note—The Headset are NOT headphones, they are magnetic electrodes which emit frequencies. - Page 16 To Set up: Fig. 16 Insert stereo patch lead into the output (4) of the BT Pro LCD unit. Insert the other end into the input of the TMS device. Insert the Magnastim Headset into the “Headset” output on the TMS device.
-
Page 17: Chakra Balance
To Set up: (fig 21) Insert stereo patch lead into the output (4) of the BT Pro LCD unit. Insert the other end into the input of the TMS COIL device. Insert the MagnaCoil into the “COIL” output on the TMS device. -
Page 18: Sleepmate
SleepMate: (SLPM) SleepMate (Fig 22) contains 4 sub programs: After function is select, press SELECT (5) key will go to sub program (Fig 23) selection then press SELECT (5) key again to start. Use the Magnastim Coil (with power adaptor and TMS amplifier) to generate frequencies. Place under or next to the pillow. -
Page 19: Bb Zapper
BBZP: (BB Zapper) This is a very useful and well-researched program. Many people have reported beneficial results using this program as part of a detoxification protocol. Individual results may vary. BB Zapper (Fig 25) runs 4 Hz equal pulse width bi-polarity square waveform to output. Intensi- ty can be adjusted during program running. - Page 20 BB Zapper continued: Zapper Electrodes: It is very important to drink at least 3-4 glasses of filtered or purified water (even dis- tilled water) during the zapping process. This will help to flush your system and allow “detoxification” to occur. YOU MUST DRINK PLENTY OF WATER WHILE ZAPPING or you will not detoxify your body correctly.
-
Page 21: Colloidal Silver
CLSV: (Colloidal Silver) Much has been written about Colloidal Silver and it’s benefits. This is an important part of Bob Becks’ suggested protocol. Colloidal Silver (Fig 26) has fixed 27V output single polar (centre pin +) voltage and timer can be selected from 5 to 60 minutes. -
Page 22: Super Sweep Frequency Zapper
SSFZ: (Super Sweep Frequency Zapper) This program is based on Hulda Clarks’ original Zapper using multiple frequencies she suggested. Super Sweep Frequency Zapper (Fig 27) brings an equal pulse width bi-polarity square waveform to output, and contains 5 sub programs. After SSFZ is selected, press SELECT (5) key go to sub program selection (Fig 28). - Page 23 Sub Programs continued (1) 7 minutes 26kHz & 2.3kHz repeated (2) 20 minutes off (3) 7 minutes 28kHz & 2.4kHz repeated (4) 20 minutes off (5) 7 minutes 30kHz & 2.5kHz repeated (6) 20 minutes off (7) 7 minutes 32kHz & 2.6kHz repeated (8) 20 minutes off (9) 7 minutes 34kHz &...
-
Page 24: T.e.n.s
TENS: (Transcutaneous Electrical Nerve Stimulation) TENS (Fig 29) has two sub programs: P_1 and P_2. Fig 29 P-1: Dual polarity pulse output in 100Hz frequency. Pulse width changes from 200us to 100us in every 3 seconds cycle on 6 steps. 200-184-167-150-134-117-100us and repeat. P-2: Dual polarity pulse output in 100Hz and 2Hz. -
Page 25: Sacred Harmony
Sleepmate). Plug the stereo patch cord into the ‘Output’ of the main device and plug into the ‘Input’ of the TMS amplifier. Plug the MagnaCoil into the ‘Coil’ output of the TMS amplifier (fig 33). Place the MagnaCoil on or next to the body during a session. BT Pro LCD with Magnacoil ‘SAHM’ selected plugs into “COIL”... -
Page 26: Faq Frequently Asked Questions
Bibliography: For further research: “In The Palaces of Memory” by George Johnson “Hooked?” by Dr. Meg Patterson Bob Beck Protocol (refer to internet) “Cure for Cancer” Hulda Clark Journal of Orthomolecular Medicine Vol.11, No.1, 1996 C.E.S. by Eric Braverman MD...
