iTech Company AMil-1900-D12e-AC User Manual

1ru 19” lcd console drawer with integrated dvi-d kvm switch - 12 port

Advertisement

Quick Links

MODEL: AMil-1900-D12e-AC
1RU 19" LCD Console Drawer with Integrated
DVI-D KVM Switch - 12 Port
(Military Grade)
User Manual
i-Tech Company LLC
EMAIL: info@itechlcd.com • WEB: www.iTechLCD.com
Modified: 04-05-2022

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AMil-1900-D12e-AC and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for iTech Company AMil-1900-D12e-AC

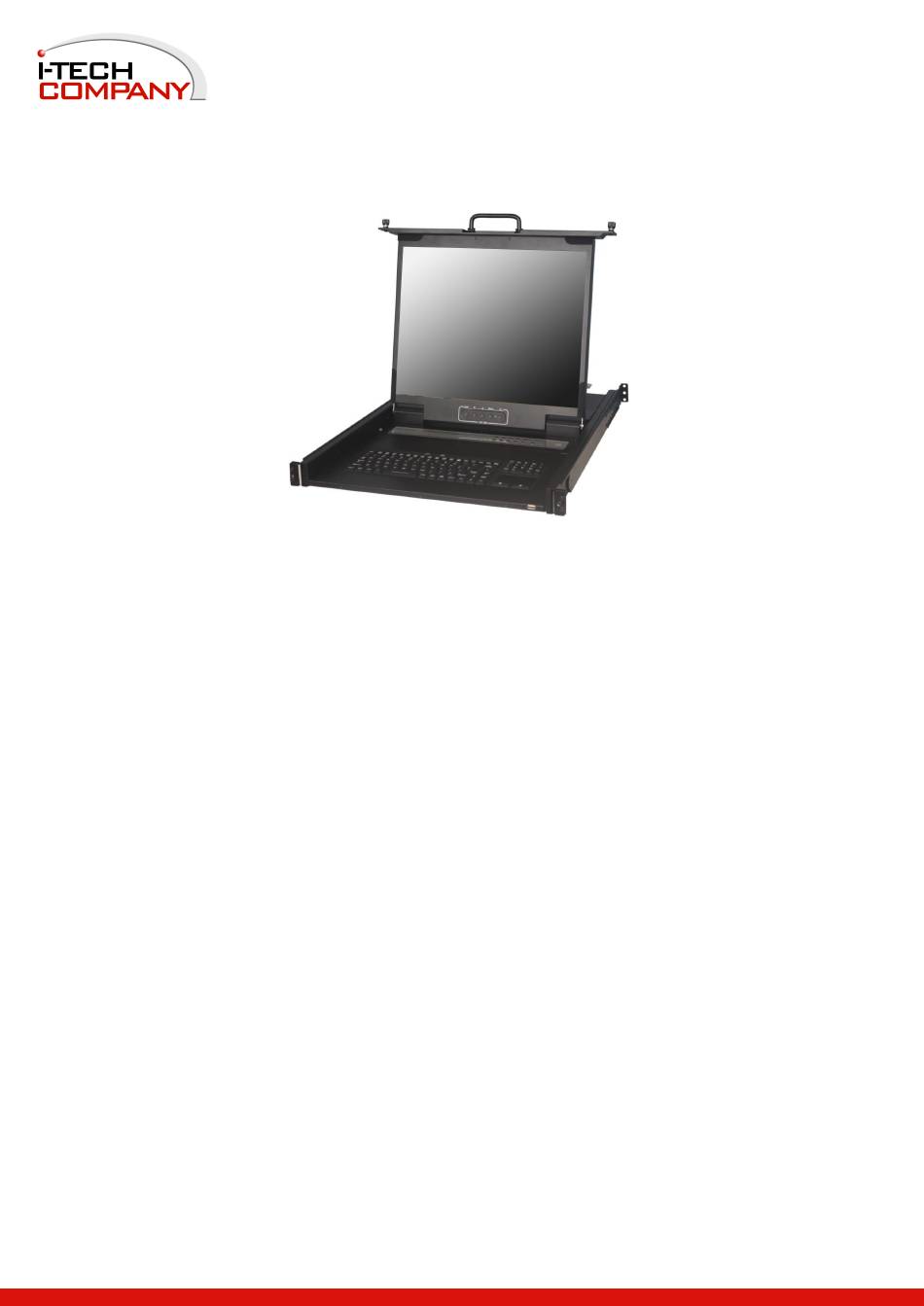

  • Page 1 MODEL: AMil-1900-D12e-AC 1RU 19” LCD Console Drawer with Integrated DVI-D KVM Switch - 12 Port (Military Grade) User Manual i-Tech Company LLC EMAIL: info@itechlcd.com • WEB: www.iTechLCD.com Modified: 04-05-2022...
  • Page 2: Table Of Contents

    Contents Introduction ..........................3 Main Features ........................3 Package Contents ........................ 3 LED Panel ........................... 4 1.3.1 Port LED Indications ....................4 1.3.2 Buttons and Operations ....................4 Back Panels ......................... 5 Front USB for External Keyboard/Mouse ................5 Hardware Installation ....................... 6 Computer/Server Installation ....................
  • Page 3: Introduction

    1. Introduction 12-port DVI LCD KVM Switch including DVI-D and USB inputs. DVI KVM Switch allows you to control up to 12 computers with DVI display output from a single keyboard, mouse and monitor. It configures with 2 additional USB console ports in the front for external keyboard/mouse control. It also supports various hotkey alternatives for free configuration.
  • Page 4: Led Panel

    LED Panel LEDs for each Host Port Port Number Select Button Figure 1. LED Panel View 1.3.1 Port LED Indications There are two LED’s for each port: ■ ONLINE LED: LED on indicating a PC is connecting to the port. Notice: ONLINE indicator will turn on only when both USB cable is well connected.
  • Page 5: Back Panels

    Back Panels Power switch AC Power lock connector Connector for each Host Port Figure 2. Back Panel View Front USB for External Keyboard/Mouse It provides one front port USB for external keyboard or mouse. USB Keyboard or Mouse 5 / 13...
  • Page 6: Hardware Installation

    2. Hardware Installation Before installation, please make sure all of peripherals and computers have been turned off. Computer/Server Installation Figure 3. Computer/Server Installation 2.1.1 Connecting KVM switch to the host system In order to connect the KVM switch of the host system performs the following steps: Step 1.
  • Page 7: Power Up Sequence

    Power Up Sequence Double check whether all cables/connectors are properly connected. You can check the keyboard and mouse connectors to ensure the connectors and cables are connected correctly. The recommended Power Up sequence is as follows: Monitor, KVM Switch, finally the computers.
  • Page 8: Rack Installation

    3. Rack Installation Step 1 Loosen screw A on both sides to slide out and remove the two rear slide rails. Rear Slide Rails Step 2 Attach the two rear slide rails to the rear vertical mounting rails of the rack cabinet using standard M6 cage nuts and screws.
  • Page 9: Usage

    4. Usage Now that you have connected your console and servers to your KVM Switch, it is ready for use. You can control the KVM switch by two methods: Using push buttons located on the LED panel of the KVM Switch Using hot-key commands through the console keyboard It takes few seconds for the video signal to refresh after switching servers.
  • Page 10: Technical Specifications

    5. Technical Specifications Feature Specification KB/MS : USB B Type Host Port Connector Video : DVI-D Single Link (digital) Host Ports Max. Distance 16 feet (5m) (KVM switch -- Host) Up to 1280 x 1024 Video Resolution (1) Hotkey Computers Selection (2) Push button Hotkey Scroll-lock...
  • Page 11: Troubleshooting

    6. Troubleshooting No LED display on KVM Switch ■ Make sure the power adapter plugged into the KVM Switch. If the LED’s still won’t light, perform soft reset to KVM switch. ■ Power cycle KVM switch. The computer has started up, but keyboard or mouse won’t work ◼...
  • Page 12: Glossary

    7. Glossary The following definitions are used throughout this User Manual. ■ Auto-Scan: A mode of operation where the KVM switch scans from one port to another, on an ongoing basis, as configured by the user. ■ Console: The all-in-one term for the keyboard, video monitor, mouse, and audio connected to a KVM switch.
  • Page 13: Certifications

    8. Certifications This equipment has been tested and found to comply with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference (2) This device must accept any interference received. Include interference that may cause undesired operation.
