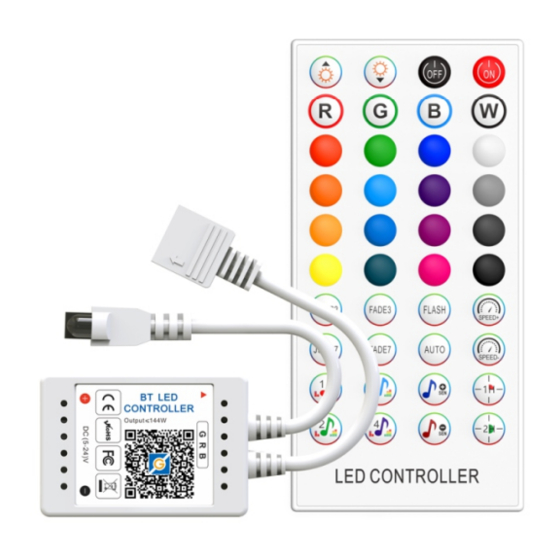

ModelNumber:ZJ-YBCDS-RGB1-I40A
ProductName:RGBBTSound-ControlLEDController(DSeries)
I:ProductParameter:
Category
DominationPrinciple
APP
Language
OperationPlatform
LEDDriveType
Channels
InputVoltage
MaxOutputPower
WorkFor
ConnectMethod
WorkingTemperature
ControlDistance
Certification
Warranty
NetWeight
Dimension(L*B*H)
LEDController
BT
ZENGGE
Chinese,English,German,French,
Spanish,Czech,Hindi,Italian,Japanese,
Korean,Polski， Portuguese,Russian
Android6.0orIOS11
Constantvoltage： MOSFET
GRB
DC(5-24)V
144W
LEDStriporotherconstantvoltagelights
CommonAnode
-20~+55℃
BT:20m
CE,RoHS,FCC
1Year
20.6g
50MM*30MM*19MM
1
Advertisement
Table of Contents
Summary of Contents for Zengge D Series

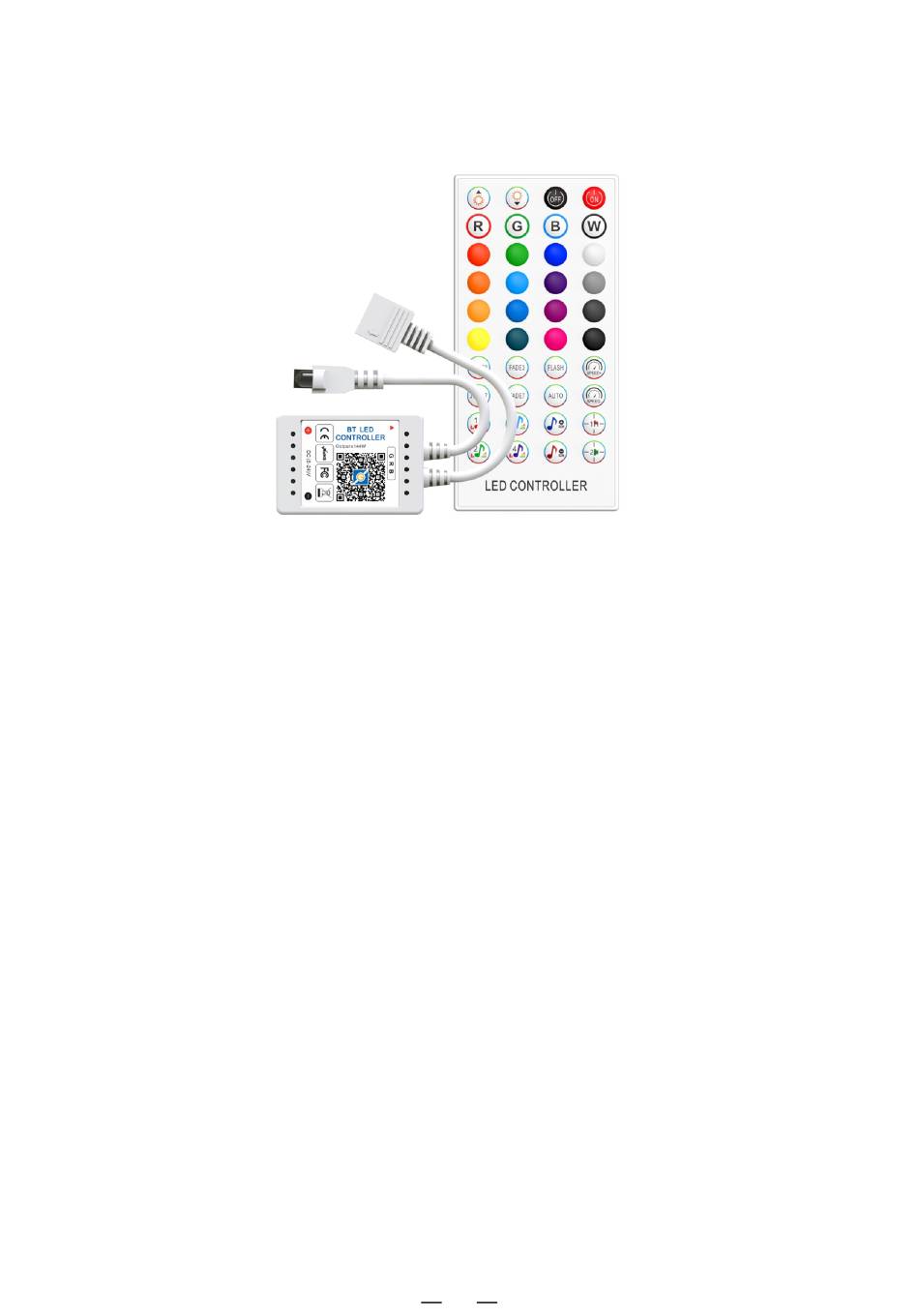

- Page 1 ModelNumber:ZJ-YBCDS-RGB1-I40A ProductName:RGBBTSound-ControlLEDController(DSeries) I:ProductParameter: Category LEDController DominationPrinciple ZENGGE Language Chinese,English,German,French, Spanish,Czech,Hindi,Italian,Japanese, Korean,Polski， Portuguese,Russian OperationPlatform Android6.0orIOS11 LEDDriveType Constantvoltage： MOSFET Channels InputVoltage DC(5-24)V MaxOutputPower 144W WorkFor LEDStriporotherconstantvoltagelights ConnectMethod CommonAnode WorkingTemperature -20~+55℃ ControlDistance BT:20m Certification CE,RoHS,FCC Warranty 1Year NetWeight 20.6g Dimension(L*B*H) 50MM*30MM*19MM...
- Page 2 II:RemoteControllerInstruction Brightness （Staticmode） Off/On ColdWhite Brightness Staticcolorsswitch 75%， 50%， 25%， 0% Jump3Mode Fade3Mode FlashMode Speed+/- Jump7Mode （Dynamicmode） Fade7Mode AutomaticCycleMode 1/2HourDelayOff MusicMode1-4 SoundSensitivity+/- III:APPInterfaceInstruction a)Colors Support16millioncolorscontrolandbrightnessadjustment.5owncreatedcolorsand brightnesslevelwillbestoredbypressinglongonthe “ DIY” buttonandrecalledby shortpressingthesamebutton.Onthedisplaytopleftcorner,theindividualchannels R/G/Bcanbecalledseparatelyandadjustedfrom0-255toobtainthedesiredcolors.
- Page 3 b)Functions 20presetdynamicmodes,convenientforuserstoaccessdifferentlightingmodes directly. Supportforcustomizedcolorsandpreservation. Eachgroupof16colorscanbeselectedfordifferentcolorstransformations,andthere arethreedynamicmodesofgradualchange,jump,andstrobeforselection. Addedcandlelightmodefunction,adjustbrightness,speedandcolorfreely,thelight canbeadjustedtobreathandbeatlikethecandlelighttocreateawarmatmosphere. c)Microphone Click/goto “Mic” interfaceoftheAPP.InthisfunctiontheconnectedLEDlightlightsup dependingonthevolume/noisefromtheoutsidelikeamicrophone.Thisalsoworks whenplayingmusicorthereisanoisefromoutside,thelightwillbegin “ dancing” base ondifferentrhythm.Themicrophonesensitivitycanbeadjustedbytheslider.Thereare twowaystoinputtheaudiosignalonthecontroller,builtinAPPmicrophoneand externalmicrophone(Forsoundcontrolversion).
- Page 4 d)Music Synchronizationfunctionoflightingandmusicrhythm TheIOSsystemneedstodownloadmusicfilesiniTunesorimportmusicfromPC accordingtotheinstructionstosynchronizethelightswiththemusicrhythm. Androidsystemneedstodownloadmusicfilestothemobilephoneforuse. e)Cinema Obtainthecolorthroughmobilephonecameraandchangethecoloreffectaccordingto theTVscreenautomatically,creatingawonderfulviewingatmosphere.
- Page 5 f)Camera Cameracapturebackgroundcolorfunction Manualmode:Manuallypresstoselectwherethecameraiscurrentlypointedforcolor recognitionandconversion. Automode:Theareawherethecameraisaimedatisthecoloringarea,andthelightcolor willchangedaccordingly. g)GroupFeature Thismodeallowsyoutocreatedifferentgroupstocontrolmorethanonecontrollers,for example,ifyouhave5controllerunits,youcanuse2devicesinyourlivingroom&theothers outonyourpatio.Thegroupingfunctionallowsyoutoeithercontrolthesedevices individuallyortogroupthemtogetherasoneunit.
- Page 6 h)Gradualchangeordelayswitchfunction Youcansetthetimertodelayorgraduallyturnonandoffthelightsaccordingtoyour preferences. i)Lighttimer Youcanhaveyourlightsautomaticallyturnonoroffinaspecifiedtimebysettingupthe timer.Todoso,pressonthetoprightclockicon,thenfollowthepromptstosetthetimers toautomaticallyswitchthelightsON/OFFwithspecifiedcolorsorchangingmodesonthe specifiedtime. ...
- Page 7 ATTENTIONS 1.Pleaseusetheproductinadryenvironment. 2.Pleaseusetheinputvoltageat5-24VDCvoltage,mustnotconnectinto220VACdirectly. 3.Theproductisrequestedcommonanodeconnection.Thewrongconnectionwillcause amalfunction.
- Page 8 FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
