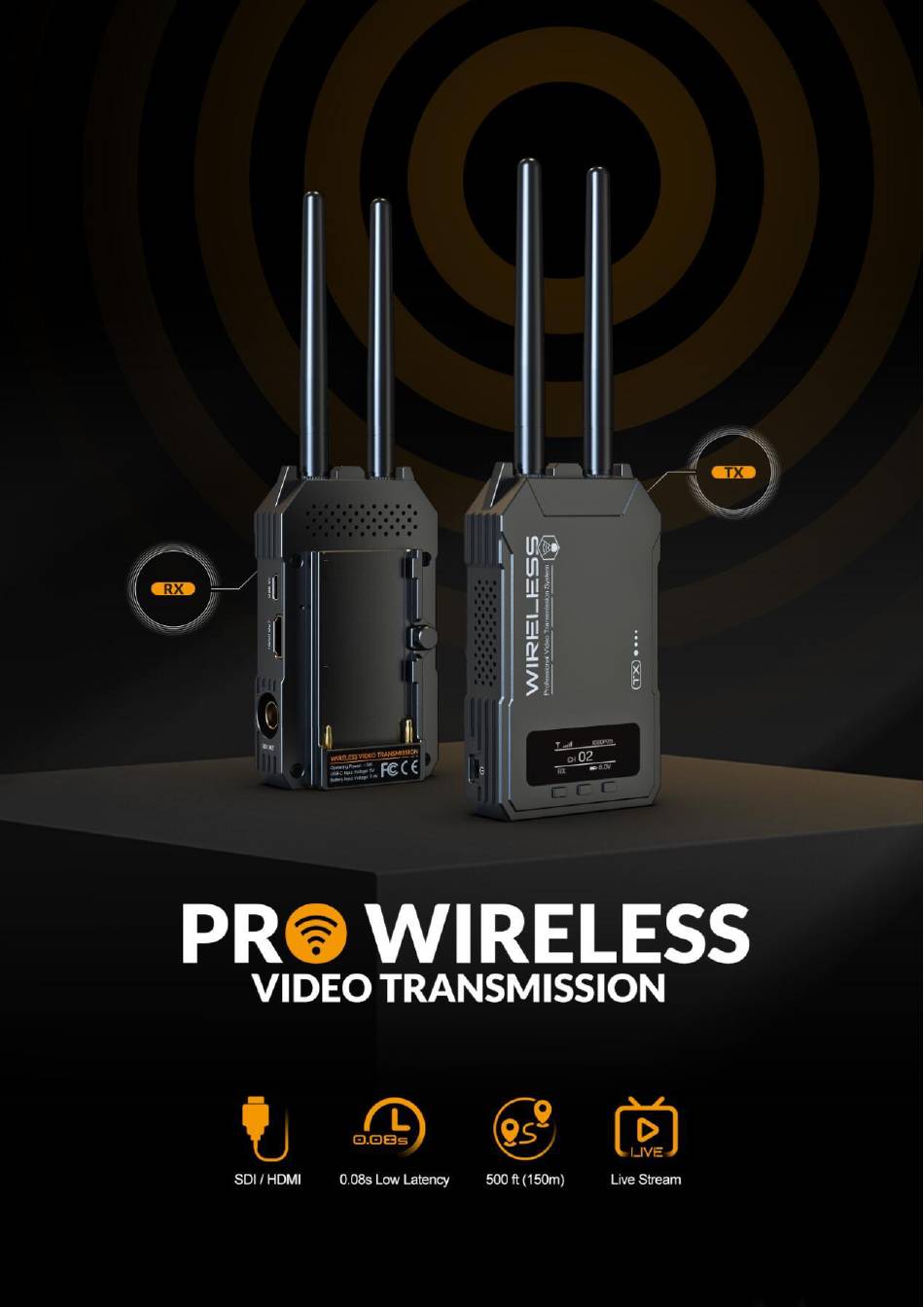

Summary of Contents for Lilliput PRO WIRELESS WS500
- Page 2 Important Safety Instructions The device has been tested for conformance to safety regulations and requirements, and has been certified for international use. However, like all electronic equipment, the device should be used with care. Please read and follow the safety instructions to protect yourself from possible injury and to minimize the risk of damage to the unit.
- Page 3 Accessories Wireless Antenna 4pcs USB-C Cable Electronic User Manual...
-
Page 4: Table Of Contents
Content 1. Features ......................5 2. Description ..................... 6 3. Application ..................... 8 4. Battery installation/removal ................9 5. Menu ......................10 6. Specification ....................11 7. APP Monitoring .................... 12 8. Trouble Shooting ................... 13... -
Page 5: Features
1. Features OLED display Automatic frequency selection at high quality frequencies. Transmission distance up to 500ft (150m). Minimum latency up to 0.08s Transmitter supports SDI and HDMI input. Receiver supports SDI and HDMI output. ... -
Page 6: Description
2. Description 2-1 Transmitter ①Antenna connector (RP-SMA male) ②USB 5V ③HDMI input ④SDI input ⑤OLED screen ⑥＜Select button ⑦Menu/Confirm button ⑧＞Select button ⑨1/4” screw mount ⑩Power switch... - Page 7 2-2 Receiver ①Antenna connector (RP-SMA male) ②USB 5V ③HDMI output ④SDI output ⑤OLED screen ⑥＜Select button ⑦Menu/Confirm button ⑧＞Select button ⑨1/4” screw mount ⑩Power switch...
-
Page 8: Application
3. Application SDI/HDMI SDI/HDMI output input Monitor Transmitter Receiver Mobile device (IOS) The connection process is shown in the diagram above. The camera and transmitter can be connected via an SDI/HDMI cable. After receiving video signal, the receiver outputs to monitor side via the SDI/HDMI cable. -
Page 9: Battery Installation/Removal
4. Battery installation/removal Battery mounting (compatible with Sony NP-F series batteries) Battery removal... -
Page 10: Menu
5. Menu 5-1 Power on the transmitter and receiver 5-2 Press and hold “>” select button to get the local QR code, install the app using your mobile device, and then use the app to scan the QR code to connect. QR code is shown as: 5-3 OLED screen ①... -
Page 11: Specification
③ Transmitter/receiver device: show whether the device is a transmitter or a receiver. ④ Video signal display: currently connected wireless video signal, or no video signal. ⑤ Battery level/DC input: displays the battery level and DC input information. 5-4 Open the menu Press and hold the Menu/Confirm button to call out menu. -
Page 12: App Monitoring
7. APP Monitoring 1. Using an IOS device, download "Wireless video" from the Apple App Store (Android version is not supported at the moment). 2. Press and hold the Select button to get the local QR code, then use a mobile device to scan the QR code to connect. -
Page 13: Trouble Shooting
8. Trouble Shooting 1) Make sure that the transmitter and receiver are connected to the same channel. 2) Please check that antenna is correctly installed and locked in place. 3) Please check that the power supply battery or power supply cable is correctly connected. 4) Please check that the transmitter and receiver are successfully paired.
