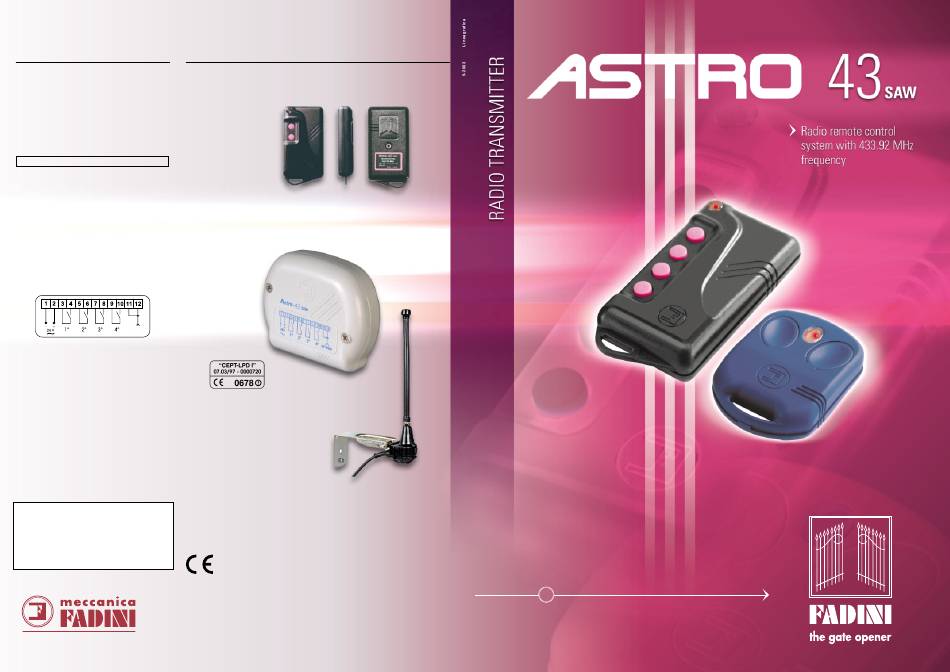

ASTRO 43 SAW Quick Start Manual

43
ASTRO RADIO TRANSMITTER
SAW

Technical specifications

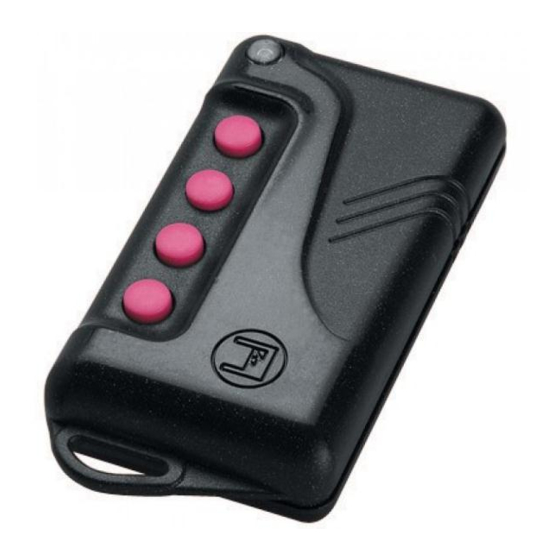

TRANSMITTER
Working frequency .........................................................433.92 MHz
Frequency tolerance.........................................................+/– 75 KHz
Max. apparent radiated power .............................................0.1 mW
Max. apparent power of non essential emissions....................4 nW
Class of modulation.............................................................AM/ASK
Power supply (alkaline battery) ....................................12 Vdc ±10%
Absoption.................................................................................15 mA
Working temperature....................................................–10°C +55°C
Distance range .........................................................................120 m
Signal led ......................................................................................red
APPROVAL No. CEPT LPD - I - 07·03·97·0000720
RADIO RECEIVER
Working frequency .........................................................433.92 MHz
Local oscillator frequency...............................................433.42 MHz
Frequency tolerance.........................................................+/– 75 KHz
Intermediate frequency value...............................................500 KHz
Stray emission max. power.......................................................4 nW
Aerial impedance value.............................................................50 Ω
Sensitivity (to working pulse) ..................................................1.5 µV
Alternate current power supply ..............................................24 Vac
D.C. power supply ............................................................13.8÷24 dc
Absorption ...............................................................................20 mA
Working temperature....................................................–10°C +55°C
Safety delay time ...................................................................150 ms
Relay contact rating ..................................................0.5 A - 125 Vac
Distance range .........................................................................120 m
aerial

WARNINGS

• A radio signal is activated by pressing a trasmitter button and
remains activated as long as the button is kept down. A red led
switches on to visually confirm the signal being activated.
• An electric contact is closed instantaneously on releasing the
button and the unit becomes operative.
• Replace the 12 V battery should the led flash on/off.
• To achieve best performance of the aerial, make sure that the core
is connected to the terminal identified with the aerial symbol, and
the braided wire to its respective terminal.
• Keep the transmitter away from heat sources and preserve it from
shocks.
• Dispose properly of run down batteries.
Distributor's box
The manufacturers reserve the right to change the products without any previous notice
The "CE" mark certifies that the operator conforms to the essential requirements of the European Directive art. 10 EEC 73/23,
in relation to the manufacturer's declaration for the supplied items, in compliance with the body of the regulations ISO 9000=
UNI EN 29000. Automation in conformity to EN 12453, EN 12445 safety standards.
®
The growth of MECCANICA FADINI has always been based on the development of guaranteed products thanks to our "TOTAL
QUALITY CONTROL" system which ensures constant quality standards, updated knowledge of the European Standards and
compliance with their requirements, in view of an ever increasing process of improvement.
s.n.c.
AUTOMATIC GATE MANUFACTURERS
Via Mantova, 177/A - 37053 Cerea (Verona) Italy - Tel. 0442 330422 r.a. - Fax 0442 331054 - e-mail: info@fadini.net - www.fadini.net
Dimensions
84x43x17 mm
91x73x27 mm
240x145x40 mm
EUROPEAN MARK CERTIFYING • DECLARATION OF CONFORMITY
C O N F O R M I T Y T O T H E • GENERAL WARNINGS
ESSENTIAL REQUIREMENTS OF • EN 12453, EN 12445 STANDARDS
THE STANDARDS 98/37 EC • CEI EN 60204-1 STANDARDS
• WARRANTY CERTIFICATE ON THE CUSTOMER'S REQUEST
