Feniks FUTURE
Harness/Container System Instruction Manual
model: 200; 201
Instruction Manual No. 033-02-200, edition IA, 2012

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Feniks FUTURE and is the answer not in the manual?

Questions and answers

Related Manuals for Air-Pol Feniks FUTURE

Summary of Contents for Air-Pol Feniks FUTURE

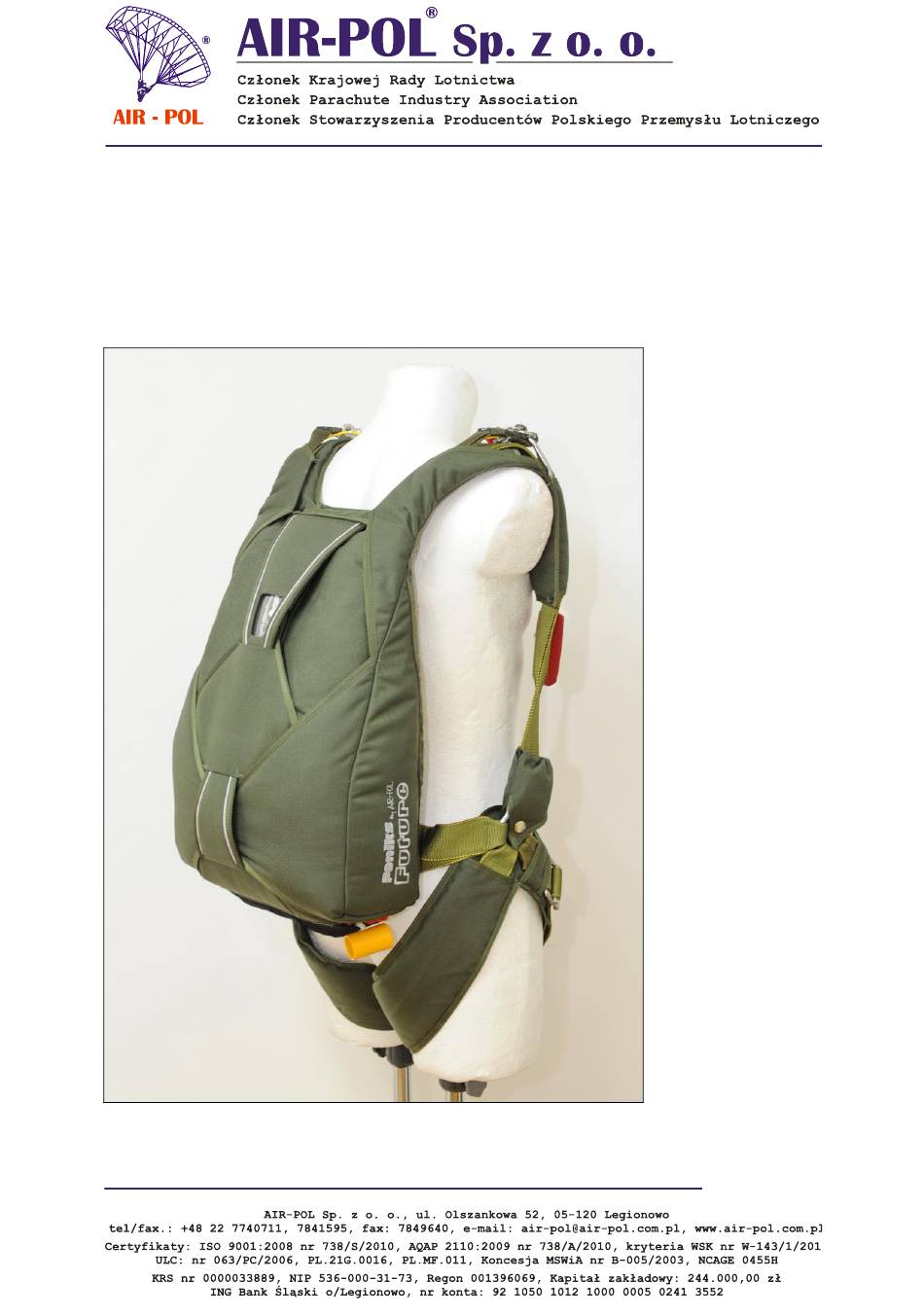

  • Page 1 Feniks FUTURE Harness/Container System Instruction Manual model: 200; 201 Instruction Manual No. 033-02-200, edition IA, 2012...
  • Page 2 • Always follow national parachute safety rules. AIR-POL provides warranty – valid for a period of 24 months as of the date of purchase – for all parachute components. Should you notice any anomalies or threat to the functionality of your system, the parachute ought to be analysed by an expert recommended by an authorised dealership.

  • Page 3: Table Of Contents

    PERIODICAL SERVICING AND REPAIR ......................... 36 PERIODICAL MAINTENANCE ..................................36 STORAGE ........................................36 REPAIRS ........................................36 AIR-POL Sp. z o.o. – 05-120 Legionowo, ul. Olszankowa 52, www.air-pol.com.pl tel.: (+4822) 774 0711, (+4822) 784 1595, (+4822) 774 4832, fax (+4822) 784 9640, @: air-pol@air-pol.com.pl...

  • Page 4: Technical Specification

    1. INTENDED PURPOSE The Feniks FUTURE system was designed for skydivers skilled in freefall or attending an AFF course. The Feniks FUTURE system is the perfect choice for all skydiving sport disciplines. The system can be used with a variety of canopies, with the ultimate choice dependent on the intended use (client expectations).
  • Page 5 19. hand-deployed collapsible pilot chute handle 20. main parachute hand-deployed collapsible pilot chute pouch Photo No. 2 AIR-POL Sp. z o.o. – 05-120 Legionowo, ul. Olszankowa 52, www.air-pol.com.pl tel.: (+4822) 774 0711, (+4822) 784 1595, (+4822) 774 4832, fax (+4822) 784 9640, @: air-pol@air-pol.com.pl...

  • Page 6: Technical Data

    2. Suspension line rubber stows: ........................1 1/4” x 3/8” 3. Reserve canopy free-bag loop: ..........................NA-28 AIR-POL Sp. z o.o. – 05-120 Legionowo, ul. Olszankowa 52, www.air-pol.com.pl tel.: (+4822) 774 0711, (+4822) 784 1595, (+4822) 774 4832, fax (+4822) 784 9640, @: air-pol@air-pol.com.pl...

  • Page 7: Reserve Parachute Components Assembly

    If the canopy is delivered with soft links, follow the respective assembly manual delivered with the links. Should you decide to connect the reserve canopy using soft links not delivered with that canopy or not offered by Air-Pol, make sure that such links are duly certified for use in reserve canopy assembly.
  • Page 8 5. Check the length and symmetry of steering lines. Photo No. 6 AIR-POL Sp. z o.o. – 05-120 Legionowo, ul. Olszankowa 52, www.air-pol.com.pl tel.: (+4822) 774 0711, (+4822) 784 1595, (+4822) 774 4832, fax (+4822) 784 9640, @: air-pol@air-pol.com.pl...

  • Page 9: Automatic Activation Device (Aad) Assembly

    Photo No. 9 AIR-POL Sp. z o.o. – 05-120 Legionowo, ul. Olszankowa 52, www.air-pol.com.pl tel.: (+4822) 774 0711, (+4822) 784 1595, (+4822) 774 4832, fax (+4822) 784 9640, @: air-pol@air-pol.com.pl...

  • Page 10: Packing The Reserve Parachute

    After you finish packing, count your tools. Their number has to be identical to the number you began packing with! AIR-POL Sp. z o.o. – 05-120 Legionowo, ul. Olszankowa 52, www.air-pol.com.pl tel.: (+4822) 774 0711, (+4822) 784 1595, (+4822) 774 4832, fax (+4822) 784 9640, @: air-pol@air-pol.com.pl...

  • Page 11: System Component Assembly

    (2) to prevent it sliding out. Photo No. 10 AIR-POL Sp. z o.o. – 05-120 Legionowo, ul. Olszankowa 52, www.air-pol.com.pl tel.: (+4822) 774 0711, (+4822) 784 1595, (+4822) 774 4832, fax (+4822) 784 9640, @: air-pol@air-pol.com.pl...
  • Page 12 Photo No. 15 AIR-POL Sp. z o.o. – 05-120 Legionowo, ul. Olszankowa 52, www.air-pol.com.pl tel.: (+4822) 774 0711, (+4822) 784 1595, (+4822) 774 4832, fax (+4822) 784 9640, @: air-pol@air-pol.com.pl...

  • Page 13: Connecting The Rsl System To Risers

    4. Attach the toggle to the riser with the use of toggle flaps and the riser pouch. Photo No. 18 AIR-POL Sp. z o.o. – 05-120 Legionowo, ul. Olszankowa 52, www.air-pol.com.pl tel.: (+4822) 774 0711, (+4822) 784 1595, (+4822) 774 4832, fax (+4822) 784 9640, @: air-pol@air-pol.com.pl...

  • Page 14: Folding The Canopy And Preparing It For Placement In The Free-Bag

    Thread the loop ends through grommets (4) at the exit opening of the casing. Photo No. 23 AIR-POL Sp. z o.o. – 05-120 Legionowo, ul. Olszankowa 52, www.air-pol.com.pl tel.: (+4822) 774 0711, (+4822) 784 1595, (+4822) 774 4832, fax (+4822) 784 9640, @: air-pol@air-pol.com.pl...
  • Page 15 Make sure that canopy suspension lines are not trapped between Velcro tape sections. Photo No. 26 AIR-POL Sp. z o.o. – 05-120 Legionowo, ul. Olszankowa 52, www.air-pol.com.pl tel.: (+4822) 774 0711, (+4822) 784 1595, (+4822) 774 4832, fax (+4822) 784 9640, @: air-pol@air-pol.com.pl...
  • Page 16 Should the “Smart Loop” system not be used, that line will be absent. Photo No. 29 AIR-POL Sp. z o.o. – 05-120 Legionowo, ul. Olszankowa 52, www.air-pol.com.pl tel.: (+4822) 774 0711, (+4822) 784 1595, (+4822) 774 4832, fax (+4822) 784 9640, @: air-pol@air-pol.com.pl...
  • Page 17 Loop” line in the tape pouch (13) next to the eye. Photo No. 32 AIR-POL Sp. z o.o. – 05-120 Legionowo, ul. Olszankowa 52, www.air-pol.com.pl tel.: (+4822) 774 0711, (+4822) 784 1595, (+4822) 774 4832, fax (+4822) 784 9640, @: air-pol@air-pol.com.pl...
  • Page 18 33. Place the “Smart Loop” line, including the attachment knot, under upper flap No. 5. Photo No. 36 AIR-POL Sp. z o.o. – 05-120 Legionowo, ul. Olszankowa 52, www.air-pol.com.pl tel.: (+4822) 774 0711, (+4822) 784 1595, (+4822) 774 4832, fax (+4822) 784 9640, @: air-pol@air-pol.com.pl...
  • Page 19 After you finish packing, count your tools. Their number has to be identical to the number you began packing with! AIR-POL Sp. z o.o. – 05-120 Legionowo, ul. Olszankowa 52, www.air-pol.com.pl tel.: (+4822) 774 0711, (+4822) 784 1595, (+4822) 774 4832, fax (+4822) 784 9640, @: air-pol@air-pol.com.pl...

  • Page 20: Main Parachute Components Assembly

    If the canopy is delivered with soft links, follow the respective assembly manual delivered with the links. Should you decide to connect the reserve canopy using soft links not delivered with that canopy or not offered by Air-Pol, make sure that such links are duly certified for use in reserve canopy assembly.
  • Page 21 Photo No. 44 5. Check the length and symmetry of steering lines. AIR-POL Sp. z o.o. – 05-120 Legionowo, ul. Olszankowa 52, www.air-pol.com.pl tel.: (+4822) 774 0711, (+4822) 784 1595, (+4822) 774 4832, fax (+4822) 784 9640, @: air-pol@air-pol.com.pl...

  • Page 22: Connecting Main Parachute Risers To The Harness/Container. The Three-Ring System

    – riser rings should be lower, steering toggles should be higher. Photo No. 47 AIR-POL Sp. z o.o. – 05-120 Legionowo, ul. Olszankowa 52, www.air-pol.com.pl tel.: (+4822) 774 0711, (+4822) 784 1595, (+4822) 774 4832, fax (+4822) 784 9640, @: air-pol@air-pol.com.pl...
  • Page 23 Photo No. 51 AIR-POL Sp. z o.o. – 05-120 Legionowo, ul. Olszankowa 52, www.air-pol.com.pl tel.: (+4822) 774 0711, (+4822) 784 1595, (+4822) 774 4832, fax (+4822) 784 9640, @: air-pol@air-pol.com.pl...
  • Page 24 Check your three-ring release system no less frequently before the first jump on any given day. AIR-POL Sp. z o.o. – 05-120 Legionowo, ul. Olszankowa 52, www.air-pol.com.pl tel.: (+4822) 774 0711, (+4822) 784 1595, (+4822) 774 4832, fax (+4822) 784 9640, @: air-pol@air-pol.com.pl...

  • Page 25: Hand-Deployed Collapsible Pilot Chute - Kill-Line Connecting Tape And Main Canopy Bag Assembly

    During canopy flight, the pilot chute is redundant and slows the canopy down, not allowing it to reach full speed. The collapse mechanism applied in the Air-Pol harness serves to minimise the air resistance generated by an inflated pilot chute.

  • Page 26: Section V

    (7) on the reverse side of the riser. Photo No. 58 AIR-POL Sp. z o.o. – 05-120 Legionowo, ul. Olszankowa 52, www.air-pol.com.pl tel.: (+4822) 774 0711, (+4822) 784 1595, (+4822) 774 4832, fax (+4822) 784 9640, @: air-pol@air-pol.com.pl...

  • Page 27: Closing The Bag With The Hand-Deployed Collapsible Pilot Chute Attached

    – trapped fabric may be damaged during the deployment process. AIR-POL Sp. z o.o. – 05-120 Legionowo, ul. Olszankowa 52, www.air-pol.com.pl tel.: (+4822) 774 0711, (+4822) 784 1595, (+4822) 774 4832, fax (+4822) 784 9640, @: air-pol@air-pol.com.pl...

  • Page 28: Closing The Main Parachute Container With The Hand-Deployed Collapsible Pilot Chute Attached

    AIR-POL Sp. z o.o. – 05-120 Legionowo, ul. Olszankowa 52, www.air-pol.com.pl tel.: (+4822) 774 0711, (+4822) 784 1595, (+4822) 774 4832, fax (+4822) 784 9640, @: air-pol@air-pol.com.pl...
  • Page 29 5 cm deep, thus preventing its accidental slid-out during the skydive. AIR-POL Sp. z o.o. – 05-120 Legionowo, ul. Olszankowa 52, www.air-pol.com.pl tel.: (+4822) 774 0711, (+4822) 784 1595, (+4822) 774 4832, fax (+4822) 784 9640, @: air-pol@air-pol.com.pl...

  • Page 30: Folding The Hand-Deployed Collapsible Pilot Chute

    3. Fold two opposite edges towards the middle of the chute Photo No. 69 AIR-POL Sp. z o.o. – 05-120 Legionowo, ul. Olszankowa 52, www.air-pol.com.pl tel.: (+4822) 774 0711, (+4822) 784 1595, (+4822) 774 4832, fax (+4822) 784 9640, @: air-pol@air-pol.com.pl...
  • Page 31 Photo No. 73 AIR-POL Sp. z o.o. – 05-120 Legionowo, ul. Olszankowa 52, www.air-pol.com.pl tel.: (+4822) 774 0711, (+4822) 784 1595, (+4822) 774 4832, fax (+4822) 784 9640, @: air-pol@air-pol.com.pl...

  • Page 32: Harness Fitting And Adjustment

    The chest strap shall be placed at chest level or slightly above, • The hip harness joint shall be placed at hip bone level, AIR-POL Sp. z o.o. – 05-120 Legionowo, ul. Olszankowa 52, www.air-pol.com.pl tel.: (+4822) 774 0711, (+4822) 784 1595, (+4822) 774 4832, fax (+4822) 784 9640, @: air-pol@air-pol.com.pl...

  • Page 33: In-Air And Ground Procedures

    AIR-POL Sp. z o.o. – 05-120 Legionowo, ul. Olszankowa 52, www.air-pol.com.pl tel.: (+4822) 774 0711, (+4822) 784 1595, (+4822) 774 4832, fax (+4822) 784 9640, @: air-pol@air-pol.com.pl...

  • Page 34: Recommended Method Of Proceeding

    Rip it from the pouch with a rounded hand movement (away AIR-POL Sp. z o.o. – 05-120 Legionowo, ul. Olszankowa 52, www.air-pol.com.pl tel.: (+4822) 774 0711, (+4822) 784 1595, (+4822) 774 4832, fax (+4822) 784 9640, @: air-pol@air-pol.com.pl...
  • Page 35 After the canopy inflates check its condition, then unstow your steering lines by gripping the steering toggles, and pulling them downwards vigorously and symmetrically. AIR-POL Sp. z o.o. – 05-120 Legionowo, ul. Olszankowa 52, www.air-pol.com.pl tel.: (+4822) 774 0711, (+4822) 784 1595, (+4822) 774 4832, fax (+4822) 784 9640, @: air-pol@air-pol.com.pl...

  • Page 36: Periodical Servicing And Repair

    • We recommend that any major repair be performed by the manufacturer. AIR-POL Sp. z o.o. – 05-120 Legionowo, ul. Olszankowa 52, www.air-pol.com.pl tel.: (+4822) 774 0711, (+4822) 784 1595, (+4822) 774 4832, fax (+4822) 784 9640, @: air-pol@air-pol.com.pl...
