Summary of Contents for Vauban Systems V-EXT4+

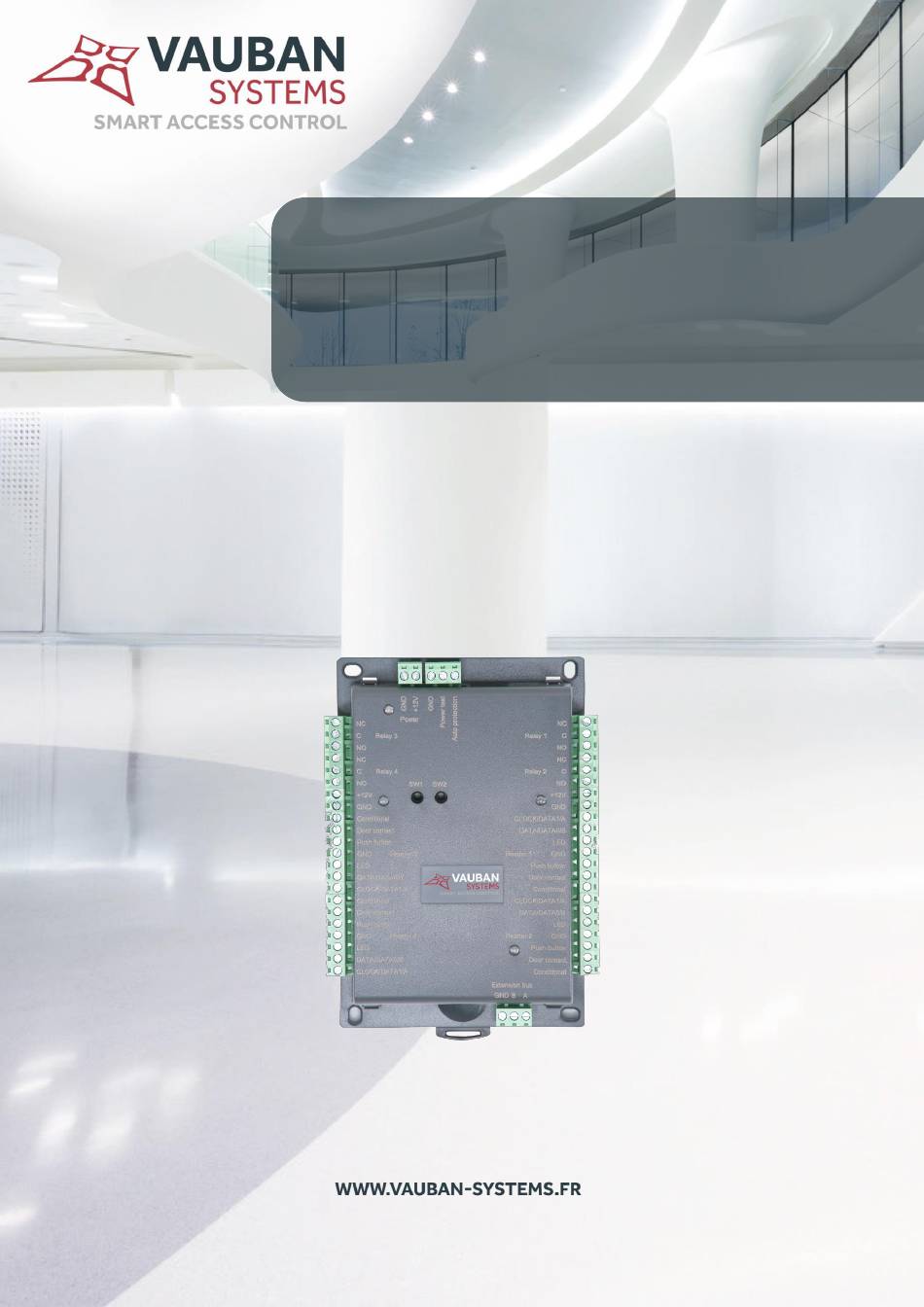

- Page 1 V-EXT4+ V-EXT4+ 220 TECHNICAL INFORMATION...
-
Page 2: Table Of Contents
Remerciements ..............Erreur ! Signet non défini. Informations et recommandations ................4 Caractéristiques techniques ..................5 V-EXT4+ ............................5 V-EXT4+ 220 ........................... 5 Raccordement d’un dispositif utilisant le protocole wiegand, clock&data ou RS485 .. 6 Raccordement à la centrale VERSO ................7 Raccordement à... - Page 3 ACKNOWLEDGEMENT Dear client, You have just purchased a “VEXT-4+” extension module manufactured by the French company Vauban Systems. We thank you for your interest in our products. If you want more information about our range, please visit our website www.vauban-systems.fr.
-
Page 4: Informations Et Recommandations
INFORMATIONS ET RECOMMANDATIONS Pursuant to European directive UTE C00-200 incorporating directives 2004/108/CE, V- EXT4+ complies with the following standards: NF EN 50081-1 governing electromagnetic radiation NF EN 50082-1 governing electromagnetic susceptibility. Cabling recommendations: the cables used to connect readers, the network and other peripherals must be installed in accordance with the instructions for Level 2 (protected environment) of standard NF EN 61000-4-4. -
Page 5: Caractéristiques Techniques
CARACTERISTIQUES TECHNIQUES V-EXT4+ Maximum power consumption 400 mA Supply voltage 9 – 14VDC Weight with housing 282g Housing dimensions 170 x 119 x 40 mm Operating temperature 0°C à + 50°C Control relay 1A / 12V – 1A / 24V V-EXT4+ 220 Weight with housing Housing dimensions... -
Page 6: Raccordement D'un Dispositif Utilisant Le Protocole Wiegand, Clock&Data Ou Rs485
CONNECTING A DEVICE USING THE WIEGAND, CLOCK&DATA OR RS485 PROTOCOL WIEGAND : Proximity readers (HID, STID, DESTEIR, INDALA, …) Key pads (XPR, …) Biometric readers (MORPHO, …) +12V/200mA max Radio receivers (TECHNO EM, …) DATA1 / CLOCK /A DATA0 / DATA /B CLOCK &... - Page 7 CONNECTING VERSO CONTROL UNIT 8 7 6 5 4 3 2 1 Cable connector RJ45 VERSO V-EXT4 RS485 Up to 10 modules per VERSO INFORMATION : 2 conductors (2 pairs recommended) Max. distance: 750m Cable type: 0,6mm (SYT conseillé) WARNING: Do not install the cables near other high voltage or high current cables, particularly 220V or higher.
-
Page 8: Raccordement À La Centrale Verso
RACCORDEMENT A LA CENTRALE VERSO+ Up to 10 Bus RS485 modules per VERSO+ INFORMATION : 2 conductors (2 pairs recommended) Max. distance: 750m Cable type: 0,6mm (SYT conseillé) WARNING: Do not install the cables near other high voltage or high current cables, particularly 220V or higher. -
Page 9: Raccordement D'une Gâche À Rupture De Courant Et D'une Ventouse Électromagnétique Fonctionnant Par Manque De Courant
CONNECTING A POWER LOSS BOLT AND AN ELECTROMAGNETIC DOOR LOCK OPERATING ON POWER LOSS Anti-return diode Power supply +12V 0V WARNING: In order to prevent random malfunctions that may interfere with proper system operation due to back-currents, it is imperative to use and connect the anti-back-current diodes supplied with the unit in compliance with the cabling diagram above. - Page 10 CONNECTING A STANDARD POWER-ON DOOR LOCK Anti-return diode Power supply +12V 0V WARNING: In order to prevent random malfunctions that may interfere with proper system operation due to back-currents, it is imperative to use and connect the anti-back-current diodes supplied with the unit in compliance with the cabling diagram above. Even when using an additional uninterruptible power supply for locking separate to that of the unit, it is obligatory to follow the above cabling diagram.
- Page 11 CONNECTING A PUSH BUTTON AND MICROSWITCH TO THE COFFRET 220 ENCLOSURE...
- Page 12 CONNECTING THE POWER SUPPLY PHASE NEUTRAL EARTH 12V / 3A output +12V (door release) 12V / 2A output +12V (control unit) +12V Battery...
- Page 13 SETTING UP THE MODULE IN VISOR To configure your VISOR software, you will need the module identifier. This is printed on a sticker on the top of the housing (e.g. ID: 00001). Make a note of this number. Click on the “Technique” (Technical) button and then “Configuration du site” (Site configuration). Under the unit your module is connected to, click on “Modules portes”...
-
Page 14: Fonctions Des Bornes
FONCTIONS DES BORNES Standby Standby Common Common Work Work Standby Standby Common Common Work Work +12V +12V Conditionnal entry CLOCK / DATA1 / A Door contact DATA / DATA0 /.B Push button Push button Door contact DATA / DATA0 / B Conditionnal entry CLOCK / DATA1 / A CLOCK / DATA1 / A... - Page 15 FREE INSTALLER HOTLINE DO YOU HAVE ANY TECHNICAL QUESTIONS? CONTACT OUR FREE HOTLINE...
