Operation Manual
Swimming Pool Reel System
61979
Illustration similar, may vary depending on model
Read and follow the operating instructions and safety information before using for the first time.
Technical changes reserved!
Due to further developments, illustrations, functioning steps, and technical data can differ insignificantly.
Updating the documentation
If you have suggestions for improvement or have found any irregularities, please contact us.
Advertisement
Related Manuals for XPOtool 61979
Summary of Contents for XPOtool 61979

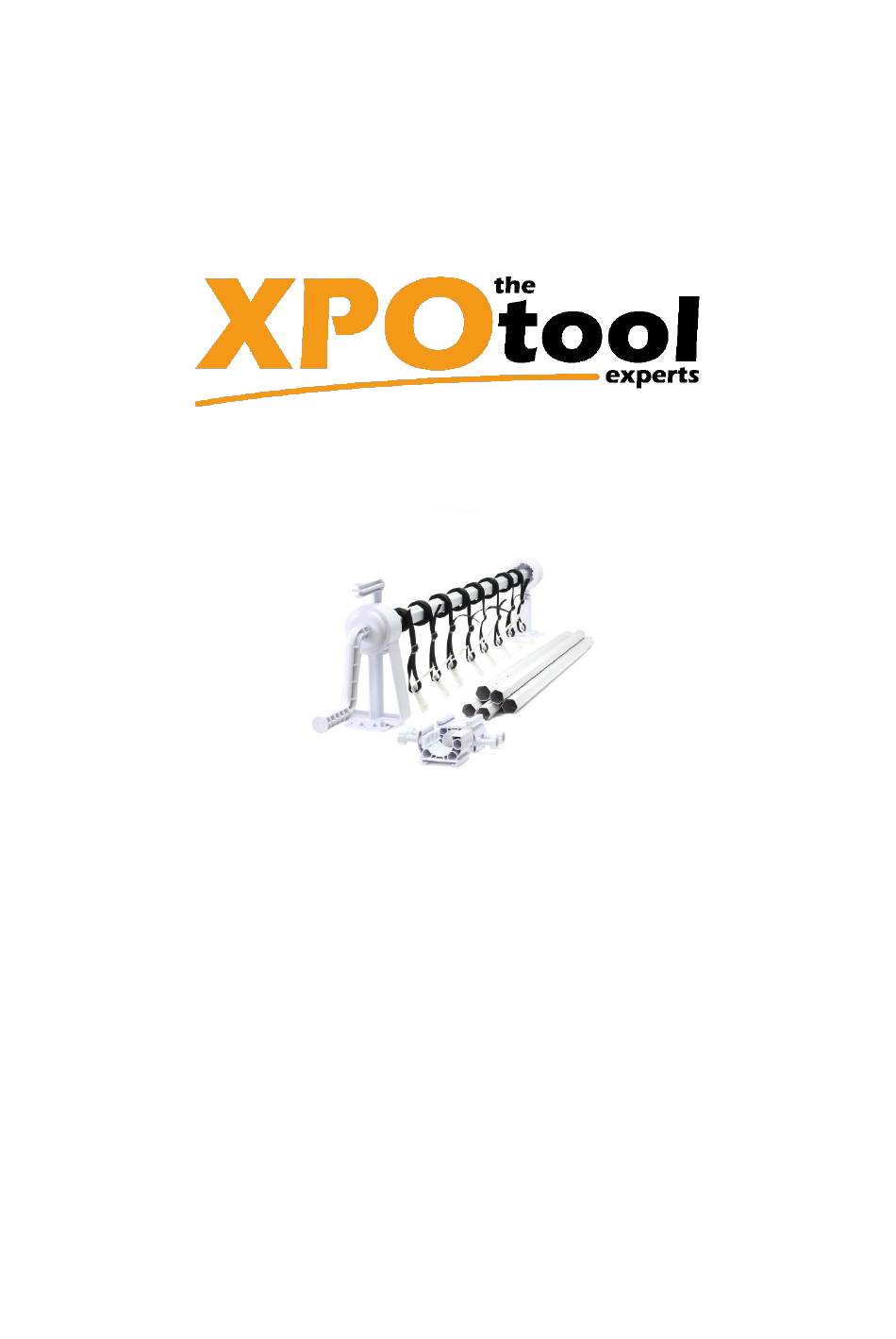

- Page 1 Operation Manual Swimming Pool Reel System 61979 Illustration similar, may vary depending on model Read and follow the operating instructions and safety information before using for the first time. Technical changes reserved! Due to further developments, illustrations, functioning steps, and technical data can differ insignificantly.
- Page 2 To allow for a smooth execution of your complaint or return, it is important to contact our customer service team before returning the goods. Returns Department WilTec Wildanger Technik GmbH Königsbenden 28 52249 Eschweiler E-mail: service@wiltec.info Tel: +49 2403 55592–0 Fax: +49 2403 55592–15 https://www.XPOtool.com Item 61979 Page 2 The Tool Experts 2022-1...
- Page 3 Clamp for pool edge Tapping screw (long) Tapping screw (short) Screw and nut Cylinder screw Small hexagonal tube Big hexagonal tube Adapter for hexagonal tube Tapping screw (short) – Pool cover (not included) https://www.XPOtool.com Item 61979 Page 3 The Tool Experts 2022-1...
- Page 4 3. For pools with a framework place K on the opposite sides of the frames, Place A and B on top of K and secure one of the sides permanently. Then position the other side on top of K, to measure the distance as previously mentioned. https://www.XPOtool.com Item 61979 Page 4 The Tool Experts 2022-1...
- Page 5 A and B. step To connect the connections between R and P/Q, fasten three screws of O into the pre-drilled holes of R as shown. A minimum overlap of 20 cm is required. https://www.XPOtool.com Item 61979 Page 5 The Tool Experts 2022-1...
- Page 6 The pre-drilled holes on the tubes of P/Q should be readily assembled and positioned onto the plug system of the reel seats of A and B. Then push the tubes onto the plug system of the reel seats of A and B. https://www.XPOtool.com Item 61979 Page 6 The Tool Experts 2022-1...
- Page 7 2. If it is required to adjust the length of the tubes, loosen the 3 screws O of R. Then adjust the length and fasten the screw O again. https://www.XPOtool.com Item 61979 Page 7 The Tool Experts 2022-1...
- Page 8 3. If it is required to adjust the length of the tubes, loosen the 3 screws O of R. Then adjust the length and fasten the screw O again. 4. Mount E, G and H as shown in the picture. https://www.XPOtool.com Item 61979 Page 8 The Tool Experts 2022-1...
- Page 9 Open the cover over the pool and position it. Attach the clamps H on the cover and makes sure to place them with regular distances. Ensure that the length of the belts enable the cover to lay flat on top of the pool, hindering any wind to get underneath the covering. https://www.XPOtool.com Item 61979 Page 9 The Tool Experts 2022-1...
- Page 10 Important notice: The reprint or reproduction, even of excerpts, and any commercial use, even in part, of this instruction manual require the written permission of WilTec Wildanger Technik GmbH. https://www.XPOtool.com Item 61979 Page 10 The Tool Experts 2022-1...
