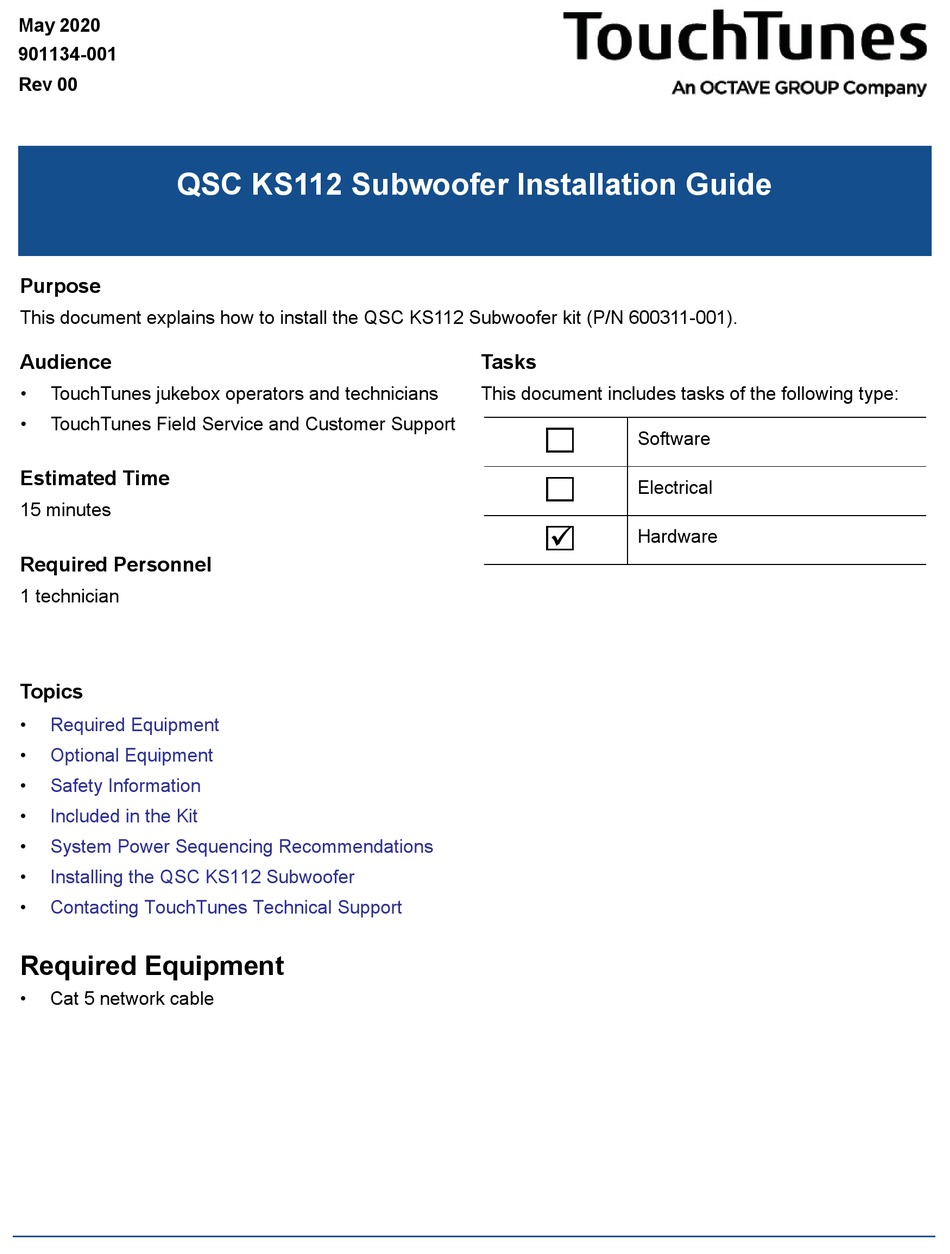

May 2020
901134-001
Rev 00
QSC KS112 Subwoofer Installation Guide
Purpose
This document explains how to install the QSC KS112 Subwoofer kit (P/N 600311-001).
Audience
•
TouchTunes jukebox operators and technicians
•
TouchTunes Field Service and Customer Support
Estimated Time
15 minutes
Required Personnel
1 technician
Topics
•
Required Equipment
•
•
•
•
•
•
Contacting TouchTunes Technical Support
Required Equipment
•
Cat 5 network cable
Tasks
This document includes tasks of the following type:
Software
Electrical
Hardware
Advertisement
Table of Contents
Related Manuals for TouchTunes QSC KS112
Summary of Contents for TouchTunes QSC KS112
- Page 1 May 2020 901134-001 Rev 00 QSC KS112 Subwoofer Installation Guide Purpose This document explains how to install the QSC KS112 Subwoofer kit (P/N 600311-001). Audience Tasks • TouchTunes jukebox operators and technicians This document includes tasks of the following type: •...
- Page 2 Ensure that you have received all the required parts before proceeding with this installation. Part Quantity TouchTunes Part # (P/N) Subwoofer KS112-NA (includes power cable and user manual) 700806-001 Cable, Hosa XRM105 XLR to RCA (5 ft) 300071-001 PER, Line-Out Interface, Blue 700168-002 QSC KS112 Subwoofer Installation Guide (this document) 901134-001...
- Page 3 Installing the QSC KS112 Subwoofer NOTE TouchTunes does not recommend wall mounting or suspending the subwoofer. 1. Press the MNGR button on the I/O Board to open the Operator interface. 2. Determine which Zone output you will be connecting the subwoofer on.
- Page 4 If you want to run the system in stereo, you must order a second XLR to RCA cable (P/N 300071-001) from TouchTunes. If you have a second XLR to RCA cable, omit the previous step (that is, do not set the speaker mode to “MONO”).
- Page 5 QSC KS112 Subwoofer Installation Guide Installing the QSC KS112 Subwoofer 9. Connect the Cat 5 cable to the blue DI box. Line-Out DI box - network connectors 10. Locate and unpack the Hosa XLR to RCA cable. Hosa XLR to RCA cable 11.
- Page 6 QSC KS112 Subwoofer Installation Guide Installing the QSC KS112 Subwoofer 15. Connect the power cable provided with the subwoofer to its back panel. Subwoofer power connection 16. Connect the other end of the power cable to an AC Mains. 17. Power the sound system back on if one was powered off in step 6.
- Page 7 The Octave Music Group, Inc. Technical Support 888-338-5853 7250 Mile End, Suite 202 850 Third Ave, 15th Floor www.touchtunes.com Montreal, Quebec, New York, NY 10022 Canada, H2R 3A4 Copyright © 2020 The Octave Music Group, Inc. (formerly known as TouchTunes Interactive Networks, Inc.)
