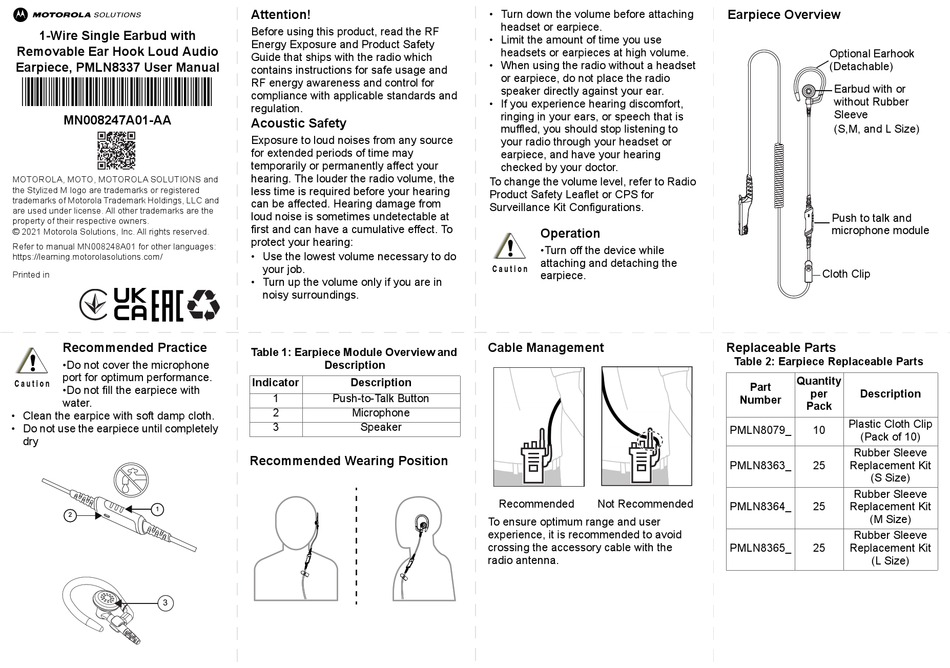

1-Wire Single Earbud with
Removable Ear Hook Loud Audio
Earpiece, PMLN8337 User Manual
*MN008247A01*
MN008247A01-AA
MOTOROLA, MOTO, MOTOROLA SOLUTIONS and
the Stylized M logo are trademarks or registered
trademarks of Motorola Trademark Holdings, LLC and
are used under license. All other trademarks are the
property of their respective owners.
© 2021 Motorola Solutions, Inc. All rights reserved.
Refer to manual MN008248A01 for other languages:
https://learning.motorolasolutions.com/
Printed in
Recommended Practice
!
•Do not cover the microphone
port for optimum performance.
C a u t i o n
•Do not fill the earpiece with
water.
• Clean the earpice with soft damp cloth.
• Do not use the earpiece until completely
dry
1
2
Attention!
Before using this product, read the RF
Energy Exposure and Product Safety
Guide that ships with the radio which
contains instructions for safe usage and
RF energy awareness and control for
compliance with applicable standards and
regulation.
Acoustic Safety
Exposure to loud noises from any source
for extended periods of time may
temporarily or permanently affect your
hearing. The louder the radio volume, the
less time is required before your hearing
can be affected. Hearing damage from
loud noise is sometimes undetectable at
first and can have a cumulative effect. To
protect your hearing:
• Use the lowest volume necessary to do
your job.
• Turn up the volume only if you are in
noisy surroundings.
Table 1: Earpiece Module Overview and
Description
Indicator Description
1 Push-to-Talk Button
2 Microphone
3 Speaker
Recommended Wearing Position
• Turn down the volume before attaching
headset or earpiece.
• Limit the amount of time you use
headsets or earpieces at high volume.
• When using the radio without a headset
or earpiece, do not place the radio
speaker directly against your ear.
• If you experience hearing discomfort,
ringing in your ears, or speech that is
muffled, you should stop listening to
your radio through your headset or
earpiece, and have your hearing
checked by your doctor.
To change the volume level, refer to Radio
Product Safety Leaflet or CPS for
Surveillance Kit Configurations.
Operation
!
•Turn off the device while
attaching and detaching the
C a u t i o n
earpiece.
Cable Management
Recommended Not Recommended
To ensure optimum range and user
experience, it is recommended to avoid
crossing the accessory cable with the
radio antenna.

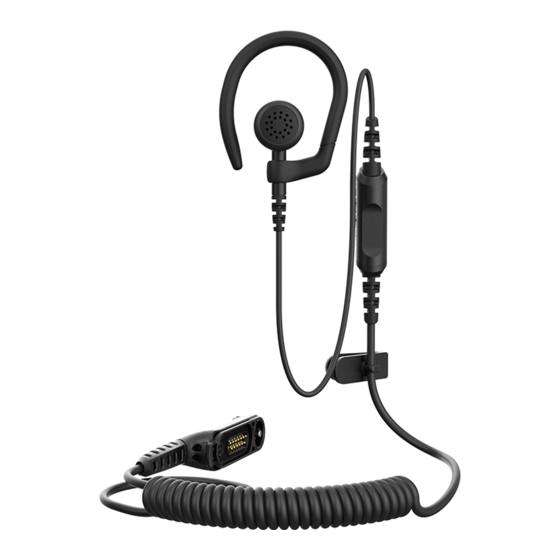

Earpiece Overview
Optional Earhook
(Detachable)
Earbud with or
without Rubber
Sleeve
(S,M, and L Size)
Push to talk and
microphone module
Cloth Clip
Replaceable Parts
Table 2: Earpiece Replaceable Parts
Quantity
Part
per Description
Number
Pack
Plastic Cloth Clip
PMLN8079_ 10
(Pack of 10)
Rubber Sleeve
PMLN8363_ 25 Replacement Kit
(S Size)
Rubber Sleeve
PMLN8364_ 25 Replacement Kit
(M Size)
Rubber Sleeve
PMLN8365_ 25 Replacement Kit
(L Size)
