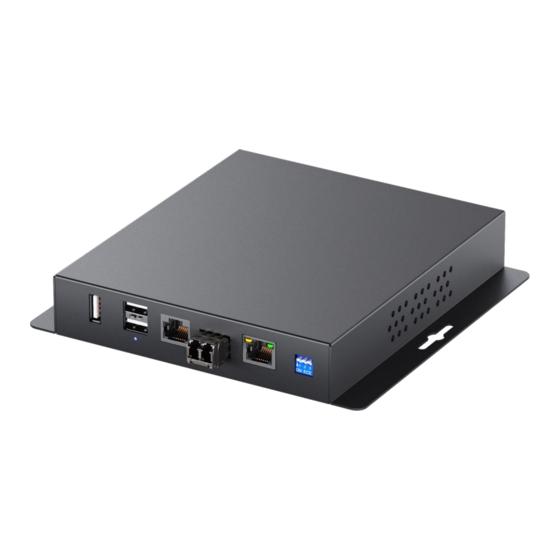

AVP-57FC-U
HDMI 2.0 over IP Multicast Transceiver System
with Bi-directional IR, RS-232, Audio Extender/Extractor,
USB 2.0 & Video Wall Support
User Manual
TABLE OF CONTENTS
INTRODUCTION ................................................................................................................. 1
FEATURES ......................................................................................................................... 1
PACKAGE CONTENTS ...................................................................................................... 2
CONNECTION DIAGRAM ................................................................................................... 2
SPECIFICATIONS .............................................................................................................. 3
PANEL DESCRIPTIONS ..................................................................................................... 4
IR PASS-THROUGH ........................................................................................................... 6
HDMI PIN DEFINITION ....................................................................................................... 7
OPERATION APPROACH .................................................................................................. 8
WARRANTY ..................................................................................................................... 14
rev: 210609
Made in Taiwan
Advertisement
Table of Contents
Summary of Contents for GoMax Electronics AVP-57FC-U
-
Page 1: Table Of Contents
AVP-57FC-U TABLE OF CONTENTS INTRODUCTION ......................... 1 FEATURES ......................... 1 HDMI 2.0 over IP Multicast Transceiver System PACKAGE CONTENTS ...................... 2 with Bi-directional IR, RS-232, Audio Extender/Extractor, CONNECTION DIAGRAM ....................2 SPECIFICATIONS ......................3 USB 2.0 & Video Wall Support PANEL DESCRIPTIONS ..................... -
Page 2: Introduction
PS4, PC, and any other HDMI sources to distant display / monitor, including HDMI or DVI enabled TV sets 1x User Manual or LCD PC monitors. Besides AVP-57FC-U is HDCP compliant, moreover it supports IR & RS-232 pass- through, audio extender/extractor, video wall and multi-view. With broadcasting management software and 10 Gigabit Ethernet network switch (supported IGMP... -
Page 3: Specifications
SPECIFICATIONS PANEL DESCRIPTIONS Front Panel Model Name AVP-57FC-U Technical Role of usage Transceiver HDMI compliance HDMI 2.0a HDCP compliance HDCP 2.2 & 1.4 Video bandwidth Single-link 594MHz [18Gbps] Video support 480i / 480p / 720p / 1080i / 1080p60 / 4K2K@30 / 4K2K@60 4:4:4 1. -
Page 4: Ir Pass-Through
IR PASS-THROUGH [IR Extenders] Rear Panel IR Blaster IR Receiver 9. +12V DC: Connect to a 12V power supply unit 10. Indicator LED: Power LED 11. IR Receiver: Infrared 3.5mm socket for plugging in the extension cable of IR receiver 12. -
Page 5: Hdmi Pin Definition
HDMI PIN DEFINITION OPERATION APPROACH Software Control through Ethernet port 1. System Requirement (1) OS information: Microsoft Windows XP/7/8/10 (2) Software size: 30MB (3) Minimum RAM requirement: 256MB 2. Start the software control program Type A (Receptacle) HDMI (1) Extract the Setup_AVP_AVX Control Tool.zip file and follow the installation wizard to install the software. - Page 6 Users can right-click on the decoder Device ID to adjust advanced settings. (3) HDMI Audio Reboot: reboot the device First, select the device ID to set HDMI audio modes, including audio from HDMI and I2S. Then Factory reset: restore the device to factory settings click “Start”...
- Page 7 (6) USB Routing (8) Firmware Update First, follow the Panel descriptions part to connect the computer, mouse or keyboard to USB 1.0 Firmware Update Process or 2.0 port. Select the device ID, then choose “USB 1.0” or “USB 2.0” according to the USB port Click “Browse”...
-
Page 8: Warranty
Click “Get Preset List” and the preset multiview mode will appear. Users can also enter the The SELLER warrants the AVP-57FC-U HDMI 2.0 over IP Multicast Transceiver System with Bi- name in the “Layout Group”, the screen size in the “Output Size”, and click “Create” on the directional IR, RS-232, Audio Extender/Extractor, USB 2.0 &...
