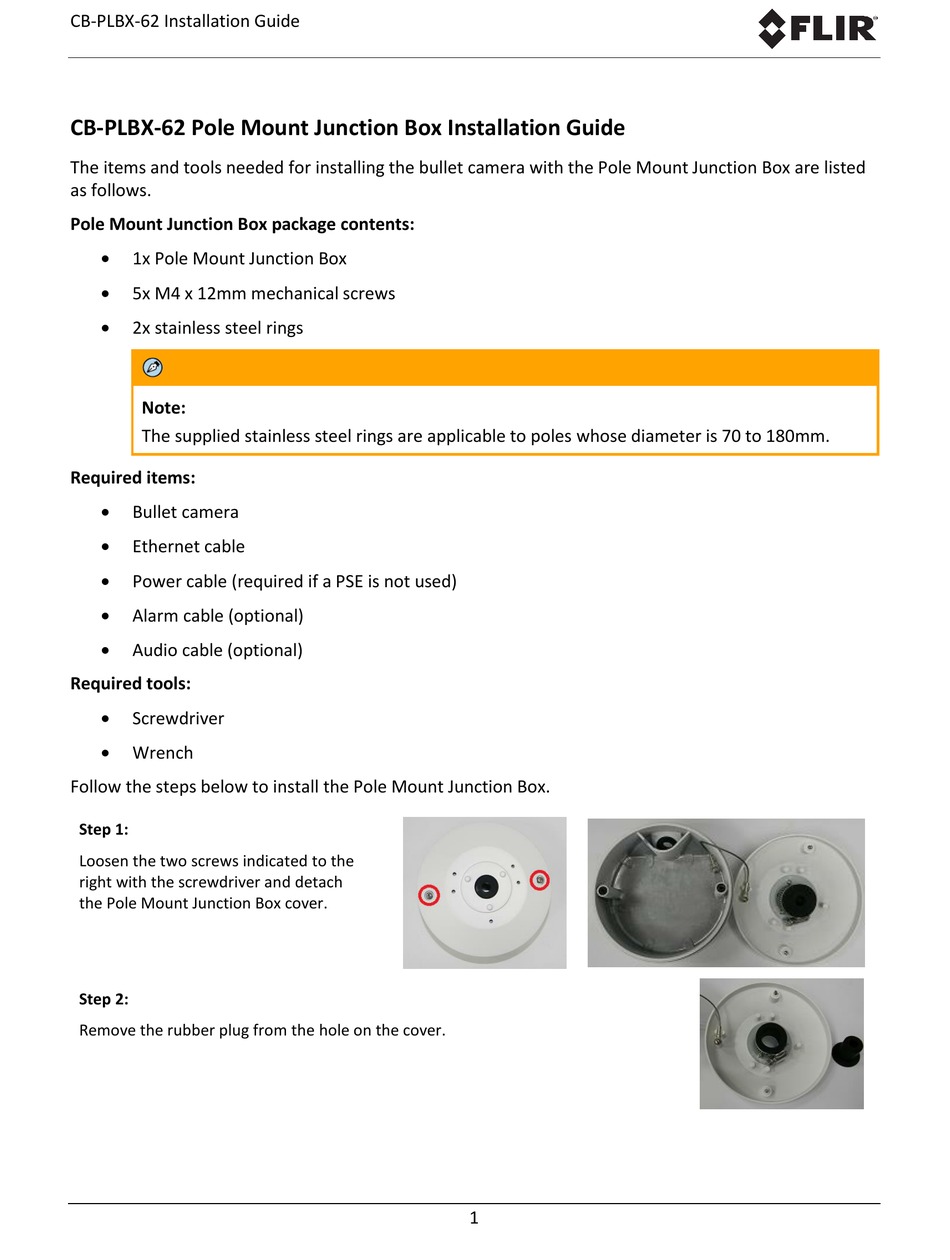

CB-PLBX-62 Installation Guide
CB-PLBX-62 Pole Mount Junction Box Installation Guide
The items and tools needed for installing the bullet camera with the Pole Mount Junction Box are listed
as follows.

Pole Mount Junction Box package contents:


1x Pole Mount Junction Box

5x M4 x 12mm mechanical screws

2x stainless steel rings
Note:
The supplied stainless steel rings are applicable to poles whose diameter is 70 to 180mm.

Required items:


Bullet camera

Ethernet cable

Power cable (required if a PSE is not used)

Alarm cable (optional)

Audio cable (optional)

Required tools:


Screwdriver

Wrench
Follow the steps below to install the Pole Mount Junction Box.

Step 1:

Loosen the two screws indicated to the
right with the screwdriver and detach
the Pole Mount Junction Box cover.

Step 2:

Remove the rubber plug from the hole on the cover.
