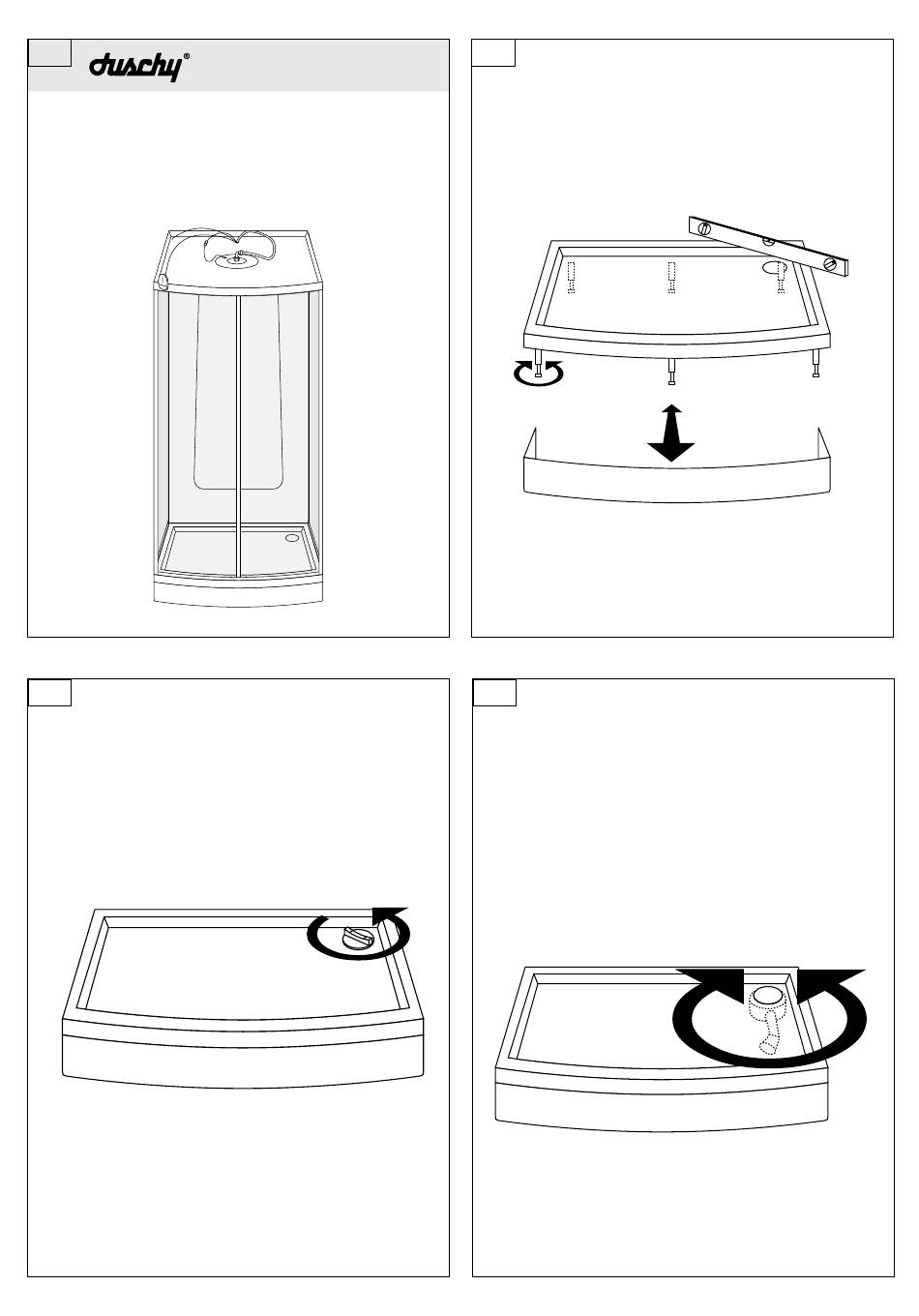

(UK) Installation manual for shower cabins and steam cabins (SE) Installationsmanual för duschkabiner och ångbastukabiner (EE) Paigaldusjuhend dusikabiin ja aurusaun 6030 6130 (UK) Unlock tray draining gutter. (UK) On the underside, point the drainpipe towards the draining gutter on the bathroom floor.
Page 2
(UK) Lock tray draining gutter. (UK) If needed, mount the extension pipe on the underside of tray. Cut it with a saw. Use silicone. (SE) Lås brunnen. (SE) På karets undersida, använd förlängnings (EE) Lukusta. röret vid behov. Kapa överflödig del av röret med såg.
Page 3
(UK) Put silicone on the backside of the cabin. (UK) Place back wall in its position. (SE) Lägg silikon mot kabinens baksida. (SE) Placera bakväggen i rätt läge. (EE) Asetage tagasein õigesse kohta ja silikoonige (pilt nr. 9). (UK) Fasten back wall at the bottom on backside. (UK) Fasten back wall on the backside edges.
Page 4
(UK) Mount the overhead shower connector on the roof. (SE) Montera takduschanslutningen på taket. (EE) Paigaldage dušiliitmik lae külge. (UK) Fasten roof on the backside. (SE) Skruva fast taket på kabinens baksida. (EE) Kinnitage lagi kruvidega tagaseina külge. Roof&Backward 4 pcs screw&nut 8 pcs gasket Roof&front: 2pcs screw&nut...
Page 5
(UK) Connect hot and cold water supply to the backside of the cabin. (SE) Anslut varm och kallvatten på kabinens baksida. (EE) Ühenda kabiini tagaküljel soe ja külm vesi. Page of 8...
Page 6
(UK) Power connection (UK) Orange antenna cable. for standard shower (SE) Orange antennkabel. cabins. (EE) Antenni kaabel. (SE) Anslutning av ström för vanliga duschkabiner. (EE) Elektriühendus tavalistele dušikabiinidele. (UK) Power connection for steam cabins. This should be done by a professional electrician.
Page 7
At service and warranty work that Duschy has (SE) OBSERVERA: För duschkabiner som inte har termostatblandare been called to, and where we note failure due to incorrect reglerar engreppsblandaren både vattenflöde och vattentemperatur.
