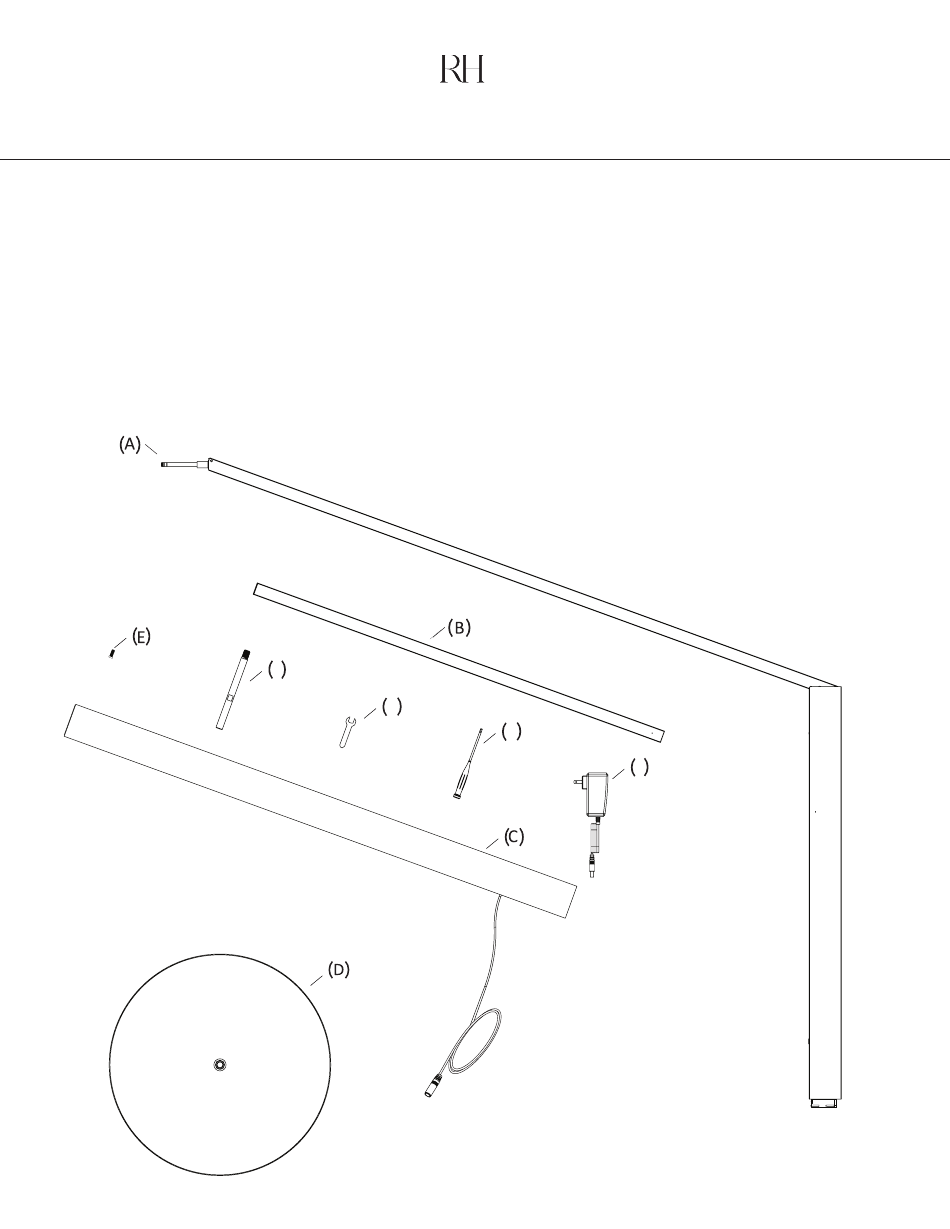

Z-BAR LED GRAND FLOOR LAMP PARTS ENCLOSED (A) Upper Lamp Body (1) (B) Head (1) (C) Lower Lamp Body (1) (D) Base (1) (E) Retaining Screw (1) (F) Base Pin (1) (G) Wrench (1) (H) Special Screwdriver (1) (I) Power Adaptor...
Z-BAR LED GRAND FLOOR LAMP ASSEMBLY & INSTALLATION 1. Screw the base pin (F) onto the base (D). Using the provided wrench (G), tighten the connection between the two. 2. Insert the lower lamp body (C) onto the base (D).
Page 3
Z-BAR LED GRAND FLOOR LAMP 4. After inserting the upper body (A) into the lower body (B), slide the upper body laterally towards the back side of the lamp until the upper body is flush with the lower body. 5. Using the provided special screwdriver (H), tighten the retaining screw (E) into the lower body (B) to secure the connection.
Page 4
Z-BAR LED GRAND FLOOR LAMP 6. Insert the LED head (B) onto the upper lamp body (A). 7. Connect the power cord from the lamp’s body (B) to the power adaptor (I), then plug it into an outlet. 8. Press the on/off button to turn on and off. Hold...
Z-BAR LED GRAND FLOOR LAMP IMPORTANT SAFETY INSTRUCTIONS All wires are connected. When unpacking, be careful not to pull wires, as a bad connection may result. Do not connect electricity until your fixture is fully assembled. WARNING: This product can expose you to lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm.
