Tii technologies 506F-01 Series Installation Notes

P/N 92235101 • Rev D • ECN 15-051 • 2/11/2015
Warranty: If this unit fails during the warranty period, contact tii customer service to authorize return. Unit may be returned prepaid.
Model 506F-01 Series
Fiber Interface Device
CAUTION: The Product shall be installed in a manner to comply with applicable national and local safety codes.
ATTENTION : Le produit doit
applicables en matière de sécurité.

Description

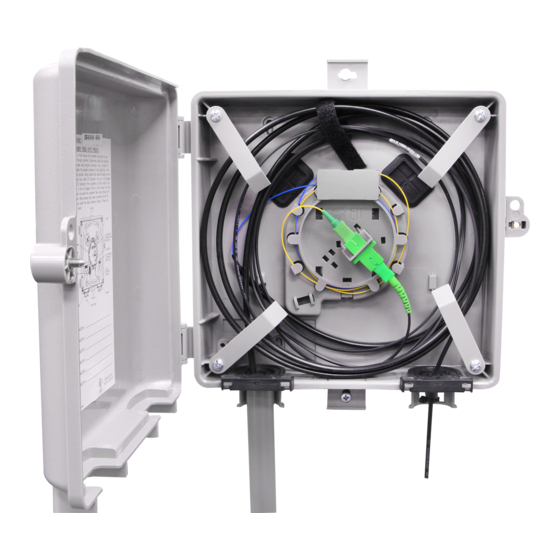

1. The TII 506F Fiber Optic Interface Device is a
compact fiber optic connectivity and fiber slack
storage enclosure.
2. The large split grommets located at the bottom
of the base allow Telco drop lines and
customer fiber cables to enter and exit the
device.
3. The TII 506F Series is supplied with SC
adapters to allow one to four fiber optic
connections.
4. The TII 506F allows for sufficient drop/fiber
cable slack storage in the base enclosure as
well as an additional slack tray that holds an
ample amount of customer fiber cable slack.

Features

Velcro Strain Relief Pad
w/ Velcro Supplied
Ground
stud
Optional
Telco Entry
cable entry
Grommet
clamp
Installation Note
être installé de manière à se conformer aux règlementations nationales et locales
Slack Retention
Fingers
SC Bulkhead
SC Adapter
Strain
Relief Pad
Customer
Strain Relief for
Exit Grommet
FTTX Connector
Figure 1

Installation

1. Mount the 506F Device so as to minimize the
2. 506F Devices mounted side-by-side or end-to-
3. Mount the 506F Device vertically on a flat
4. The internal mounting holes are covered with
5. In addition to the internal mounting holes
6. Ground the 506F Enclosure to a reliable earth
Slack Tray
7. You are now ready to place the drop/fiber
possibility of dirt or moisture getting into the
enclosure.
end should be placed so covers can easily be
opened.
surface using appropriate hardware (the
length of the mounting screws should allow for
1/8" of length within the enclosure).
a thin film of plastic, which are easily punched
out, to maintain the environmental integrity of
the enclosure (See Figure 2).
mentioned in step 4, there are external
mounting ears which are provided for exterior
mounting. Mount as previously stated using
the appropriate mounting hardware and
methods (See Figure 2).
ground.
cable slack into the enclosure and prepare for
Wiring.
