Summary of Contents for Giant Power GP-95L

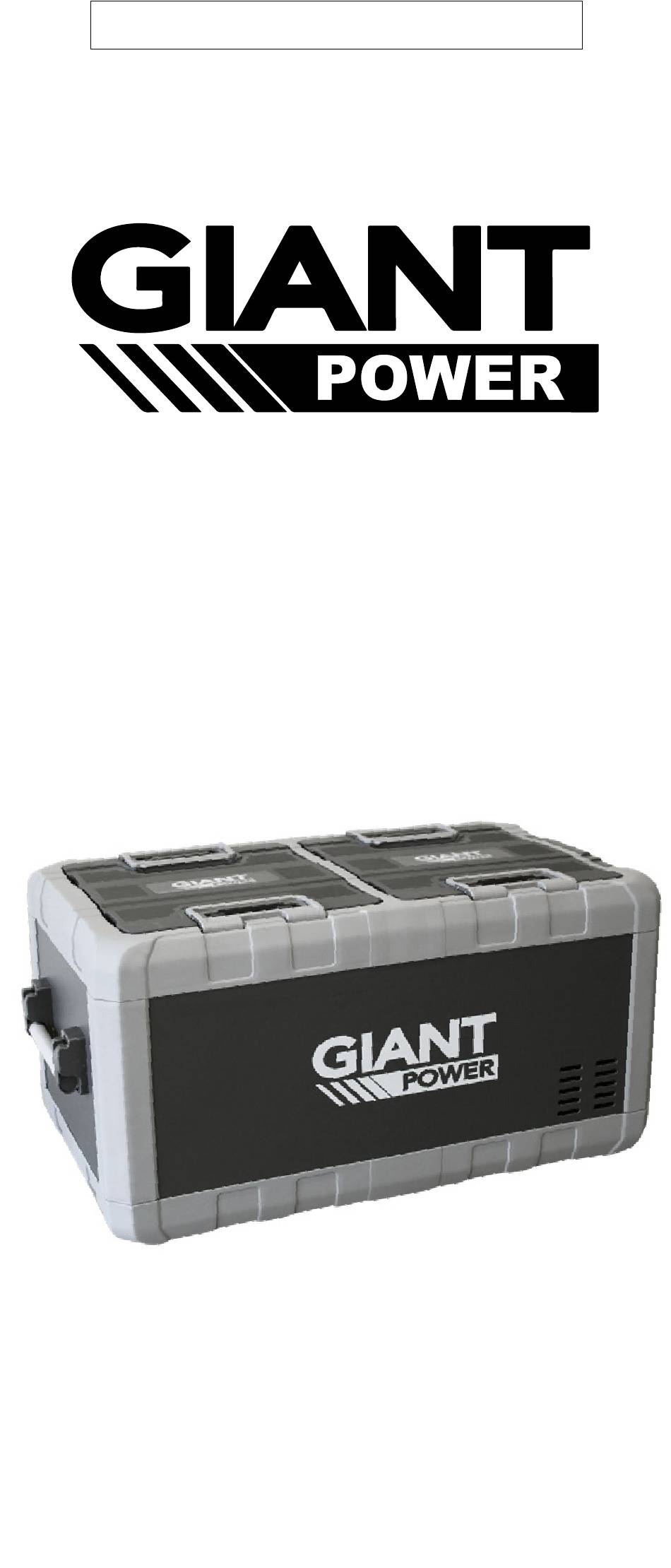

- Page 1 PLEASE READ THIS MANUAL BEFORE USE Owner’s Manual and Safety Instructions PORTABLE FRIDGE / FREEZER giantpower.com.au...
-
Page 2: Safety Information
INTRODUCTION Please be sure to read the following guidelines before using your Giant Power Portable Fridge/Freezer. Misuse may result in damage to the Portable Fridge/Freezer and/or cause harm or serious injury. This User Manual explains how to setup and safely operate your Portable Fridge/Freezer. If you are in any doubt with how to operate your Portable Fridge/Freezer contact the retailer where you purchased. -
Page 3: About Your Fridge/Freezer
ABOUT YOUR FRIDGE/FREEZER Storage room 1 Operation panel USB port Magnetic Handle Storage room 2 Air outlet Power socket PRODUCT FEATURES • T he freezer is suitable for cooling and freezing foods or drinks. • T he device is designed to be operated from a 12V DC or 24V DC on-board supply socket of a vehicle (e.g. cigarette lighter), boat or caravan as well as from a 100-240V AC mains. • T he cooling device is also intended to be used in household and similar applications. • U sing high efficiency compressor cooling and insulation materials without CFC free high efficiency compressor cooling and insulation materials. -
Page 4: Preparing Before Use
PREPARING BEFORE USE CLEANING Use a damp cloth to clean the fridge/freezer inside and outside before initial use. For cleaning specifics please refer to the ‘Cleaning and Maintenance’ section on page 10. For convenience the lids can be opened from two sides or completely removed by pressing the two lid latches simultaneously. HANDLES The handles do not come installed. Install the handles by following the below instructions. 1. Fix a left handle bracket onto the fridge with screws. 2. Then push the handle into the left handle bracket. 3. P ush the handle into a right handle bracket and screw the bracket into place. -
Page 5: Energy Saving Tips
ENERGY-SAVING TIPS • S elect a well-ventilated place and keep the freezer away from heat or direct sunlight. • C ool hot food before putting into the freezer. • D on’t frequently open the lid or keep it open for a long time. • D efrost in time when there is inner frost. • S et the temperature properly and reduce unnecessary low temperature setting. OPERATION AND FUNCTION CONNECTING TO POWER 12/24V 100-240V AC Socket DC Socket • S lide emergency switch to NORMAL USE position. -
Page 6: Setting The Temperature
TURNING ON THE FREEZER • A fter switching the power on, the power indicator icon will light up on the LCD display. The fridge/freezer is now in standby. • P ress the button three seconds continually, the LCD display will light up, the power indicator icon will extinguish. The digital display shows the current interior temperature, supply voltage and other setting parameters, icon indicates the fridge/freezer has start working. • T he shows the working status of the compressor, light up shows the compressor is working, extinguish shows the compressor has stopped working. CAUTION: Place the freezer in a well ventilated dry location, and check that the heat dissipation outlet is not blocked. - Page 7 The set-up parameters remain in memory when the fridge/ freezer is turned on again. When the fridge/freezer’s interior temperature reaches the setting temperatures, the compressor will stop operating. The power indicator light will turn an orange color. When the fridge/freezer is powered on the colour of the power indicator light shows the compressor status, green indicates working, orange indicates stopping. BATTERY PROTECTOR SETTING The device is equipped with a multi-level battery protector that protects your vehicle battery against excessive discharging when the device is connected to the on-board 12/24V supply. If the fridge/freezer is operated when the vehicle ignition is switched off, the fridge/freezer switches off automatically as soon as the supply voltage falls below a set level. The fridge/freezer will switch back on once the battery has been recharged to the restart voltage level.
-
Page 8: Emergency Mode
EMERGENCY MODE Emergency switch USB Port Normal use Emergency mode If the operating panel malfunctions, Emergency mode (EMERGENCY OVERRIDE) is applicable. Slide the Emergency switch to the EMERGENCY OVERRIDE position to start this function. In this mode, the temperature setting function is not available, refrigerating speed is down, and this mode is only for provisional use. During normal use, emergency mode is not applicable. Emergency mode is only used while the operating panel is malfunctioning. CAUTION: This mode is not suitable for long time food storage, if the switch is in the EMERGENCY OVERRIDE position, the freezer with full cooling capacity supercooled temperature may freeze the food. - Page 9 Voltage range of battery protector: Status Battery Medium High Power Supply protector Mode Mode Mode Cutting-off 10.1±0.3V 11.4±0.3V 11.8±0.3V Voltage DC 12V Restarting 11.1±0.3V 12.2±0.3V 12.6±0.3V Voltage Cutting-off 21.5±0.3V 24.1±0.3V 24.6±0.3V Voltage DC 24V Restarting 23.0±0.3V 25.3±0.3V 26.2±0.3V Voltage When the fridge/freezer is supplied by the auto starter battery, mode setting is proposed, so as to warrant that vehicle’s battery power is in high level. If you use additional battery for power supply, V mode setting is applicable.
-
Page 10: Cleaning And Maintenance
REPLACING FUSE AND THE INTERIOR LIGHT Follow the below steps for replacing the plug fuse (12/24V): • U nplug the DC power plug. • T urn the cap anticlockwise to remove. • R eplace the defective fuse with a new one that has the same rating 32V 10-15A. • T ighten the cap. WARNING: The rated current for the fuse should be within 10-15A, no less than 10A and Max is 15A. A fuse with rated current less than 10A will be easily burnt during compressor starting... -
Page 11: Troubleshooting
TROUBLESHOOTING The Error codes are depicted by a number on the LCD display. Fault code Reason Solution Check the input power. In most vehicles the engine No power input must be on to apply current to the Power cigarette lighter indicator Fuse burnt Change the fuse light is not on, fridge/ Refer to vehicle Vehicle-mounted freezer does operating manual to fuse burnt not work change the fuse... -
Page 12: Warranty Conditions
WARRANTY Full warranty information for your Giant Power Fridge/Freezer is available at the retailer you purchased your battery from. WARRANTY CONDITIONS • T he warranty period is not renewed or extended as a result of a warranty repair or replacement. • T he sales receipt for the product must be provided as a proof of purchase when a warranty claim is made • T he warranty is not transferable and is only offered to the original end user of the product.
