CARBON MONOXIDE ALARM USER MANUAL
ELECTROCHEMICAL CARBON MONOXIDE ALARM GS811-A
PRODUCT SPECIFICATIONS:
Power:
DC 4.5V(AA 1.5V*3) ba�ery operated
Opera�on Current:
< 40uA(standby), < 10mA (alarm)
Sensor Type:
Electrochemical
Alarm Volume:
≥85dB@3m alarm signal
OPERATION

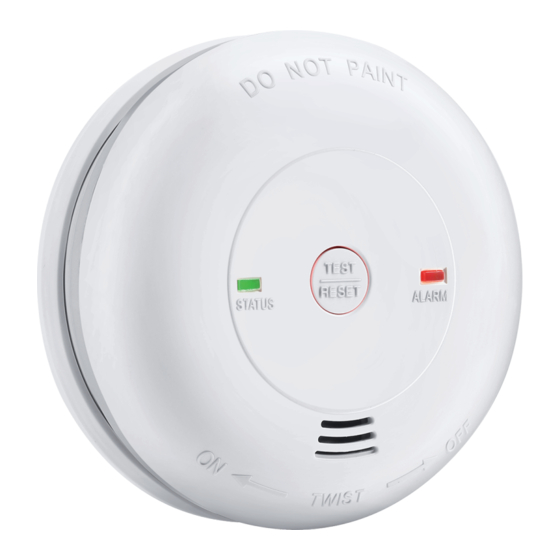

STATUS indicator: The STATUS indicator (green LED) is used to indicate work status of the CO alarm.
ALARM indicator: The ALARM indicator (red LED) is used to indicate alarm or warning status of the CO alarm.
TEST/RESET button: The TEST/RESET button is used to test the unit's electronics and to reset the unit during alarm.
Press and hold 0.5 seconds then release to enable the TEST/RESET button.
Start up state: When first power on, 30 seconds before the green light flash every 3 seconds, This is preheated state,
30 seconds later the green light flashing every 30 seconds indicates the unit is functioning properly
Normal operation: The green LED flashes every 30 seconds. It indicates the CO alarm is unit is functioning properly.
Malfunction warning: The red LED flashes and the horn chirps once every 35 seconds. It indicates the CO alarm is in
malfunction condition. Replace battery, if condition continues, the CO alarm has malfunctioned. Replace immediately.
The malfunction alarm will not respond CO.
Low battery voltage warning: The red LED flashes and the horn also chirps twice every 35 seconds. It indicates the
battery is low. You need to replace the battery
NOTE: The detector will not protect against the risk of carbon monoxide poisoning when the battery has drained.
End of life warning: The red LED flashes and the horn chirps 3 times every 35 seconds. It indicates end of life of CO
alarm. You need to replace the CO alarm immediately.
WARNING: After Seven(7) years from initial power up, the alarm will under the end of life warning model.
GS811-A
Product life:
Recommend ba�ery type:
Low ba�ery warning:
CO alarm silence:
7 years a�er ini�al power up
Energizer E91
Yes
about 5 minutes
Advertisement
Table of Contents
Summary of Contents for Status GS811-A
- Page 1 STATUS indicator: The STATUS indicator (green LED) is used to indicate work status of the CO alarm. ALARM indicator: The ALARM indicator (red LED) is used to indicate alarm or warning status of the CO alarm. TEST/RESET button: The TEST/RESET button is used to test the unit's electronics and to reset the unit during alarm.
- Page 2 CO alarm warning silence: When the alarm is in the CO alarm warning, enable the TEST/RESET button, it will come into silence status for 5 minutes, and the red LED still keep flashing until the silence mode is over. NOTE: The alarm signal will reenergized within 6 minutes from the time the TEST/RESET button is operated if the concentration of CO surrounding the alarm remains at 70ppm or greater.
