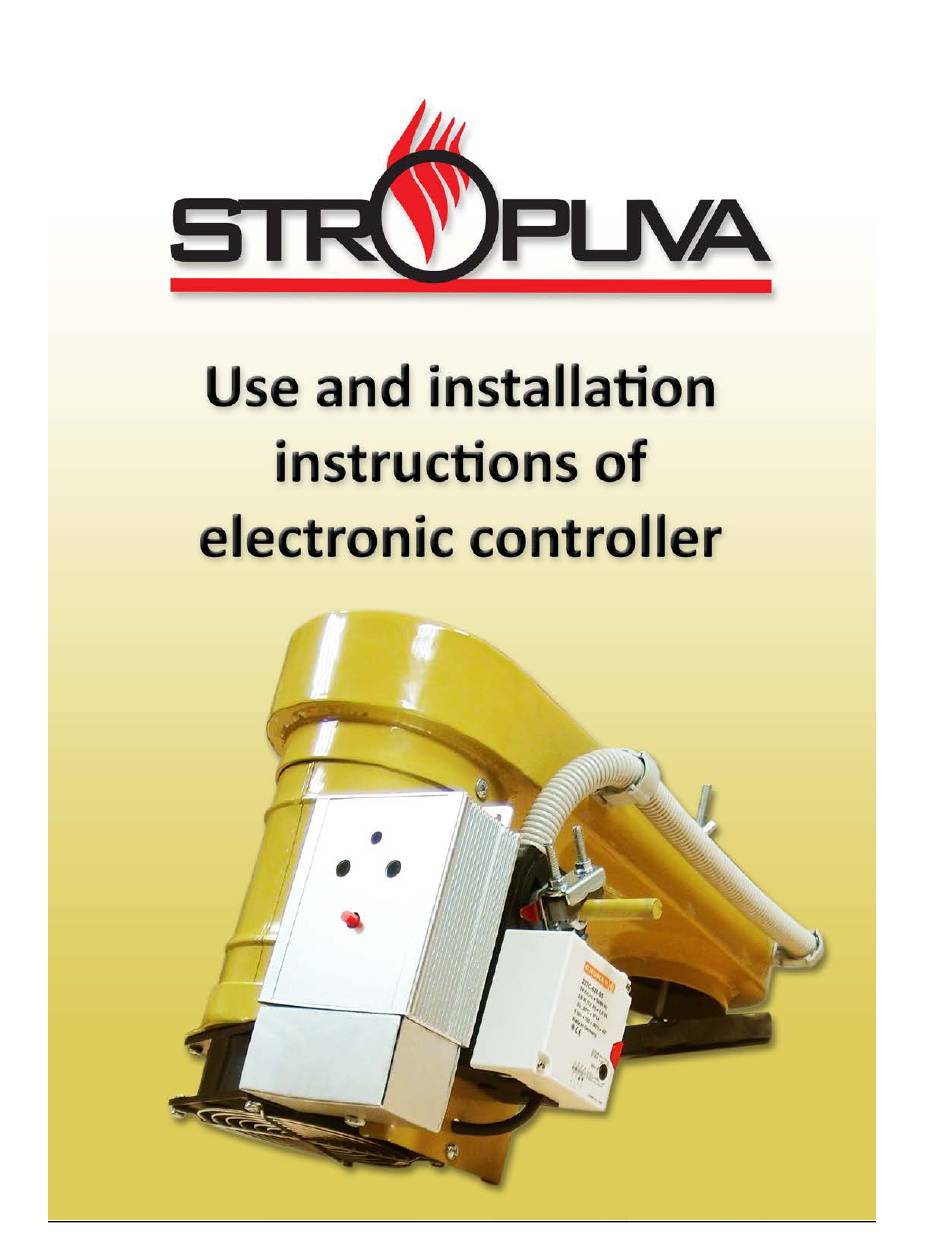

Summary of Contents for Stropuva LM35
-
Page 2: Table Of Contents
CONTENT SAFETY OF USE........................3 INSTALLATION RECOMMENDATIONS......................3 TECHNICAL DATA........................4 PURPOSE............................5 OPERATING PRINCIPLE..........................5 CONNECTION SCHEME......................6 CONSTRUCTION OF ELECTRONIC CONTROLLER...........................7 CONTROL PANEL........................8 INSTALLATION.........................9 USE OF CONTROL DEVICE....................13 PACKAGE CONTENT..........................13 WARRANTY CERTIFICATE....................14... -
Page 3: Safety Of Use
SAFETY OF USE • Before you start using the device, please carefully read this instruction. • This control device must be installed and connected by corresponding qualified person, who is familiar with the legislation governing safe use of electrical tools: General rules of the installation of electrical devices (Ţin., 2012, Nr. -
Page 4: Technical Data

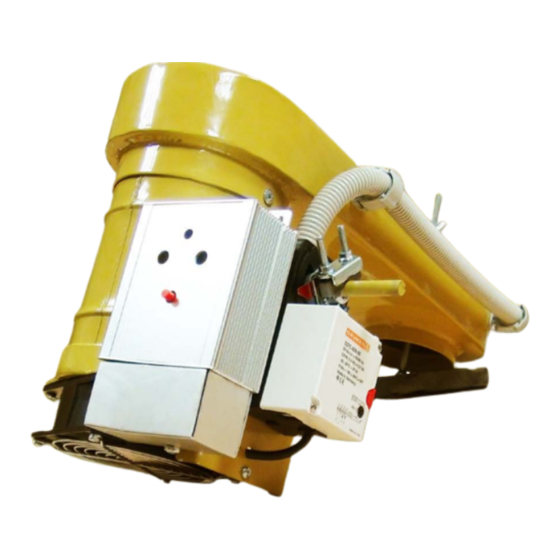

IP20 PURPOSE VAL-01 controller is an innovative microprocessor device, which regulates the work of solid fuel boiler Stropuva. The application of the control device and complex algorithms ensures easy use and automation of the combustion process. This control device is adapted for work with the central heating pump. This controller also has a possibility to connect with the room thermostat (not included in the kit), with the help of which you can change the operating parameters of the boiler, when the temperature of the premises reaches a certain temperature. -
Page 5: Operating Principle
OPERATING PRINCIPLE The device works on the principle of oxygen dosing. Oxygen is supplied through the fan and dosed by regulating the opening angle of the air shutter with the help of electric gear. In this way, combustion process is being controlled. When the hot water reaches the set temperature, the controller simply starts to maintain the temperature and depending on external parameters can top the combustion process from 10 minutes to 5 hours. -
Page 6: Construction Of Electronic Controller
CONSTRUCTION OF ELECTRONIC CONTROLLER... -
Page 7: Control Panel
CONTROL PANEL Pause switcher: Switcher of fuel types: 0 – 10 min 0 – wood: 1 – 30 min 1 – carbon 2 – 60 min 2 – peat briquettes 3 – wood sawdust briquettes 3 – 90 min 4 – wood sawdust granules 4 –... - Page 8 Operating modes of the indicator: Blue color lights – STOP mode. Air supply shutter is closed; ventilator does not work. In this mode, you can load the boiler with fuel and start it up. Red color lights – initial control. After starting up the boiler and fuel burning well, you have to unhook the ring of the line (lower air distributor on the fuel), press start/stop button START/STOP, wait 10-15 seconds until air supply shutter opens and close the door.
-
Page 9: Installation
INSTALLATION Fig. 1 Unscrew thermal regulator of the boiler “STROPUVA” and remove the air shutter. Fig. 2 Place the rubber seal on air preheating chamber Fig. 3 Place the holder inside the boiler... - Page 10 Fig 4. Screw the air supply channel to the top of the boiler Fig. 5 Attach the armor Fig. 6 Attach temperature sensor to the supply from the boiler...
- Page 11 Fig. 7 Attach temperature sensor with adhesive foil Fig. 8 Connect the central heating pump...
-
Page 12: Use Of Control Device
Fig. 9 Turn into the grid power Nr. 1 and power Nr. 2. You can use the controller without room thermostat – in such way 8-9 contacts are connected with a connector. If you use the controller with room thermostat – then remove the connector and increase the length of wires up to room thermostat installed in premises. -
Page 13: Warranty Certificate
WARRANTY CERTIFICATE JSC „Stropuva ir ko“, company’s code 300149972 , Address: Verkių str. 50, Vilnius, LT -09109, Lithuania PRODUCER: General phone.: +370 525 51763 Service phone: +370 650 15994 Model: Sale date/ Signature / Stamp SELLER: Sale date/ Signature /... - Page 14 Signature We provide electronic controller with 2 years of warranty JSC „Stropuva ir ko“, company’s code 300149972, Verkių str. 50, Vilnius, LT - 09109, Lithuania Phone +370 5 255 17 63, Mobile +370 656 08961; INSTALLATION, WARRANTY SERVICE , phone. +370 650 15994 www.stropuva.lt...
