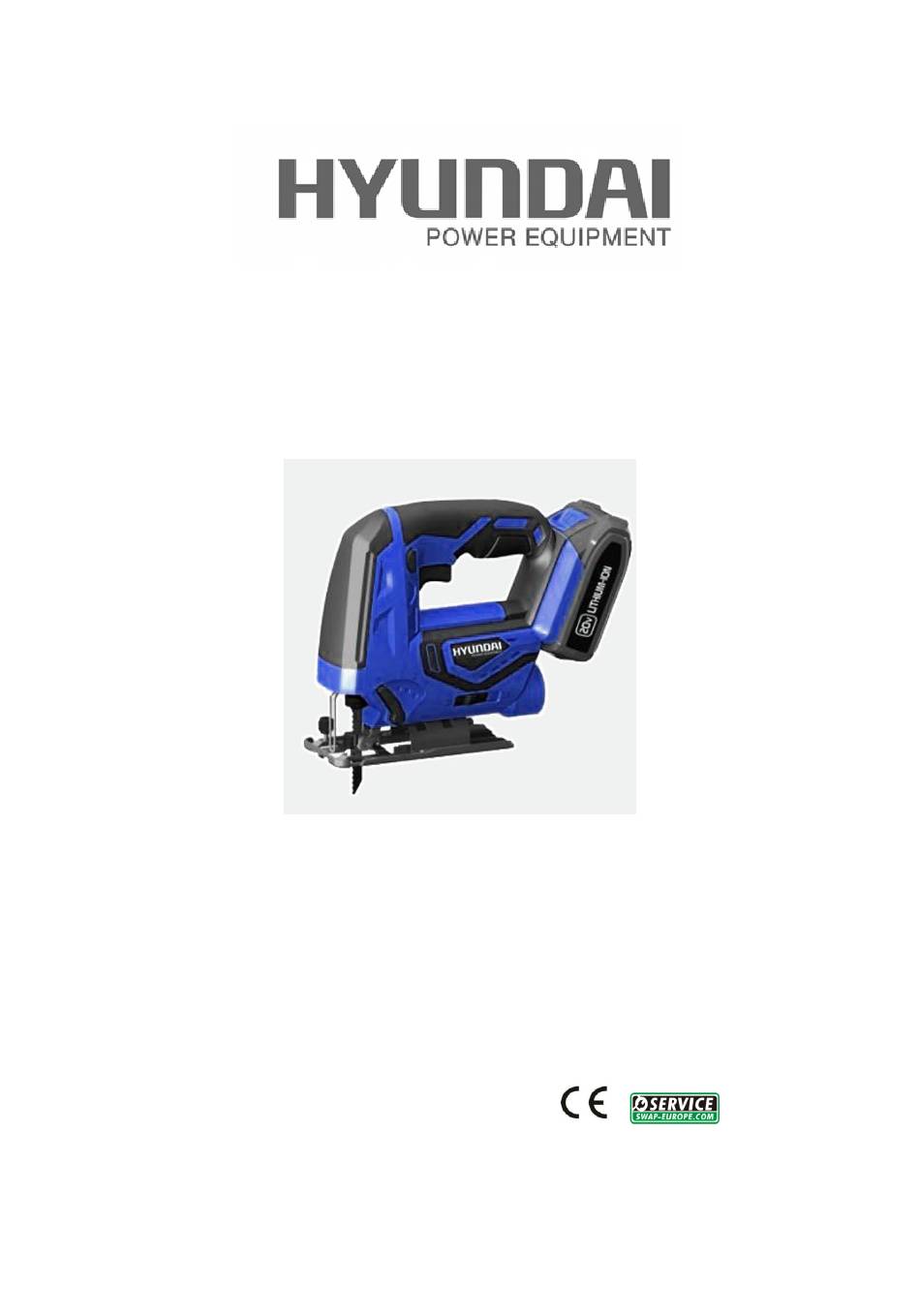

- Page 1 ORIGINAL INSTRUCTIONS Instruction Manual CORDLESS JIG SAW HSS20V CAUTION: READ THIS INSTRUCTION MANUAL BEFORE USE THIS MACHINE 32, rue Aristide Bergès - ZI 31270 Cugnaux – France MADE IN PRC 2018 Licensed by Hyundai Corporation, Korea １...
-
Page 2: Safety Instructions
1. SAFETY INSTRUCTIONS WARNING Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool. - Page 3 key left attached to a rotating part of the power tool may result in personal injury. e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations. f) Dress properly. Do not wear loose clothing or jeweler. Keep your hair, clothing and gloves away from moving parts.
- Page 4 6) Service a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained. Hold power tool by insulated gripping surfaces, when performing an operation where the cutting accessory may contact hidden wiring.
-
Page 5: Your Product
2. YOUR PRODUCT a. Description 1. Lock-off button 2. ON/OFF trigger 3. Handle 4. Battery release catch 5. Li-on battery 6. Dust extraction outlet 7. Wood cutting saw blade 8. Forward/rear air outlet ON/OFF 9. Angle scale 10. Saw base 11. - Page 6 14. Orbital adjustment knob A hexagon key is delivered with the tool b. Technical specifications voltage 20 V d.c. No load speed 0-2500/min Blade type T type blade Max cut in wood (mm) Max cut in steel (mm) Cutting angle / 30 LpA=76dB(A), Sound pressure level...
- Page 7 2. UTILISATION ７...
- Page 8 ８...
- Page 9 a. Charging HYUNDAI range battery and charger not sold together. Battery has not been fully charged at the factory. Before using it for the first time, charge the screwdriver's battery for 60min to 130min. Insert the charger plug into the charging socket and plug the charger into a 230V/50Hz electrical outlet.
- Page 10 c. INSTALLING JIGSAW BLADES Selecting the correct type of blade is important in order to obtain the best performance from the saw. Select the blade based on the application and on the material you wish to cut. Selecting the right blade will give you a smoother, faster cut and prolong the life of the blade.
- Page 11 ORBITAL MOTION The blade of the jigsaw cuts in an orbital motion. This feature is adjustable and provides faster, more efficient cutting. With orbital motion the blade cuts through your work in the upstroke but does not drag across your work in the down stroke. The higher settings should be used when fast cutting in soft material is desired.
-
Page 12: Circle Cutting
slide the switch to the left, Fig 14. n. CIRCLE CUTTING When starting a cut from the center of the work piece, drill a 12mm diameter hole to ensure that there is enough clearance for the blade. When cutting materials with a decorative or polished finish cover either the base of the jigsaw or the surface of the material being cut with masking or other suitable tape to prevent scratching. - Page 13 HYUNDAI ZI, 32 rue Aristide Bergès – 31270 Cugnaux – France Declare that the following machine: Cordless jig saw HSS20V Serial number: Is in conformity with the Directive Machine 2006/42/EC and with the regulation transposing it Also in conformity with the following Directives:...
