Pulsar DATASPLITTER Quick Start Manual

DATASPLITTER
DataSplitter
DataSplitter
INTRODUCTION
DATASPLITTER - 8 Way Universal Buffer/Splitter DC-PMX-DMX
The DataSplitter is an 8 Way Universal Buffer/Splitter for DC, PMX
(Pulsar MultipleX) and DMX (Digital MultipleX) making it suitable for
RS232, DMX512 and RS485 protocols. An input THRU socket for
connection to other devices or further DataSplitters is provided.
All 5 pin XLR inputs and outputs are protected against accidental
application of mains voltages and static.
All outputs are fully buffered, which means a fault on any output line
will not affect the other outputs.
The DataSplitter may be powered by a mains connection of between
100 and 230Vac.
Alternatively, the unit may be powered by a Low Voltage Supply of
+12...25Vdc to pin 5 of any of the 5 pin XLRs except IN.
The input and outputs have LED indicators, enabling the user to
check the status of the input and all outputs.

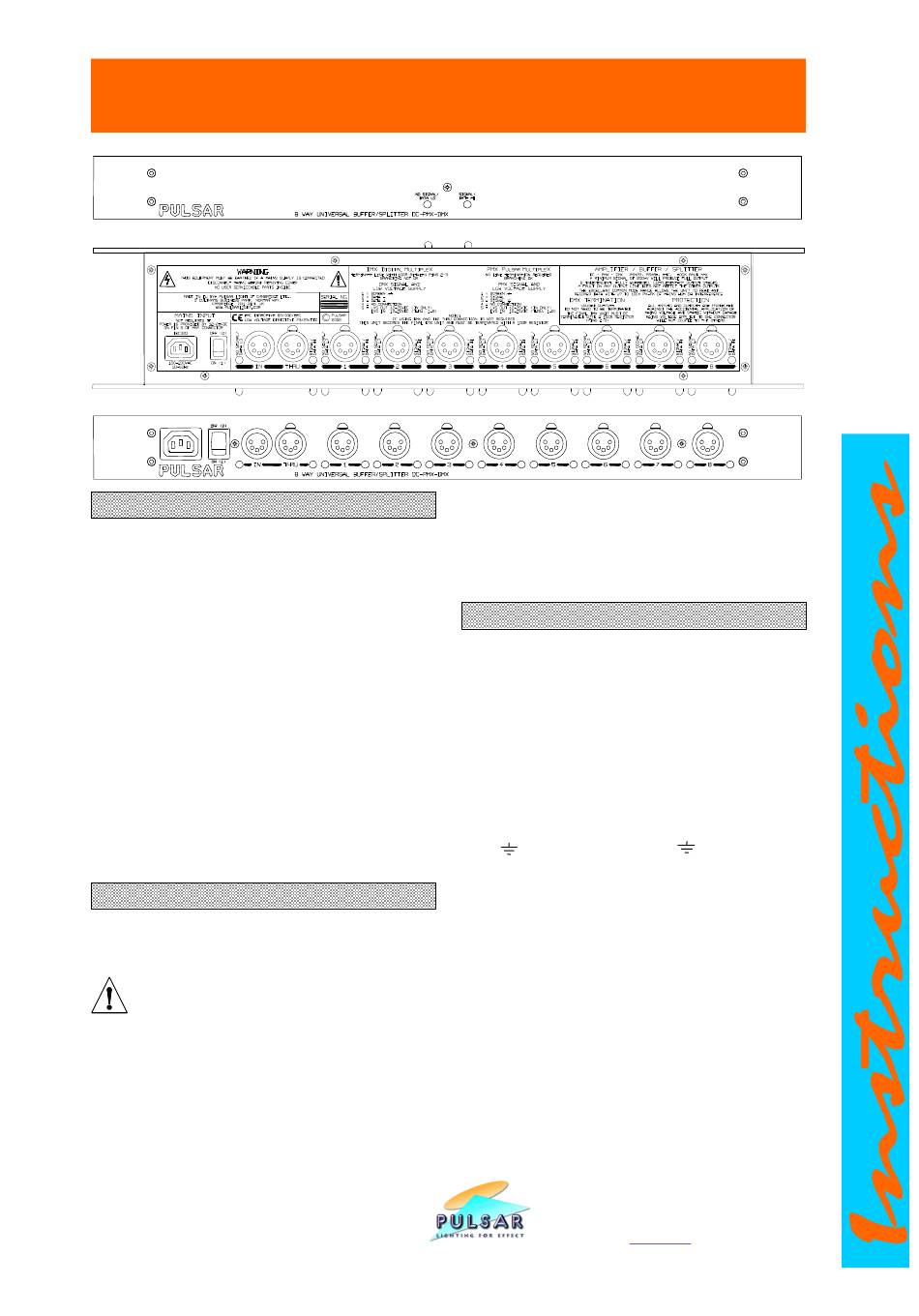

The DataSplitter has been designed with two front panels to allow the
unit to be rack mounted as a touring version (all inputs and outputs to
front for ease of connectivity), or as an installed version (all inputs and
outputs to rear to give an uncluttered front).
The DataSplitter may also be truss mounted using the M10 nutserts
fitted to the base.
MAINS OPERATION
This section is applicable if a Low Voltage Supply of +12...25Vdc @
100mA is not available on pin 5 of the THRU or any output XLR
socket.
SERVICE AND REPAIR
suitably skilled and competent persons. There are no user
serviceable parts inside. Where a mains connection is
used, the DataSplitter must be connected in accordance with current
local and national wiring regulations. If the DataSplitter is not installed
or operated according to this instruction leaflet then the protection
provided by the DataSplitter may be impaired.
WARNING - THIS APPLIANCE MUST BE EARTHED
IEC320 Mains Inlet Connector Voltage: 100 - 230Vac +/-10%,
single phase. There is no voltage selector - the electronics
automatically adjusts to the incoming voltage.
Pulsar Light of Cambridge Limited Coldhams Bu· siness Park
Mains Frequency: 48-62Hz
Power Consumption: The DataSplitter consumes less than 10W.
Fusing: A self-resetting solid state fuse is incorporated for minimal
maintenance.
Electronics On/Off switch with built in indicator neon controls the
mains power to the unit.
A Low Voltage Supply of +12...25Vdc @ 100mA is required if a
mains connection is not available. This supply can be connected to
pin 5 of the THRU or OUTPUT 1-8 XLRs.
This
Dimmer/Switching Pack or a Clay Paky Projector
Note: a Low Voltage Supply output is available on pin 5 of the IN
XLR to power other equipment.
LOW VOLTAGE SUPPLY AND DIGITAL CONNECTIONS
are made by using the 5 pin XLR sockets provided.
The connections are indicated on the lid and are:
PMX SIGNAL AND LV SUPPLY DMX SIGNAL AND LV SUPPLY
Pin 1 =
Pin 2 = Signal
Pin 3 = Signal Earth
Pin 4 = no connection
Pin 5 = Low Voltage Supply Out
Pin 5 = Low Voltage Supply In
must only be carried out by
Note:
Norman Way Cambridge CB1 3LH England
LOW VOLTAGE OPERATION
supply could come, for
Chassis Earth - Screen Pin 1 =
Pin 2 = Signal -
Pin 3 = Signal +
Pin 4 = no connection
Pin 5 = Low Voltage Supply Out
IN XLR only
Pin 5 = Low Voltage Supply In
THRU and 1-8 XLRs
• Pins 4 and 5 are occasionally used by other manufacturers for
data. We recommend the use of 2 core plus screen cable, leaving
pins 4 and 5 open circuit, to connect to this type of equipment.
However, the Low Voltage Supply, +12...25Vdc on pin 5 of the IN
XLR connector is current limited to cause no harm to such
equipment.
Tel: 44 (0)1223 403500 Fax: 44 (0)1223 403501 Email: sales@pulsarlight.com
example, from a Pulsar
Chassis Earth - Screen
IN XLR only
THRU and 1-8 XLRs
