  • Page 1 Clif Mock True-Cut R-Series Sample Receptacles User Manual Manual No. 20165019, Rev. A...

  • Page 2: Table Of Contents

    Table of Contents General Description ....................1 Installation and Operation ..................2 Maintenance ......................3 Trouble Shooting......................4 Pressure Venting....................4 Plugging ......................... 4 © 2004 NuFlo Technologies, Inc. All information contained in this publication is confidential and proprietary property of NuFlo Technologies, Inc. Any reproduction or use of these instructions, drawings, or photographs without the express written permission of an officer of NuFlo Technologies, Inc.

  • Page 3: General Description

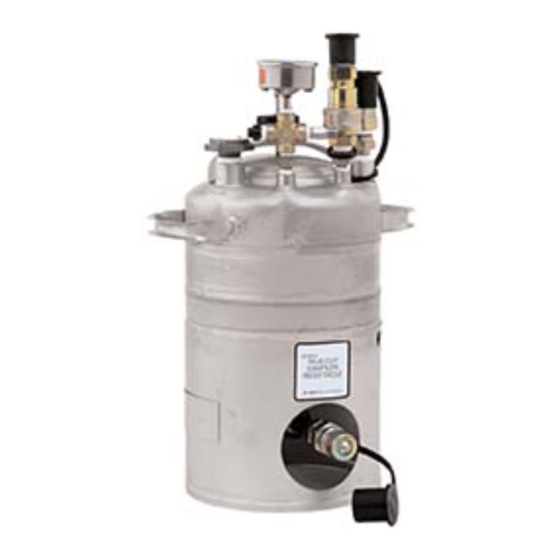

    General Description The R-Series receptacle provides for the safe, convenient storage and transportation of samples collected from the customer's pipeline. When an R-Series receptacle is used in combination with the Clif Mock M20-3 Mixing System, a sample can be collected, transported to a testing laboratory, and mixed in the same receptacle.

  • Page 4: Installation And Operation

    Components of the R-Series receptacles include: • a 316 stainless steel pressure-relief valve fixed at 5 psi • a 316 stainless steel vacuum relief valve fixed at 1 psi • a 316 stainless steel ¼-in. MNPT × ¼-in. MNPT manual vent valve •...

  • Page 5: Maintenance

    Figure 2—Hose connections for mixing a sample inside the receptacle with the M20-3 mixing system Maintenance Perform the following maintenance after each use of the R-Series receptacle. 1. After all the sampled liquid is withdrawn from the receptacle, clean the receptacle tank, the inlet, and the discharge with a solvent to prevent contamination of subsequent samples.

  • Page 6: Trouble Shooting

    Trouble Shooting Pressure Venting If the high level shut-off has stopped the flow to the receptacle and the pressure gauge does not return to "0" psi when the manual valve is opened, use extreme caution in opening the lid. The valve may be plugged or the gauge may be defective, and the receptacle may still be pressurized.
  • Page 7 BILL OF MATERIALS ITEM PART NO. DESCRIPTION 50142310075 ¾” Nose, QD 50142733002 R4-4 Tank, 304 SS (select from 50142381872 R8-4 Tank, 304 SS 3 sizes) 50142381770 R20-4 Tank, 304SS 50142302204 Downcomer, Tube 1.2”, SS 50142311046 High Level Shut-off 50142310079 ½” Coupler, QD Vacuum Lid 50142381040 Gauge, 0-60 psi, SS...
  • Page 8 M20-3 Mixing System July 2004...
  • Page 9 WARRANTY - LIMITATION OF LIABILITY: Seller warrants only title to the products, software, supplies and materials and that, except as to software, the same are free from defects in workmanship and materials for a period of one (1) year from the date of delivery. Seller does not warranty that software is free from error or that software will run in an uninterrupted fashion.
