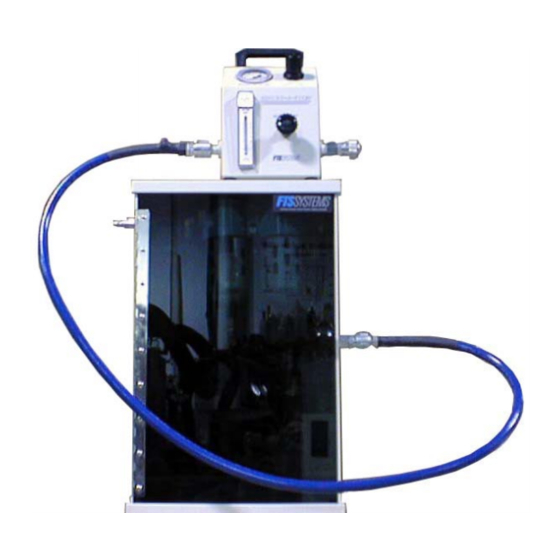

Summary of Contents for SP Scientific FTS SYSTEMS AD80 & AF6

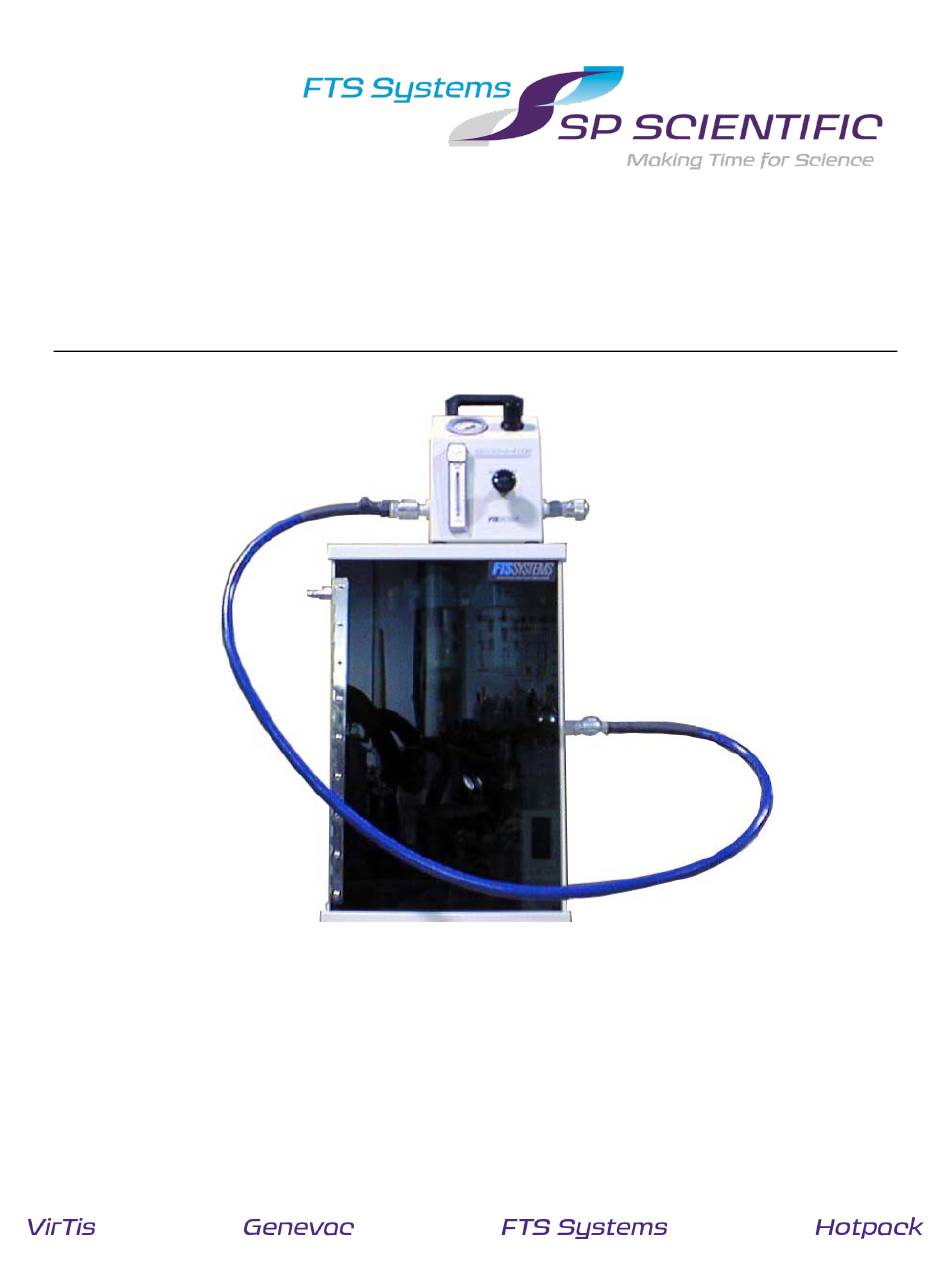

- Page 1 ’ EVICE PERATOR ANUAL FTS S AD80 & AF6 YSTEMS RYER AND EGULATOR...
- Page 3 The information in this document is subject to change without prior notice. Always confirm with SP Scientific that you are using the most current version of this document. SP Scientific is free to modify any of its products and services, in any manner and at any time, notwithstanding the information contained in this document.
-
Page 4: Important Symbols
Never operate equipment with damaged line cords. Never operate the unit without cooling fluid in the reservoir / bath chamber. Never remove warning labels. Never operate damaged or leaking equipment. Rev 004, 07/11 © SP Scientific 2011... -
Page 5: Warranty Information
Warranty Information FTS Systems AD80 & AF6 air dryers and air flow regulators are warranted by SP Scientific to be free of defects in material and workmanship when operated under normal conditions as specified in the instructions provided in this manual. - Page 6 Rev 004, 07/11 © SP Scientific 2011...
-
Page 7: Table Of Contents
Initial Inspection ..............................3 Setup ................................... 4 AD80 ................................4 Adding the AF6 ..............................5 Drop Filter Drains ..............................6 Operation ........................7 Adjusting the Air Flow ............................7 Maintenance ....................... 9 Maintenance ................................ 9 Rev 004, 07/11 © SP Scientific 2011... - Page 8 Contents FTS Systems AD80 & AF6 Rev 004, 07/11 © SP Scientific 2011...
-
Page 9: Introduction
‘dryness’ of the air that the AD80 delivers depends on the input pressure. An input pressure of 70 psi gives air with a dew point of -45°C. 100 psi input dries the air to a dew point of -85°C. These units will provide years of trouble-free service. Rev 004, 07/11 © SP Scientific 2011... - Page 10 Introduction FTS Systems AD80 & AF6 Rev 004, 07/11 © SP Scientific 2011...
-
Page 11: Installation And Startup
Should damage or loss be discovered, you may make a written request for inspection by the carrier's agent within 15 days of the delivery date. You may then file a claim with the freight carrier or SP Scientific, depending on the terms of your shipment. -
Page 12: Setup
Open the door on the AD80. Ensure the rocker power switch is in the OFF position. ( O ) Power Switch (in OFF position) Plug in the line cord. Rev 004, 07/11 © SP Scientific 2011... -
Page 13: Adding The Af6
Attach the shop air line to the INPUT of the AD80. Note: 70 psi input pressure delivers -45ºC dew point air. 100 psi input delivers -100ºC dew point air. Air Out Air In Rev 004, 07/11 © SP Scientific 2011... -
Page 14: Drop Filter Drains
Depending on the quality of the INPUT air, it may be necessary to put a container under the drain lines to capture excess water or oil trapped by the gross filters on the input air line. Rev 004, 07/11 © SP Scientific 2011... -
Page 15: Operation
Use the FLOW ADJUST knob to set the air flow to the desired level. Note: Every 30 seconds the AD80 makes a clicking noise as the heat-less dryer inside the unit switches from one cylinder to the other. This is normal operation. Rev 004, 07/11 © SP Scientific 2011... - Page 16 Operation FTS Systems AD80 & AF6 Rev 004, 07/11 © SP Scientific 2011...
-
Page 17: Maintenance
Once every six months of operation the indicator should be checked. It should be a bright blue color. If it is any other color, return the AD80 to SP Scientific Service to have the desiccant materials in the dryer repacked. - Page 18 Maintenance FTS Systems AD80 & AF6 Rev 004, 07/11 © SP Scientific 2011...
- Page 20 SP Scientific 815 State Route 208 Gardiner, NY 12525 USA 3538 Main Street Stone Ridge, NY 12484 USA www.SPScientific.com (800) 431-8232 (845) 255-5000...
